What Does a Burnt Fuse Look Like? Signs & Visual Guide

How do you tell if a fuse is burnt out?

Visual inspection of the fuse

The first step to determine if a fuse is burnt out is to inspect it visually. Remove the fuse from its holder and examine the glass tube or cartridge for visible signs of damage. A burnt-out fuse often shows darkening, discoloration, or black residue inside the glass, indicating a blown element. In some cases, you might see physical damage like cracks or melting. For cartridge fuses, check the end caps for warping or separation, which can signal failure. Always ensure the circuit is powered off before handling fuses to avoid injury.

Testing with a multimeter

For a definitive diagnosis, use a multimeter to test continuity. Set the meter to the continuity or resistance mode, then touch the probes to each end of the fuse. A working fuse will show low resistance (0–20 ohms) and may trigger an audible beep. If the reading is infinite resistance or "OL" (open circuit), the fuse is burnt out and needs replacement. Avoid testing a fuse while it’s still installed in the panel, as this can skew results.

Identifying circuit symptoms
A burnt-out fuse typically causes loss of power to the connected devices or circuits. For example, if a room’s outlets stop working or lights dim/flicker suddenly, a blown fuse may be the culprit. Check if the problem affects multiple appliances in the same area, which points to a central fuse failure. Unlike tripped circuit breakers, burnt fuses cannot be reset—they must be replaced entirely. If replacing the fuse doesn’t restore power, the issue may involve wiring or appliances, requiring further investigation.

Can you visually see a blown fuse?

Yes, you can often identify a blown fuse through visual inspection, but it depends on the type of fuse and its design. For example, cartridge fuses (common in older electrical systems) typically have a clear or translucent glass or plastic body. When blown, the thin wire inside may visibly break, showing a gap or darkening in the filament. Similarly, plug fuses in circuit breaker panels often have a small window where a broken or blackened wire indicates a fault. However, not all fuses show such clear visual cues, so further testing may still be required.

Visual signs of a blown fuse include:

• A broken or fractured wire visible inside the fuse body
• Dark spots or discoloration along the wire or glass casing
• Physical damage such as cracks or warping in the fuse casing

Some fuses hide damage from plain sight

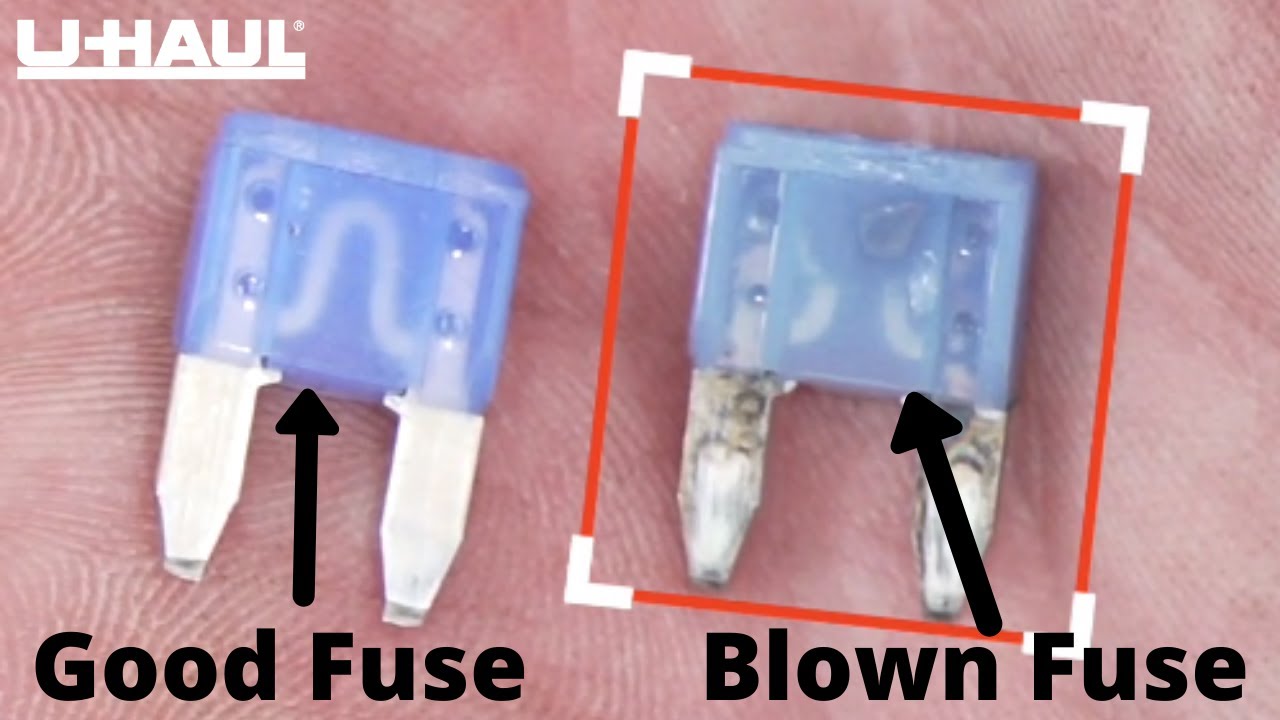

Modern fuses like resettable PTC fuses or certain automotive fuses may not show visible signs of failure. Their internal components might degrade without obvious external damage, requiring a multimeter to test continuity. Additionally, fuses in compact or sealed designs (e.g., blade-type car fuses) might only display subtle clues like a faint pop sound during failure or a burnt odor, which are not visual. Always cross-check with a voltage tester if visual inspection is inconclusive.

Certain types, like slow-blow fuses, might appear intact even when faulty due to their reinforced internal structure. In such cases, replacing the fuse or consulting an electrician ensures safety and proper functionality. Visual checks remain a starting point but are not foolproof for all fuse types.

Can a fuse be burnt but not blown?

A fuse is designed to intentionally melt (or "blow") when an electrical current exceeds its rated capacity, breaking the circuit to prevent damage. However, in some cases, a fuse may exhibit signs of burning without fully disconnecting the circuit. This can occur when the current flowing through the fuse is marginally higher than its rating, causing partial melting or discoloration of the metallic element inside. While the fuse hasn’t “blown” in the traditional sense—meaning the circuit remains live—the physical evidence of burning indicates it has been stressed beyond safe limits.

Signs of Partial Damage in Fuses

A fuse that is burnt but not blown might show visible cues such as:
- Discoloration: The metal wire or strip inside may turn black or oxidize.
- Localized damage: Small pits or thinning of the conductor.
- Burnt odor: A faint smell of overheating metal, even if the fuse hasn’t fully severed.
These signs suggest the fuse has been exposed to overcurrent events repeatedly, weakening its structure without reaching the threshold to断开 the circuit entirely.

Why This Happens and Risks Involved

Fuses have a rated current they can safely carry indefinitely. If currents slightly exceed this rating for extended periods, the fuse may degrade incrementally. Over time, this can reduce its ability to respond effectively to future overloads, creating a hazard. Even a partially burnt fuse is less reliable and may fail to protect the circuit during subsequent faults. Users should inspect fuses for visible damage and test continuity with a multimeter to confirm if the circuit is still intact, even if the fuse appears compromised.

Environmental factors like extreme heat or humidity can also accelerate degradation, leading to a fuse that shows physical signs of burning without tripping. In such cases, replacing the fuse is critical, as partial burning compromises its safety function and longevity.

What do blown fuses look like?

Visible Damage in Glass Cartridge Fuses:
Glass cartridge fuses often show clear physical signs when blown. Look for a darkened or blackened spot inside the glass tube, indicating where the internal wire or filament has melted or burned. The thin metal wire (called the element) may be visibly broken or separated, creating a gap that interrupts the flow of electricity. In some cases, you might see residue or debris inside the glass, which forms when the fuse overheats and the metal vaporizes.

Discoloration or Physical Damage on the Fuse Body:

Even in non-glass fuses (e.g., plug fuses or blade fuses), a blown fuse might exhibit outward signs. Check for:
- Discoloration on the plastic or metal casing, such as browning, charring, or scorch marks.
- Warped or melted plastic due to excessive heat.
- Cracks or splits in the fuse body, which can occur from thermal stress or physical trauma.
These signs often accompany internal damage that prevents the fuse from conducting current safely.

When Damage Isn’t Visible to the Eye:
Not all blown fuses show obvious physical damage. Some may appear intact but still fail to function. In such cases, use a multimeter to test continuity. A blown fuse will show infinite resistance (or “OL” on the meter), indicating a break in the circuit. Always compare it to a known working fuse for accurate diagnosis, as subtle issues like corroded contacts or internal degradation might not be visible without testing.

Signs in Circuit Breaker Panels:

In electrical panels, a blown breaker fuse might have a tripped indicator, such as a red dot or a shifted position, signaling it needs resetting. If the breaker itself appears intact, the issue could still be a blown fuse behind it, requiring removal and inspection for internal damage or discoloration.

Always prioritize safety: if unsure, replace the fuse or consult a licensed electrician to avoid electrical hazards.
