2002 Jeep Grand Cherokee Overland Turn Signal Relay Location Guide

Where is the turn signal switch relay located?

The turn signal switch relay is typically found in one of two main locations: the engine compartment’s fuse box or a secondary fuse/relay panel inside the vehicle’s cabin. The exact position varies by make and model, but most vehicles house this relay near other electrical components for easy access. It is often labeled or color-coded to distinguish it from other fuses and relays. Owners should consult their vehicle’s manual for the specific location, as misidentification can lead to electrical issues.

Under the hood: Common under-hood locations

In many cars, the turn signal relay is stored in the main fuse box located under the hood, often secured beneath a plastic cover. This box contains a diagram identifying each relay’s purpose. Look for labels such as “TURN SIGNAL,” “FLASHER,” or abbreviations like “FL” (short for flasher). Some vehicles may also have a smaller relay panel bolted to the firewall or fuse box, requiring a closer inspection.

Inside the cabin: Interior fuse/relay panels

Alternatively, the turn signal switch relay might be housed in an interior fuse panel, commonly located beneath the dashboard on the driver’s or passenger’s side. These panels are often accessed by removing a plastic cover or pulling a retaining clip. The relay here will follow the same labeling conventions as under-hood panels. In some cases, it may be grouped with relays for lighting or comfort features.

Identification tips:
- Check for a small, rectangular plastic case with metal contacts inside.
- The relay’s label or circuit diagram in the manual will specify its position.
- If the turn signals blink abnormally or fail to work, testing this relay is a critical first step in diagnosis.
Avoid assuming the location without verifying through the vehicle’s documentation to prevent confusion with similar-looking components.

Where is the turn signal fuse on a 2003 Jeep Grand Cherokee?

Locating the Fuse Box

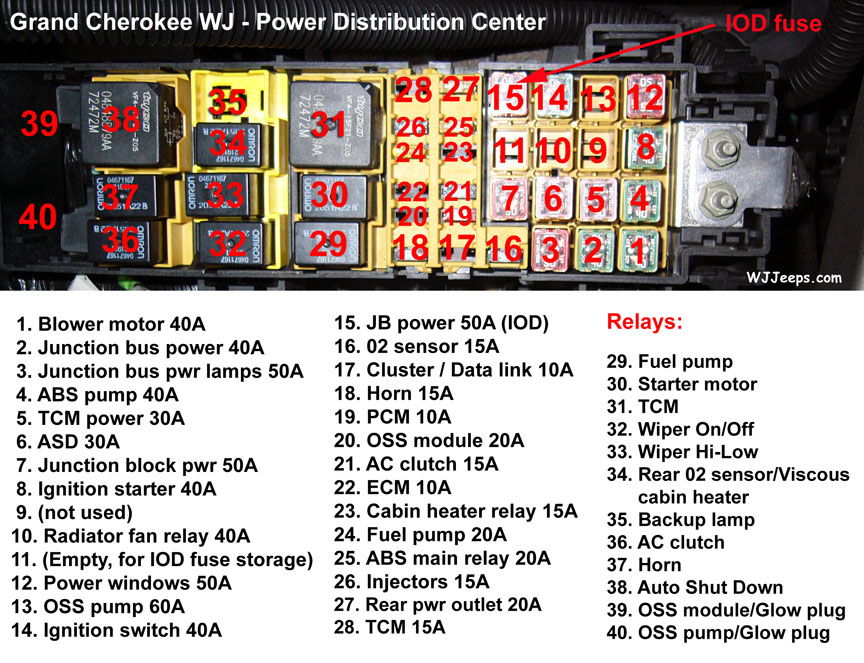

The turn signal fuse for a 2003 Jeep Grand Cherokee is typically found in the engine compartment fuse box, located on the driver’s side of the vehicle, under a plastic cover. To access it, open the hood and look for a rectangular plastic panel secured by clips or a latch. Lift the cover to reveal the fuse box and its corresponding lid, which should display a labeled diagram of all fuses and their functions.

Identifying the Turn Signal Fuse

Refer to the labeled diagram on the fuse box lid to locate the “TURN/FLASH” or “Hazard” fuse. The turn signal fuse is often labeled as Fuse #15 or #31, though exact numbering may vary slightly by model. Use a flashlight if needed to inspect the fuse for physical damage, such as a broken metal strip, which indicates it needs replacement.

Checking the Circuit Breaker (If Applicable)

In some cases, the turn signal issue might be caused by a circuit breaker instead of a blown fuse. The circuit breaker for the turn signals is often located in the engine compartment fuse box or on the driver’s side interior fuse/circuit breaker panel (under the dashboard). If the breaker is tripped, press it firmly to reset it. If the problem persists, consult the owner’s manual or a professional to avoid complications.

If the fuse is blown, replace it with an identical 15- or 30-amp fuse (check the diagram for the correct rating). Never substitute with a higher amperage fuse, as this can damage the electrical system. Always double-check the diagram to ensure accuracy before replacing components.

Are the flasher relay and turn signal relay the same?

The flasher relay and turn signal relay are terms often used interchangeably, but they serve distinct roles in a vehicle’s signaling system. The flasher relay is specifically responsible for controlling the blinking pattern of the turn signals. It cycles power to the turn signal bulbs at regular intervals, creating the characteristic “flash” effect. In many vehicles, this component is labeled as the “turn signal flasher,” which directly ties its function to the turn signals.

However, the turn signal relay may refer to a separate electrical component that activates the flasher relay when the turn signal lever is engaged. While the flasher relay manages the blinking rhythm, the turn signal relay acts as a switch, sending power from the battery to the flasher when the driver signals a turn. In some automotive systems, these two functions are combined into a single unit, leading to confusion between the terms.

Key differences arise in older vs. newer vehicles. In classic cars, the flasher relay is often a standalone unit under the hood, while modern vehicles may integrate these functions into a centralized control module. If a turn signal stops blinking, the issue could stem from either component, depending on the vehicle’s design. Mechanics often test both parts to diagnose problems, as their roles overlap but are not always identical. Always refer to the vehicle’s manual to confirm terminology and replacement procedures specific to your model.

What is the code P0320 on a 2002 Jeep Grand Cherokee?

The P0320 code in a 2002 Jeep Grand Cherokee indicates an issue with the camshaft position sensor or its associated circuit. This OBD-II trouble code specifically relates to the camshaft synchronization between the engine’s computer (ECM) and the actual position of the camshaft. When triggered, it typically means the system has detected a problem in the timing or communication between the sensor and the engine control module.

Potential Causes of P0320

Common causes of the P0320 code include:
- Failed or damaged camshaft position sensor (due to wear, corrosion, or loose connections).
- Electrical issues such as faulty wiring, corroded connectors, or short circuits in the sensor’s circuit.
- ECM malfunction or software glitch interfering with sensor signals.
- Camshaft timing chain or belt misalignment (less common but possible in severe cases).

Common Symptoms of P0320

Drivers may notice these symptoms when the P0320 code is active:
- Illuminated Check Engine Light.
- Rough idling or stalling, especially under low RPM.
- Reduced engine performance or hesitation during acceleration.
- In rare cases, the transmission may shift erratically due to timing misalignment.

Diagnostic Steps for P0320

To address the code:
1. Use a scan tool to retrieve and confirm the P0320 code.
2. Inspect the camshaft position sensor for physical damage or loose wiring.
3. Check sensor resistance and voltage using a multimeter.
4. Examine the wiring harness near the sensor for fraying or corrosion.
5. Test the ECM for stored freeze-frame data or internal faults.
6. If mechanical issues are suspected, verify camshaft timing alignment via the factory service manual.

Avoid assuming the sensor is the only culprit; electrical and ECM-related problems are equally likely. Always prioritize testing the simplest components first, such as wiring and connectors, before replacing the sensor or timing components.
