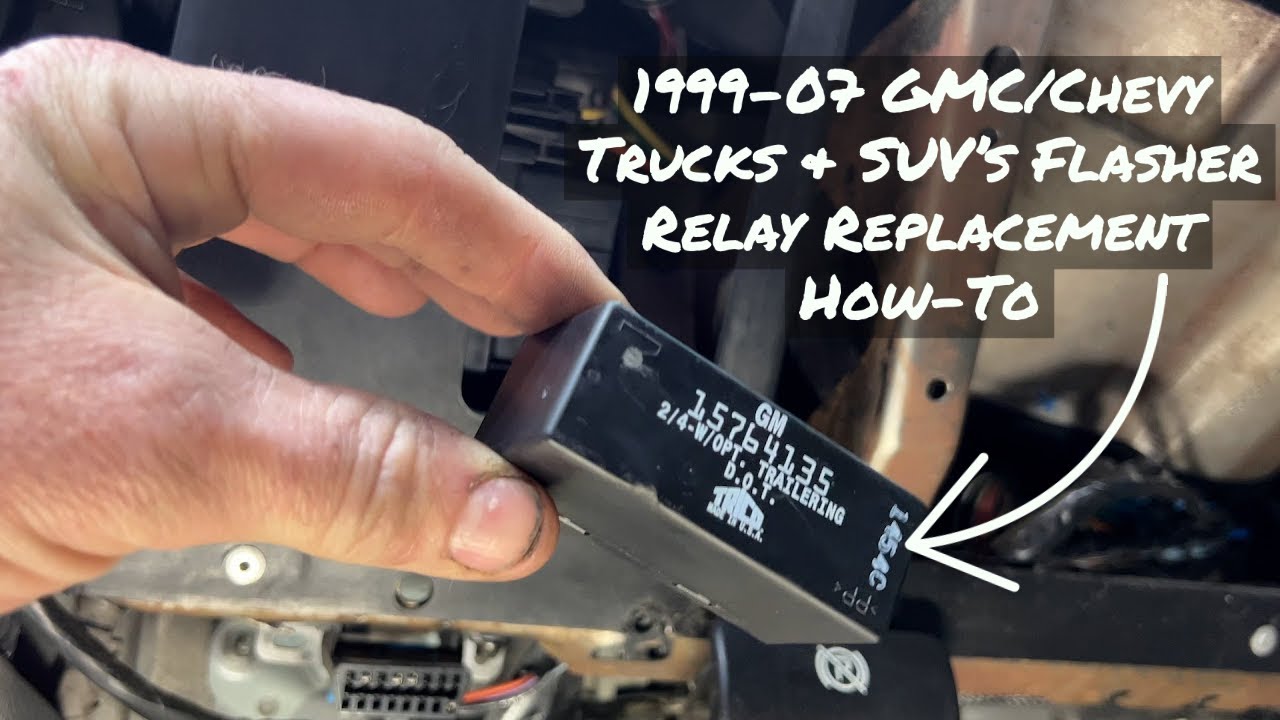

Where is the signal light relay located?

The location of the signal light relay can vary depending on the vehicle's make and model. In most cases, it is located in the engine compartment or under the dashboard. It's usually a small box or module with multiple wires connected to it. The signal light relay is often part of the vehicle's electrical system and is responsible for controlling the turn signals.

Common Locations

What are the symptoms of a bad turn signal relay?

Is there a relay for turn signals?

The turn signal system in a vehicle relies on a combination of components to function properly. One of the key components is the turn signal relay, also known as a flasher unit. The turn signal relay is responsible for controlling the flashing of the turn signals. It acts as an electrical switch, turning the turn signals on and off at a specific rate.

Location and Function

The location of the turn signal relay varies depending on the vehicle make and model. It can be found in the fuse box, under the dashboard, or in the engine compartment. The relay receives input from the turn signal switch and sends an electrical signal to the turn signal bulbs. The relay ensures that the turn signals flash at the correct rate and duration.

In some vehicles, the turn signal relay is a separate component, while in others it is integrated into the turn signal switch or the body control module (BCM). Symptoms of a faulty turn signal relay include turn signals that do not flash, flash erratically, or remain steady. If the relay fails, it can cause problems with the turn signal system, making it difficult to communicate with other drivers on the road.

Types of Turn Signal Relays

There are two main types of turn signal relays: electromechanical and electronic. Electromechanical relays use a physical switch and a electromagnet to control the turn signals, while electronic relays use solid-state electronics to perform the same function. Some common types of turn signal relays include:

• Thermal relays
• Electronic flasher units
• Digital turn signal modules

Where is the turn signal fuse on a 2003 Jeep Grand Cherokee?

The turn signal fuse on a 2003 Jeep Grand Cherokee is located in the Power Distribution Center (PDC) which is situated under the hood, on the driver's side. The PDC houses the majority of the fuses and relays for the vehicle.

Locating the Turn Signal Fuse

To find the turn signal fuse, you need to consult the fuse box diagram. In the case of a 2003 Jeep Grand Cherokee, the turn signal fuse is associated with the Hazard Flasher or Turn Signal Flasher.

The fuse box diagram should indicate which fuse corresponds to the turn signal. Typically, you can find this information in your owner's manual. If not, you can check the lid of the PDC or online resources for a diagram.

Some fuses you might come across in the PDC for a 2003 Jeep Grand Cherokee include:

• Fuse 1 - Horn
• Fuse 2 - Cigar Lighter
• Fuse 6 - Headlamp Washer Relay

The turn signal fuse might not be explicitly labeled; however, typically it is fuse 13 or 20 on a 2003 Jeep Grand Cherokee; consult your manual or PDC.
