2008 BMW E70 X5 Blend Door Actuator Location Guide

Understanding the Role of the Blend Door Actuator in the 2008 BMW E70 X5

The blend door actuator is a critical component in the climate control system of the 2008 BMW E70 X5. This small but essential device regulates the flow of air through the vehicles heating and cooling system, ensuring that the cabin maintains a comfortable temperature. The actuator controls the position of the blend door, which determines how much hot or cold air mixes before it enters the passenger compartment. Understanding its role can help owners diagnose issues related to temperature control and airflow.

Key Functions of the Blend Door Actuator:

• Temperature Regulation: The actuator adjusts the blend door to mix hot and cold air, providing the desired cabin temperature.
• Airflow Direction: It directs airflow to different zones within the vehicle, such as the dashboard vents, floor vents, or defroster.
• System Feedback: The actuator receives signals from the climate control system, responding to changes in temperature settings made by the driver.

In the 2008 BMW E70 X5, the blend door actuator operates through an electric motor, which allows for precise control over the blend doors position. When the driver adjusts the temperature setting via the climate control interface, the actuator responds by moving the blend door to the appropriate position. This ensures that the air entering the cabin is at the correct temperature, enhancing passenger comfort during every drive.

Issues with the blend door actuator can manifest as inconsistent cabin temperatures, strange noises from the dashboard, or air blowing from the wrong vents. Regular maintenance and awareness of the actuators role can help owners of the 2008 BMW E70 X5 ensure their climate control system functions optimally. If problems arise, timely diagnosis and repair of the blend door actuator can prevent further complications in the vehicles heating and cooling system.

Step-by-Step Guide to Locate the Blend Door Actuator in Your 2008 BMW E70 X5

Locating the blend door actuator in your 2008 BMW E70 X5 is essential for troubleshooting heating and cooling issues within your vehicle. The blend door actuator is responsible for controlling the flow of air through the HVAC system, allowing you to adjust the temperature inside the cabin. Follow this step-by-step guide to easily find the actuator.

Step 1: Gather Necessary Tools

Before you start, ensure you have the following tools on hand:

• Socket set - for removing panels and screws
• Screwdriver - to help detach any fasteners
• Flashlight - to illuminate dark areas
• Safety gloves - to protect your hands

Step 2: Remove the Glove Compartment

To access the blend door actuator, you first need to remove the glove compartment. Start by opening the glove box and locating the stops on either side. Gently press in on the sides to release the stops, allowing the glove compartment to drop down. Once it’s fully lowered, locate and remove any screws or clips holding the compartment in place. This will give you better access to the area behind the dashboard.

Step 3: Identify the Blend Door Actuator

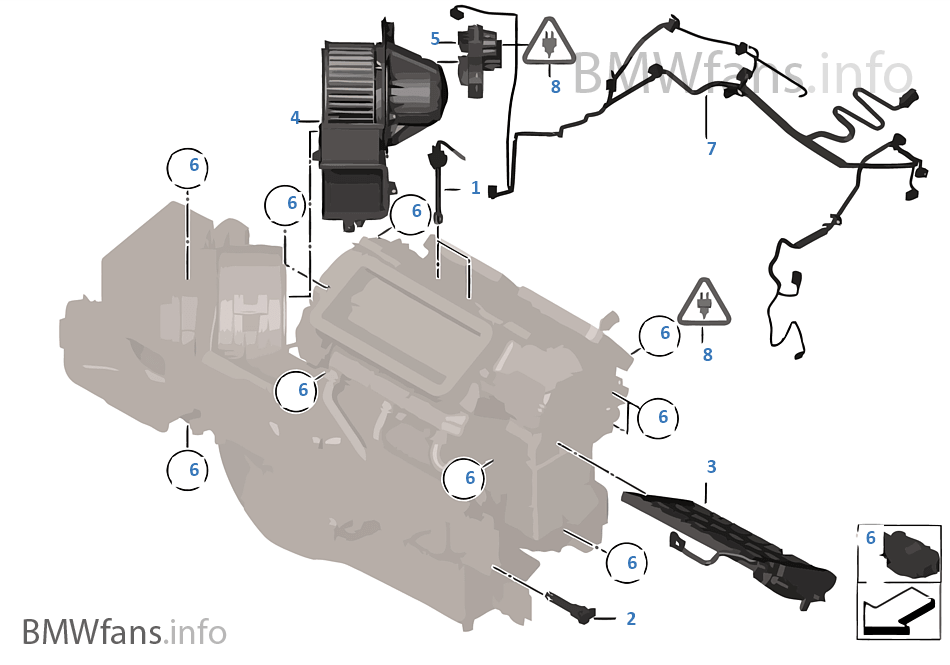

With the glove compartment removed, look towards the passenger side of the vehicle. The blend door actuator is typically located near the HVAC housing. It will resemble a small motor with an electrical connector attached to it. Carefully inspect the area, as it can be somewhat cramped. Using your flashlight can help illuminate the actuator and make it easier to identify.

Step 4: Disconnect the Actuator

Once youve located the blend door actuator, gently disconnect the electrical connector by pressing on the tab and pulling it away. If you need to remove the actuator for testing or replacement, use your socket set to remove the screws securing it to the HVAC assembly. Handle the actuator with care to avoid damaging any surrounding components.

Common Symptoms of a Failing Blend Door Actuator in the 2008 BMW E70 X5

The blend door actuator is a crucial component of the climate control system in the 2008 BMW E70 X5. When this actuator begins to fail, it can lead to several noticeable symptoms that can affect the overall comfort and functionality of your vehicles heating and air conditioning system. Understanding these symptoms can help you address potential issues before they escalate into more significant problems.

1. Inconsistent Temperature Control: One of the most common signs of a failing blend door actuator is inconsistent temperature output from the vents. Drivers may notice that one side of the vehicle blows hot air while the other side blows cold air, or that the temperature fluctuates unexpectedly. This inconsistency is often a direct result of the actuators inability to properly adjust the blend door, which controls the flow of heated and cooled air.

2. Unusual Noises: If you hear strange clicking or popping noises coming from the dashboard area, it could indicate that the blend door actuator is malfunctioning. These sounds often occur when the actuator is trying to adjust the blend door but is unable to do so due to a mechanical failure. Such noises can be quite bothersome and may signal that the actuator needs to be inspected or replaced.

3. Warning Lights: In some cases, a failing blend door actuator may trigger warning lights on your dashboard. The vehicles onboard diagnostics system may detect a malfunction in the climate control system and illuminate a warning light, indicating that further investigation is necessary. If you see this warning light, its essential to have the actuator checked as soon as possible to prevent further complications.

4. Poor Airflow: Another symptom to watch for is reduced airflow from the climate control vents. A failing blend door actuator can restrict the movement of the blend door, limiting the amount of air that flows through the system. This can lead to a noticeable decrease in the effectiveness of your heating and cooling, making it difficult to maintain a comfortable cabin temperature.

Tools You Will Need to Access the Blend Door Actuator in a 2008 BMW E70 X5

Accessing the blend door actuator in a 2008 BMW E70 X5 requires specific tools to ensure a smooth and efficient process. The blend door actuator is an essential component of the vehicles climate control system, and gaining access to it often involves navigating tight spaces and removing various interior panels. Below is a list of tools that will facilitate this task.

Essential Tools

• Socket Set: A metric socket set is crucial, particularly sizes 10mm and 13mm, to remove bolts securing the dashboard and other components.
• Screwdrivers: Both Phillips and flathead screwdrivers are necessary for removing screws from various panels and components.
• Trim Removal Tools: These plastic tools help in safely prying off trim pieces without damaging the surrounding surfaces.
• Flashlight: A bright flashlight will aid visibility in the cramped spaces behind the dashboard.

In addition to the essential tools listed above, having a few specialized tools can make the job even easier. For instance, a ratchet wrench can help navigate tight areas, while a magnetic pickup tool is useful for retrieving dropped screws or bolts in hard-to-reach places. A torque wrench is also recommended for reassembling components to ensure they are secured to the manufacturer’s specifications.

Safety Equipment

When working on your BMW E70 X5, safety should be a priority. It’s advisable to have the following safety equipment on hand:

• Safety Glasses: Protect your eyes from debris while working.
• Gloves: Wearing gloves can protect your hands from sharp edges and chemicals.
• Mat or Blanket: Placing a mat under the vehicle can prevent damage to the floor and provide comfort while working.

Equipping yourself with the right tools and safety gear will not only streamline the process of accessing the blend door actuator but also ensure that the job is completed safely and effectively.

Frequently Asked Questions About the 2008 BMW E70 X5 Blend Door Actuator Location

The blend door actuator in the 2008 BMW E70 X5 plays a crucial role in regulating the vehicles climate control system. Many owners often have questions regarding its location, which is essential for troubleshooting and maintenance. Understanding where to find the blend door actuator can save time and effort when dealing with heating and cooling issues in the vehicle.

Where is the blend door actuator located in the 2008 BMW E70 X5?
The blend door actuator is typically located behind the dashboard, specifically on the passenger side of the vehicle. To access it, you may need to remove the glove compartment and some surrounding panels. This location allows the actuator to effectively control the flow of air through the HVAC system, directing hot or cold air into the cabin as needed.

How can I identify a faulty blend door actuator?
Common symptoms of a malfunctioning blend door actuator include inconsistent temperature control, unusual noises from the dashboard, or air not reaching the desired temperature. If you notice these issues, it may be beneficial to inspect the actuators position to ensure its functioning properly. Many owners recommend consulting a professional if youre unsure about the diagnosis or repair process.

What tools do I need to access the blend door actuator?
To access the blend door actuator in the 2008 BMW E70 X5, youll typically need the following tools:

• Screwdriver set - For removing screws and panels
• Trim removal tool - To prevent damage to the dashboard while removing panels
• Flashlight - To see clearly in the tight spaces behind the dashboard

Having the right tools on hand will make the process of locating and inspecting the blend door actuator much more efficient.
