2009 Chrysler PT Cruiser Heater Core Lines: Complete Guide & Tips

What hoses are connected to the heater core?

The heater core is a vital component of your vehicles heating system, and it relies on the circulation of coolant to function effectively. There are typically two main hoses connected to the heater core: the inlet hose and the outlet hose. These hoses play a crucial role in transporting engine coolant to and from the heater core, allowing for the transfer of heat into the cabin of the vehicle.

1. Inlet Hose

The inlet hose is responsible for delivering hot coolant from the engine to the heater core. This hose is usually connected to the engines water pump or thermostat housing. As the engine operates, it heats up the coolant, which then travels through the inlet hose and enters the heater core. The hot coolant warms the air that is blown into the cabin, providing a comfortable environment for the passengers.

2. Outlet Hose

The outlet hose serves the opposite purpose; it carries the cooled coolant away from the heater core and back to the engines cooling system. After the coolant has circulated through the heater core and released its heat, it exits through the outlet hose. This return flow is essential for maintaining the overall efficiency of the vehicles cooling system, as it helps regulate the engines temperature and prevents overheating.

3. Additional Considerations

Both hoses are typically made of durable rubber or reinforced materials to withstand high temperatures and pressure. Over time, these hoses can wear out or develop leaks, which may lead to reduced heating efficiency or coolant loss. Regular inspection of the inlet and outlet hoses is recommended to ensure they are in good condition. Signs of wear may include cracking, swelling, or visible coolant leaks around the connections.

How much does it cost to replace a heater core in a PT Cruiser?

Replacing a heater core in a PT Cruiser can be a significant investment for vehicle owners, as it involves both parts and labor costs. On average, the total cost for this repair typically ranges from $900 to $1,200. This price can vary based on several factors, including labor rates in your area, the cost of the replacement part, and any additional repairs that may be necessary during the process.

When considering the breakdown of costs, the parts themselves usually account for approximately $150 to $300. The heater core is a critical component of the vehicles heating system, and purchasing a high-quality replacement is essential for optimal performance. It’s advisable to source parts from reputable suppliers or manufacturers to ensure longevity and reliability.

Labor costs are where the expense can escalate, often ranging from $700 to $900. This is primarily due to the labor-intensive nature of the replacement process, which may involve disassembling the dashboard and other components to access the heater core. Depending on the mechanic’s hourly rate, which can vary significantly by location, the total labor time may take anywhere from 4 to 8 hours.

In summary, while the cost to replace a heater core in a PT Cruiser can seem steep, it is essential to factor in both the quality of parts and the expertise of the technician performing the work. Regular maintenance and addressing any heating issues promptly can help mitigate the need for such repairs in the future.

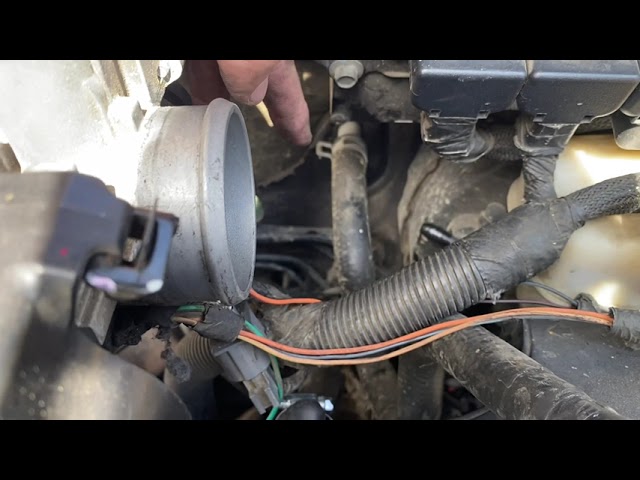

Where are the heater core hoses located?

The heater core hoses are crucial components of a vehicles heating system, responsible for circulating coolant to and from the heater core. These hoses are typically located in the engine compartment, connecting the engines cooling system to the heater core situated within the vehicles dashboard. Understanding their location is essential for maintenance and troubleshooting issues related to the heating system.

In most vehicles, the heater core hoses can be found:

• Near the firewall: The hoses usually run from the engine to the firewall, where the heater core is located. This area separates the engine compartment from the passenger cabin.
• Connected to the heater core: One hose is an inlet hose that carries hot coolant to the heater core, while the other is an outlet hose that returns the cooled coolant back to the engine.
• Alongside other hoses: They may be positioned near other cooling system components, such as the radiator hoses, making it important to distinguish them during inspections.

To identify the heater core hoses, look for two rubber hoses that are generally around 1 to 2 inches in diameter. They are typically secured with hose clamps and may have some insulation to protect them from heat and wear. The inlet hose will be warm to the touch when the engine is running, while the outlet hose will feel cooler as it returns the coolant back to the engine.

If you are attempting to locate the heater core hoses for maintenance or repairs, ensure that the engine is cool to avoid burns. Accessing these hoses might require moving other components or removing covers, depending on the make and model of the vehicle. Always refer to the vehicles service manual for precise locations and detailed instructions specific to your car.

What happens when a heater core hose breaks?

When a heater core hose breaks, it can lead to several significant issues that affect both the vehicles heating system and overall performance. The heater core plays a crucial role in circulating hot coolant to provide warmth to the cabin. A rupture in the hose interrupts this process, causing immediate and noticeable changes in how the vehicle operates.

One of the first signs of a broken heater core hose is a sudden loss of heat inside the vehicle. This occurs because the hot coolant cannot reach the heater core, which means the cabin will remain cold even when the engine is running. Additionally, you may notice a sweet smell inside the car, which is a telltale sign of leaking coolant. If left unaddressed, this can lead to further complications, such as overheating the engine or causing damage to other components.

Symptoms of a broken heater core hose include:

• Loss of heat in the cabin
• Visible coolant leaks under the vehicle
• Sweet odor inside the cabin
• Overheating engine

Moreover, the coolant leaking from the broken hose can lead to serious engine damage if it depletes the systems coolant levels. Low coolant levels can cause the engine to overheat, potentially leading to a blown head gasket or other severe mechanical failures. Therefore, its essential to address a broken heater core hose promptly to prevent further damage and ensure the vehicle remains safe and operational.
