4 Cycles of a 4-Stroke Engine Explained

What are the four steps to a 4-stroke engine?

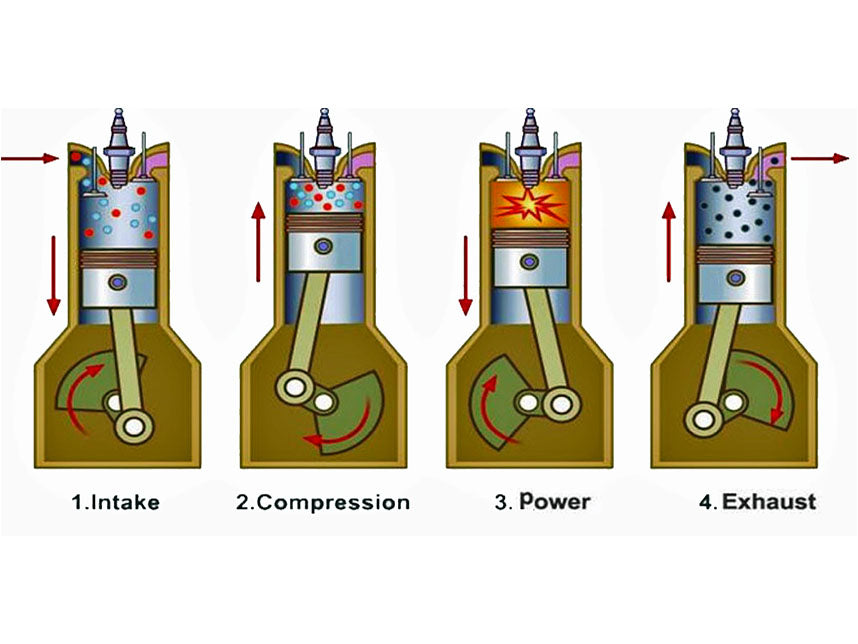

The 4-stroke engine relies on a precise sequence of four steps, or strokes, to convert fuel into mechanical energy. These steps—intake, compression, power, and exhaust—form the core of the Otto cycle, which powers vehicles, generators, and machinery. Each phase is critical for efficiency and combustion, ensuring smooth operation in engines like those found in cars and motorcycles.

1. Intake Stroke

During the intake stroke, the piston moves downward, creating a vacuum. The intake valve opens, allowing a precise mixture of air and fuel to flow into the combustion chamber. This step primes the engine by drawing in the necessary fuel-air blend to enable combustion in subsequent phases.

2. Compression Stroke

The compression stroke begins as the piston moves upward, closing both valves to trap the fuel-air mixture. This compresses the mixture into a smaller volume, increasing its pressure and temperature. The compression ratio (the ratio of cylinder volume at the start to end of this stroke) directly impacts engine power and efficiency.

3. Power Stroke

The power stroke is the engine’s working phase. Here, a spark plug (in gasoline engines) ignites the compressed fuel-air mixture, causing a controlled explosion. The resulting explosion forces the piston downward, transferring energy to the crankshaft via the connecting rod, which drives the vehicle or machinery.

4. Exhaust Stroke

Finally, the exhaust stroke clears the combustion chamber. The piston moves upward again, but this time the exhaust valve opens, pushing spent combustion gases out. Once completed, the intake valve reopens, resetting the cycle for the next intake stroke. This repetitive process sustains continuous operation, making 4-stroke engines reliable for long-term use.

Is 4 cycle the same as 4-stroke?

Yes, 4-cycle and 4-stroke refer to the same type of internal combustion engine. The terms are used interchangeably to describe an engine that completes its power cycle in four distinct stages, or strokes: intake, compression, power, and exhaust. This design is common in modern motorcycles, automobiles, and outdoor power equipment like lawn mowers. The slight difference in wording arises from regional or contextual preferences, but both terms describe the same operational process.

The four strokes work as follows:
1. Intake: Air and fuel are drawn into the cylinder.
2. Compression: The mixture is compressed for ignition.
3. Power: The compressed fuel explodes, pushing the piston down (power stroke).
4. Exhaust: Waste gases are expelled from the cylinder.
This cycle repeats continuously to generate power efficiently.

While 4-stroke is widely used in technical or automotive contexts, 4-cycle is sometimes favored in casual or regional discussions (e.g., small engines). However, no functional distinction exists between the two terms. Both describe engines that rely on this four-step process for combustion, offering benefits like better fuel efficiency and lower emissions compared to 2-stroke engines.

What is 4-stroke cycle intake?

The 4-stroke cycle intake is the first phase in the combustion process of a 4-stroke internal combustion engine. During this stage, the piston moves downward, creating a low-pressure area in the cylinder. This action opens the intake valve, allowing a precise mixture of air and fuel to flow into the cylinder. The intake stroke prepares the engine for the subsequent compression and power strokes by drawing in the necessary combustible mixture. Modern engines use either carburetors or fuel injectors to regulate this mixture, ensuring optimal efficiency and power output.

The Intake Stroke in Action

Here’s how the intake process unfolds:

• The piston begins at the top of the cylinder (top dead center) after the exhaust stroke.
• As the piston moves downward, the intake valve opens, creating a vacuum.
• The fuel-air mixture is drawn into the cylinder through the open intake valve.
• The exhaust valve remains closed to isolate the intake from the exhaust system.

This coordinated movement relies on the engine’s timing mechanism, such as the camshaft, to ensure valves open and close at the correct intervals.

Role of Intake in Engine Performance

The efficiency of the intake stroke directly impacts engine performance. A properly designed intake system ensures the right amount of fuel and air enters the cylinder, promoting complete combustion. Key factors include:

• Valve timing: Ensures the intake valve opens at the optimal point in the piston’s cycle.
• Mixture quality: Clean fuel injectors or carburetors prevent restrictions, maintaining airflow.
• Piston design: The piston’s shape and speed influence how effectively the cylinder is filled.

Any disruption in this process, such as a clogged air filter or faulty valve seals, can reduce power and fuel efficiency. The intake stroke’s success sets the stage for the subsequent strokes, making it foundational to the engine’s operation.

How many revolutions are in a 4-stroke cycle?

In a four-stroke engine cycle, two full revolutions of the crankshaft are required to complete the four core phases: intake, compression, power, and exhaust. Each stroke corresponds to a half-rotation (180 degrees) of the crankshaft. For example, the intake and compression strokes together form the first full revolution, while the power and exhaust strokes complete the second revolution. This two-revolution sequence ensures the engine’s valves, pistons, and spark plugs synchronize precisely to generate power efficiently.

Breakdown of the 4-stroke phases and crankshaft rotations:

• Intake Stroke: Piston moves down to draw in air/fuel mixture (first 180 degrees).
• Compression Stroke: Piston rises to compress the mixture (second 180 degrees, completing the first revolution).
• Power Stroke: Piston is forced downward by combustion (third 180 degrees, starting the second revolution).
• Exhaust Stroke: Piston moves up to expel exhaust gases (final 180 degrees, ending the second revolution).

The crankshaft’s dual rotations directly tie to the engine’s operational rhythm. Over the two revolutions, the piston travels up and down twice, while the crankshaft’s 720-degree rotation (360 degrees × 2) ensures each stroke occurs at the correct timing. This design allows the engine to convert fuel energy into rotational motion smoothly, with the power stroke delivering energy once per full cycle. The two-revolution structure differentiates four-stroke engines from two-stroke variants, which complete all processes in a single rotation but sacrifice power density for simplicity.
