94 Ford Ranger 2.3 Clutch Master Cylinder Replacement Guide

Understanding the 94 Ford Ranger 2.3 Clutch System

The clutch system in the 1994 Ford Ranger with a 2.3-liter engine plays a crucial role in the vehicles performance and drivability. At its core, the clutch system is responsible for engaging and disengaging the engine from the transmission, allowing for smooth gear shifts and optimal power delivery. Understanding the components and functionality of this system can help you maintain your vehicle effectively and troubleshoot any potential issues that may arise.

Key Components of the Clutch System:

• Clutch Pedal: The driver operates the clutch pedal to engage or disengage the clutch.

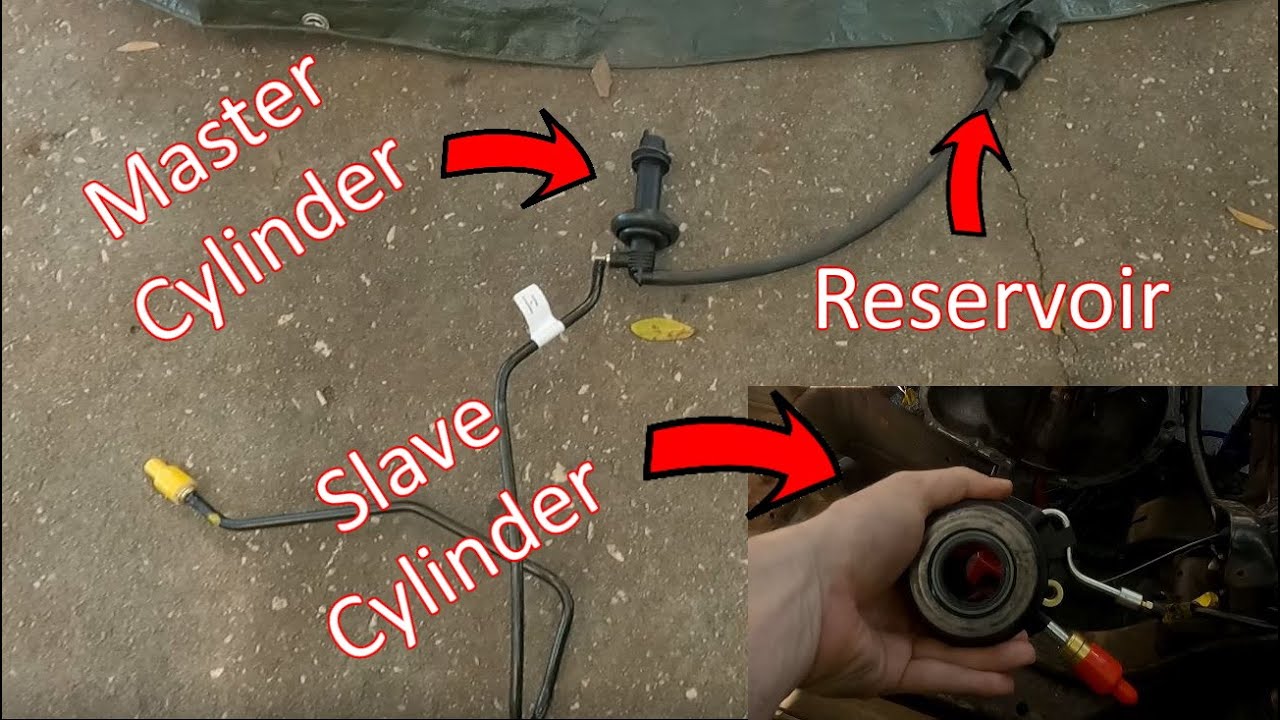

• Clutch Master Cylinder: This component converts the mechanical force from the pedal into hydraulic pressure.
• Clutch Slave Cylinder: The slave cylinder receives hydraulic pressure from the master cylinder and engages the clutch.
• Clutch Disc: This friction component connects the engine to the transmission when engaged.
• Pressure Plate: It applies pressure to the clutch disc to hold it against the flywheel when engaged.

The hydraulic clutch system in the 94 Ford Ranger utilizes a master-slave cylinder setup, which allows for a smooth and responsive operation. When the driver presses the clutch pedal, hydraulic fluid is pushed from the master cylinder to the slave cylinder, which then activates the clutch. This design minimizes wear and provides a more consistent feel compared to older mechanical systems. Regular inspection of the hydraulic fluid levels and the condition of the cylinders is essential for ensuring optimal performance.

Common issues that may affect the clutch system include fluid leaks, worn clutch discs, and a malfunctioning master or slave cylinder. Symptoms of a failing clutch can range from difficulty shifting gears to a slipping clutch, where the engine revs without a corresponding increase in vehicle speed. Addressing these problems promptly can prevent further damage and enhance the driving experience of your 1994 Ford Ranger. Regular maintenance, including checking the hydraulic fluid and inspecting the clutch components, is vital to keep the system in good working order.

Signs Your Clutch Master Cylinder Needs Replacement

The clutch master cylinder plays a crucial role in the operation of your vehicles manual transmission system. It is responsible for converting the mechanical force from the clutch pedal into hydraulic pressure that disengages the clutch. When this component starts to fail, you may notice several warning signs that indicate it needs replacement.

1. Difficulty Engaging Gears: One of the most common symptoms of a failing clutch master cylinder is difficulty shifting gears. If you find it hard to engage the clutch or experience grinding noises when changing gears, it may be time to inspect the master cylinder. This issue can stem from insufficient hydraulic pressure, which prevents the clutch from fully disengaging.

2. Spongy or Soft Clutch Pedal: A spongy or soft clutch pedal is another telltale sign of a malfunctioning clutch master cylinder. If you notice that the pedal feels unusually loose or sinks to the floor without resistance, this could indicate a leak or internal failure within the master cylinder. Proper hydraulic pressure is essential for effective clutch operation, and any compromise can lead to performance issues.

3. Fluid Leaks: Keep an eye out for any signs of fluid leaks around the clutch master cylinder. If you notice a puddle of hydraulic fluid under your vehicle or see fluid on the clutch pedal assembly, it’s a strong indication that the master cylinder is leaking. Hydraulic fluid is essential for the system to function correctly, and a leak can lead to complete clutch failure if not addressed promptly.

4. Warning Lights: In some modern vehicles, a failing clutch master cylinder may trigger warning lights on your dashboard. If you see any alerts related to the transmission or clutch system, it’s advisable to have your vehicle inspected. These warning lights serve as an early indication that something may be amiss, allowing you to take action before the problem escalates.

Step-by-Step Guide to Replacing the Clutch Master Cylinder on a 94 Ford Ranger 2.3

Replacing the clutch master cylinder on a 1994 Ford Ranger 2.3 is an essential maintenance task that can enhance the performance of your vehicles clutch system. This guide will provide you with a comprehensive step-by-step process to ensure a smooth replacement. Before you begin, gather the necessary tools, including a wrench set, a brake line wrench, a socket set, and a catch pan for any fluid spills.

Step 1: Prepare Your Vehicle
Start by parking your Ford Ranger on a flat surface and engaging the parking brake. Allow the engine to cool down if it has been running. Next, disconnect the negative battery terminal to prevent any electrical issues during the replacement process. Place a catch pan under the clutch master cylinder to catch any fluid that may leak during removal.

Step 2: Remove the Old Clutch Master Cylinder
Locate the clutch master cylinder, which is typically situated on the drivers side of the engine bay. Using your wrench, disconnect the hydraulic line from the master cylinder. Be careful to avoid damaging the line itself. After the line is removed, use your socket set to unbolt the master cylinder from its mounting bracket. Gently pull the old cylinder out, taking care not to damage any surrounding components.

Step 3: Install the New Clutch Master Cylinder
Before installing the new master cylinder, compare it with the old one to ensure proper compatibility. Position the new cylinder into the mounting bracket and secure it using the bolts you previously removed. Reconnect the hydraulic line, ensuring a tight fit to prevent leaks. After everything is secured, refill the clutch fluid reservoir with the appropriate fluid recommended for your vehicle.

Step 4: Bleed the Clutch System
Once the new master cylinder is installed, its crucial to bleed the clutch system to remove any air trapped in the lines. Locate the bleeder valve on the slave cylinder and use a helper to pump the clutch pedal while you open and close the bleeder valve. Repeat this process until you see a steady stream of fluid without bubbles. Finally, double-check all connections for leaks and reconnect the negative battery terminal.

Common Tools and Parts Needed for the Replacement Process

When undertaking a replacement process, having the right tools and parts on hand is crucial for ensuring efficiency and effectiveness. The specific tools required can vary depending on the type of replacement being performed, but there are several common items that are generally necessary across various projects.

Essential Tools

To begin, here are some of the most essential tools you may need:

• Screwdrivers: A set of both flathead and Phillips screwdrivers is vital for removing and securing screws.
• Wrenches: Adjustable wrenches or socket sets are necessary for loosening and tightening nuts and bolts.
• Pliers: Needle-nose and slip-joint pliers can help grip and manipulate components during the replacement process.
• Utility Knife: Useful for cutting through various materials, such as tape or insulation.
• Drill: A power drill may be needed for creating new holes or driving screws quickly.

Replacement Parts

In addition to tools, having the correct replacement parts is essential for a successful process. Depending on the project, these parts may include:

• Filters: Air or oil filters are commonly replaced in various mechanical systems.
• Gaskets: These are crucial for sealing connections and preventing leaks.
• Belts and Hoses: Often replaced in vehicles or machinery to ensure proper function.
• Electrical Components: Fuses, switches, or connectors may need to be swapped out in electrical systems.

Having the right combination of tools and parts not only makes the replacement process smoother but also minimizes the risk of damage to the surrounding components. Therefore, its wise to prepare in advance by gathering everything needed for the task at hand. This preparation can save time and prevent frustration during the replacement process.

Tips for Maintaining Your 94 Ford Rangers Clutch System After Replacement

Maintaining the clutch system of your 1994 Ford Ranger after replacement is essential to ensure its longevity and optimal performance. Regular maintenance can help you avoid costly repairs and extend the life of your new clutch components. Here are some practical tips to keep your clutch system in top shape:

1. Regularly Check Fluid Levels

One of the most crucial aspects of clutch maintenance is monitoring the hydraulic fluid levels. Ensure that the clutch master cylinder and reservoir are filled with the appropriate fluid type. Low fluid levels can lead to poor clutch performance and may cause premature wear on the components. Always use the manufacturer-recommended hydraulic fluid to maintain optimal functionality.

2. Avoid Riding the Clutch

Riding the clutch can lead to excessive wear and tear on your new clutch system. To prevent this, make a conscious effort to keep your foot off the clutch pedal when not shifting gears. This practice not only reduces unnecessary friction but also contributes to smoother gear transitions.

3. Inspect Clutch Components Regularly

Make it a habit to periodically inspect your clutch components for any signs of wear or damage. Look for leaks around the master and slave cylinders, as well as any unusual noises when engaging or disengaging the clutch. If you notice any irregularities, address them immediately to prevent further damage.

4. Drive Smoothly

Driving habits play a significant role in the health of your clutch system. Practice smooth acceleration and deceleration to minimize stress on the clutch. Avoid sudden starts and stops, and always engage the clutch gently when shifting gears. By adopting a more fluid driving style, you can enhance the lifespan of your clutch system.

By following these tips, you can maintain your 94 Ford Rangers clutch system effectively, ensuring reliable performance for years to come.
