Ultimate Guide to Bending Moment Diagrams for Cantilever Beams

Understanding the bending moment diagrams for cantilever beams is crucial for engineers and students of structural mechanics. These diagrams are essential for visualizing how moments are distributed along the length of a beam, which in turn affects the beam's design and safety. This guide provides a comprehensive exploration of bending moment diagrams for cantilever beams, covering various loading conditions and their implications.

Introduction to Cantilever Beams

A cantilever beam is a structural element that is fixed at one end and free at the other. This configuration allows the beam to carry loads over a span without external bracing. Cantilever beams are commonly used in construction for balconies, bridges, and overhangs.

Understanding Bending Moments

The bending moment at a section of a beam is a measure of the internal moment that causes the beam to bend. It is a fundamental concept in structural analysis, as it helps determine the stress distribution within the beam. The bending moment is calculated as the algebraic sum of the moments about a section.

Units of Bending Moment

Bending moments are typically measured in units of force times distance, such as Newton-meters (Nm) or pound-feet (lb-ft). The choice of units depends on the system of measurement being used.

Basic Concepts of Bending Moment Diagrams

A bending moment diagram (BMD) is a graphical representation of the bending moment along the length of a beam. It provides a visual understanding of how the moment varies, which is crucial for designing safe and efficient structures.

Key Features of Bending Moment Diagrams

• Sign Convention: The sign of the bending moment is determined by the direction of the moment. A positive moment causes compression at the top fibers of the beam, while a negative moment causes tension.
• Shape of the Diagram: The shape of the BMD depends on the loading conditions. Common shapes include linear, parabolic, and cubic.
• Maximum Bending Moment: Identifying the maximum bending moment is crucial for ensuring the beam's design can withstand the applied loads.

Types of Loads on Cantilever Beams

The type of load applied to a cantilever beam significantly affects the bending moment distribution. Common types of loads include point loads, uniformly distributed loads (UDL), and varying distributed loads.

Point Load

A point load is a concentrated force applied at a specific location along the beam. The bending moment diagram for a cantilever beam with a point load at the free end is a linear graph.

Uniformly Distributed Load (UDL)

A uniformly distributed load (UDL) is a load that is spread evenly across the length of the beam. The BMD for a cantilever beam with a UDL is a parabolic curve.

Varying Distributed Load

A varying distributed load changes in magnitude along the length of the beam. The BMD for such a load can be more complex, often resulting in a cubic curve.

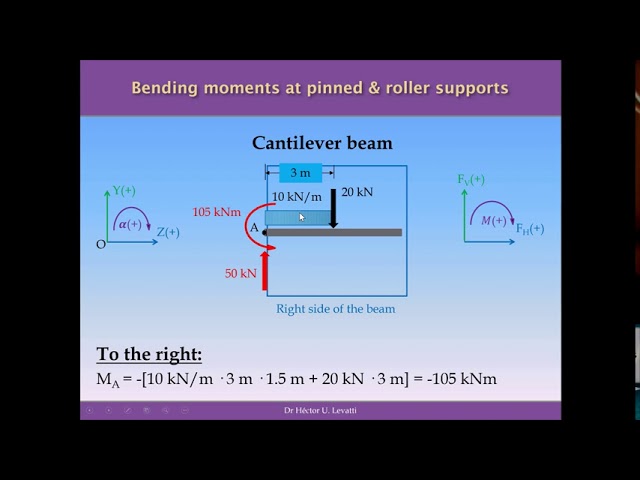

Calculating Bending Moments for Cantilever Beams

Calculating the bending moments for different loading conditions involves using equilibrium equations and integrating the load distribution. This section provides formulas and examples for various loading scenarios.

Point Load at the Free End

For a cantilever beam with a point load ( P ) at the free end, the bending moment at a distance ( x ) from the fixed end is given by:
[
M(x) = -P cdot (L - x)
]
where ( L ) is the length of the beam.

Uniformly Distributed Load

For a cantilever beam with a uniformly distributed load ( w ) (force per unit length), the bending moment at a distance ( x ) from the fixed end is:
[
M(x) = -frac{w}{2} cdot (L - x)^2
]

Varying Distributed Load

For a cantilever beam with a linearly varying distributed load, the bending moment at a distance ( x ) from the fixed end can be calculated using integration. If the load varies from 0 at the fixed end to ( w ) at the free end, the bending moment is:
[
M(x) = -frac{w}{6L^2} cdot (3L^2x - 3Lx^2 + x^3)
]

Constructing Bending Moment Diagrams

Constructing a bending moment diagram involves calculating the bending moments at various points along the beam and plotting these values. This section provides step-by-step instructions for creating BMDs for different loading conditions.

Step-by-Step Construction for Point Load

1. Calculate the bending moment at the fixed end using the formula for a point load.
2. Plot the bending moment values along the length of the beam.
3. Draw a straight line connecting the calculated points to form the BMD.

Step-by-Step Construction for UDL

1. Calculate the bending moment at several points along the beam using the UDL formula.
2. Plot these points on a graph.
3. Draw a smooth curve through the points to form the parabolic BMD.

Step-by-Step Construction for Varying Load

1. Use integration to calculate the bending moment at various points along the beam.
2. Plot the calculated moments on a graph.
3. Draw a cubic curve through the points to complete the BMD.

Applications of Bending Moment Diagrams

Bending moment diagrams are essential tools in structural engineering. They are used in the design and analysis of beams, bridges, and other structural elements to ensure safety and efficiency.

Design and Safety

By analyzing the BMD, engineers can determine the maximum bending moment and ensure that the beam's material and cross-section can withstand the applied loads without failure.

Structural Analysis

BMDs are used in structural analysis to assess the performance of existing structures and to design new ones. They help identify potential points of failure and areas that may require reinforcement.

Advanced Topics in Bending Moment Diagrams

For more complex structures, advanced techniques are used to analyze bending moments. This section covers some of these advanced topics.

Superposition Principle

The superposition principle allows for the analysis of complex loading conditions by breaking them down into simpler components. The bending moments from each component are calculated separately and then summed to obtain the total bending moment.

Dynamic Loading

In cases where the loads vary with time, such as in dynamic loading scenarios, the bending moment diagrams must account for the time-dependent nature of the loads. This often involves using differential equations and numerical methods.

Nonlinear Analysis

For materials that do not follow Hooke's Law, nonlinear analysis is required. This involves using more complex mathematical models to calculate the bending moments and stress distribution.

Conclusion

Bending moment diagrams are vital tools in the field of structural engineering. Understanding how to construct and interpret these diagrams is essential for designing safe and efficient structures. By mastering the concepts and techniques outlined in this guide, engineers and students can effectively analyze and design cantilever beams under various loading conditions.
