How Do I Use a Timing Light: A Step-by-Step Guide

How do I use my timing light?

Using a timing light is essential for ensuring that your engines ignition timing is set correctly, which can improve performance and fuel efficiency. To begin, make sure your engine is at operating temperature. This ensures that the ignition timing is accurate under normal running conditions. Next, locate the timing marks on your engines crankshaft pulley and the timing tab on the engine block. These marks are crucial for aligning your timing light with the current ignition timing.

To use your timing light effectively, follow these steps:

• Connect the Timing Light: Attach the timing lights leads to the battery—red to positive and black to negative. Then, clamp the inductive pickup around the number one spark plug wire.
• Start the Engine: With the timing light connected, start your engine and let it idle. This is important as you want to check the timing at idle speed.
• Aim the Timing Light: Point the timing light at the timing marks on the crankshaft pulley and the timing tab. The flash from the light will illuminate these marks, making it easier to read them.
• Check the Timing: Observe where the timing mark on the pulley aligns with the timing tab. Compare this with the specifications for your engine, which can usually be found in the vehicle’s service manual.

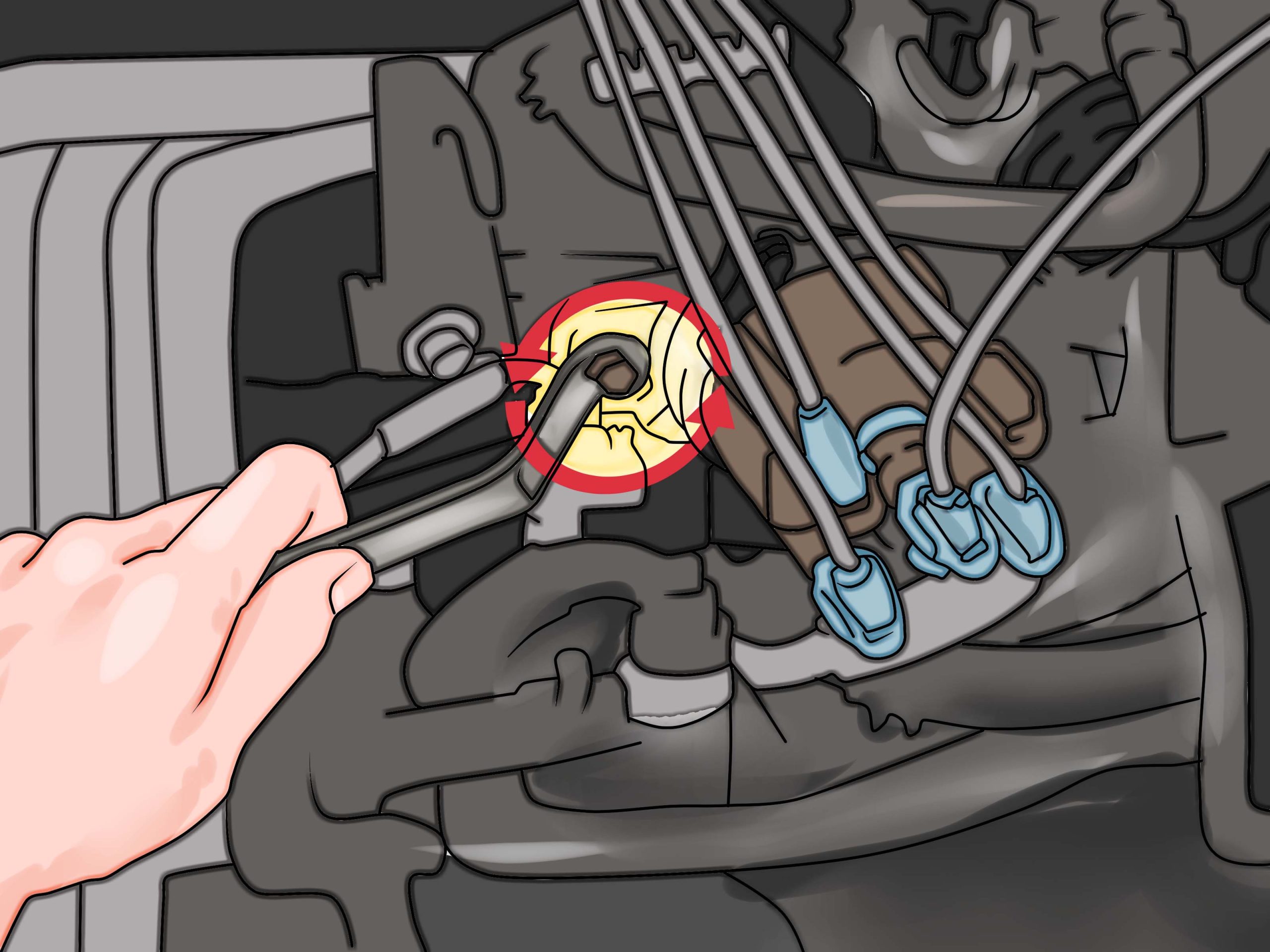

If adjustments are needed, you can typically do this by loosening the distributor hold-down bolt and rotating the distributor slightly until the timing mark aligns with the correct specification. Once adjusted, retighten the bolt and recheck the timing to ensure it is set correctly.

Its also beneficial to take note of any discrepancies during your timing check. If the timing is off significantly, it could indicate other issues within the ignition system or engine components. Regularly using a timing light can help maintain optimal engine performance and prevent potential problems down the line.

Does a car have to be running to use a timing light?

Using a timing light is a critical part of diagnosing and tuning an engines ignition timing. However, many car enthusiasts and DIY mechanics wonder whether the engine needs to be running to utilize this tool effectively. The straightforward answer is yes, a car must be running to properly use a timing light.

When you connect a timing light to your vehicle, it needs to detect the ignition spark from the engines cylinders. This spark occurs only when the engine is running. Therefore, starting the engine is essential for the timing light to function correctly. Without the engine running, there will be no ignition events for the timing light to measure, rendering it ineffective.

Steps to Use a Timing Light:

• Ensure the engine is warm and running at idle speed.
• Connect the timing lights leads: one to the battery positive terminal, one to the battery negative terminal, and the third to the number one spark plug wire.
• Aim the timing light at the timing marks on the engines harmonic balancer or timing cover.
• Observe the timing marks to check if the ignition timing is set correctly.

While some may consider attempting to check timing with the engine off, this is not advisable. The timing marks on the engine cannot be accurately assessed without the engines operational spark. Additionally, attempting to do so can lead to confusion and misinterpretation of the timing settings, ultimately affecting engine performance. Therefore, always ensure that the car is running when using a timing light to achieve accurate results.

How to check timing using a timing light?

Checking the timing of your engine is crucial for optimal performance, and using a timing light is one of the most effective methods. A timing light allows you to visually check the ignition timing by illuminating the timing marks on the engines harmonic balancer or flywheel. To get started, ensure you have a reliable timing light and follow these essential steps.

Step 1: Prepare the Engine
Before you begin, ensure that your engine is in good working condition. Start the engine and let it warm up to its normal operating temperature. This step is important because ignition timing can vary with engine temperature. Once warmed up, turn off the engine and locate the timing marks on the engine. You’ll typically find these on the harmonic balancer, with a pointer indicating the correct timing degrees.

Step 2: Connect the Timing Light
Once the engine is prepared, connect the timing light. Most timing lights come with three wires: one for the positive battery terminal, one for the negative battery terminal, and a third that clips onto the number one spark plug wire. Make sure the connections are secure and that the timing light is positioned safely away from any moving parts.

Step 3: Check the Timing
With everything set up, start the engine again and aim the timing light at the timing marks. The light will flash in sync with the ignition firing, allowing you to see where the timing mark aligns with the pointer. If the mark is aligned with the specified timing degrees indicated in your vehicles service manual, your timing is set correctly. If not, you may need to adjust the timing by loosening the distributor hold-down bolt and rotating the distributor slightly until the marks align correctly.

Step 4: Final Adjustments
After adjusting the timing, it’s important to recheck the timing with the timing light to ensure it remains within the desired range. Once satisfied, turn off the engine, disconnect the timing light, and secure all connections. Regular timing checks can help maintain your engine’s efficiency and prolong its lifespan.

Which way does the arrow go on a timing light?

When using a timing light, understanding the orientation of the arrow is crucial for accurate timing adjustments. The arrow on a timing light typically points towards the engines timing mark. This mark is usually located on the front of the engine, often on the harmonic balancer or the timing cover. By aligning the arrow with this mark, you can effectively measure the ignition timing of your engine.

To ensure correct usage, follow these steps:

• Position the timing light: Securely attach the timing lights inductive pickup around the number one spark plug wire.
• Point the arrow: Make sure the arrow on the timing light is directed towards the timing mark on the engine.
• Check the timing: Start the engine and observe the timing lights flash against the timing mark.

Its important to note that if the arrow is pointed in the wrong direction, it could lead to misinterpretation of the timing, resulting in poor engine performance or potential damage. Therefore, always double-check the arrows orientation before proceeding with your timing adjustments.

In some cases, timing lights may also have additional features, such as adjustable advance settings or a digital display. However, the fundamental principle remains the same: the arrow should always be directed towards the timing mark for accurate readings. By adhering to this guideline, you can ensure your engine runs smoothly and efficiently.
