    <p><strong>Mastering Force Moment Calculation: A Comprehensive Guide</strong></p>

    <h2>Introduction to Force and Moment</h2>
    <p>Understanding the concepts of <strong>force</strong> and <strong>moment</strong> is fundamental in the fields of physics and engineering. A <strong>force</strong> is a vector quantity that tends to produce an acceleration of a body in the direction of its application. The <strong>moment</strong> of a force, often referred to as the <strong>torque</strong>, is a measure of the tendency of the force to cause a body to rotate about a specific point or axis.</p>

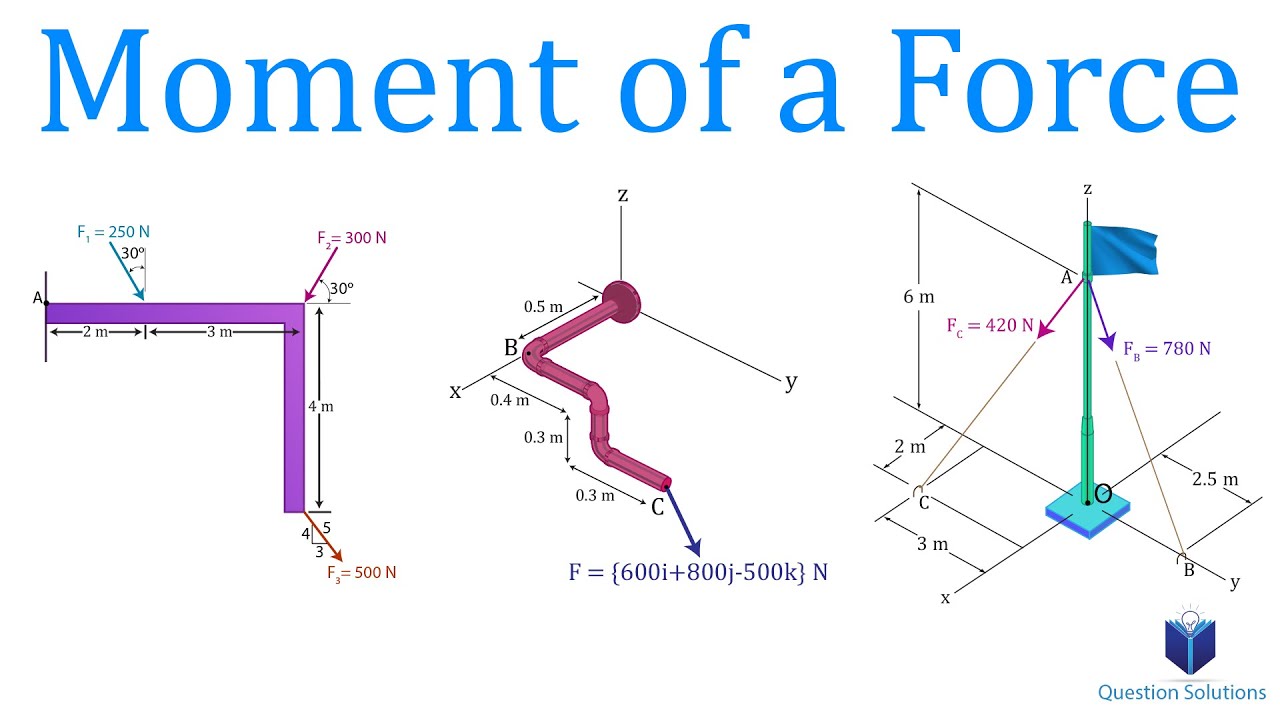

    <h2>Understanding the Basics of Moment Calculation</h2>
    <p>The <strong>moment of a force</strong> is calculated as the product of the force and the perpendicular distance from the point or axis of rotation to the line of action of the force. This relationship is crucial in various applications, from mechanical engineering to structural analysis.</p>

    <h3>Key Components of Moment Calculation</h3>
    <ul>
        <li><strong>Force (F)</strong>: The magnitude of the force applied.</li>
        <li><strong>Distance (d)</strong>: The perpendicular distance from the axis of rotation to the line of action of the force.</li>
        <li><strong>Angle (θ)</strong>: The angle between the force vector and the lever arm.</li>
    </ul>

    <h3>Mathematical Representation</h3>
    <p>The moment (M) can be mathematically expressed as:</p>
    <p><strong>M = F × d × sin(θ)</strong></p>
    <p>Where:</p>
    <ul>
        <li><strong>M</strong> is the moment of the force.</li>
        <li><strong>F</strong> is the magnitude of the force.</li>
        <li><strong>d</strong> is the perpendicular distance from the axis to the line of action of the force.</li>
        <li><strong>θ</strong> is the angle between the force vector and the lever arm.</li>
    </ul>

    <h2>Applications of Moment Calculation</h2>
    <p>The calculation of moments is essential in various engineering disciplines. It is used to determine the rotational effect of forces on beams, levers, and other structures.</p>

    <h3>Structural Engineering</h3>
    <p>In structural engineering, moments are used to analyze and design beams and columns. Engineers calculate the moments to ensure that structures can withstand applied loads without failing.</p>

    <h3>Mechanical Engineering</h3>
    <p>In mechanical engineering, moments are crucial in the design of machinery and components. Understanding the moments helps in designing gears, levers, and other mechanical systems that rely on rotational motion.</p>

    <h2>Methods of Calculating Moments</h2>
    <p>There are several methods to calculate the moment of a force, each suitable for different scenarios and applications.</p>

    <h3>Using the Perpendicular Distance</h3>
    <p>The most straightforward method involves using the perpendicular distance from the axis of rotation to the line of action of the force. This method is particularly useful when the force is applied at an angle.</p>

    <h3>Using the Lever Arm</h3>
    <p>Another method involves using the lever arm, which is the distance from the axis of rotation to the point where the force is applied. This method is often used when the force is applied at a specific point on a lever or beam.</p>

    <h3>Vector Cross Product</h3>
    <p>For more complex scenarios, the vector cross product can be used to calculate the moment. This method is particularly useful in three-dimensional space, where forces and distances are not confined to a single plane.</p>
    <p>The moment vector (M) can be calculated as:</p>
    <p><strong>M = r × F</strong></p>
    <p>Where:</p>
    <ul>
        <li><strong>r</strong> is the position vector from the axis of rotation to the point of application of the force.</li>
        <li><strong>F</strong> is the force vector.</li>
    </ul>

    <h2>Practical Examples of Moment Calculation</h2>
    <p>Let's explore some practical examples to better understand how to calculate moments in different scenarios.</p>

    <h3>Example 1: Calculating Moment on a Beam</h3>
    <p>Consider a beam subjected to a force of 50 N applied at a distance of 2 meters from the pivot point. The force is applied perpendicular to the beam.</p>
    <p>The moment can be calculated as:</p>
    <p><strong>M = F × d = 50 N × 2 m = 100 Nm</strong></p>

    <h3>Example 2: Calculating Moment with an Angle</h3>
    <p>Now, consider a force of 50 N applied at a distance of 2 meters from the pivot point, but at an angle of 30 degrees to the beam.</p>
    <p>The moment can be calculated as:</p>
    <p><strong>M = F × d × sin(θ) = 50 N × 2 m × sin(30°) = 50 N × 2 m × 0.5 = 50 Nm</strong></p>

    <h3>Example 3: Using the Vector Cross Product</h3>
    <p>Consider a force vector F = [3, 4, 0] N applied at a point with position vector r = [2, 0, 0] m from the axis of rotation.</p>
    <p>The moment vector can be calculated using the cross product:</p>
    <p><strong>M = r × F = [2, 0, 0] × [3, 4, 0] = [0, 0, 8] Nm</strong></p>

    <h2>Advanced Topics in Moment Calculation</h2>
    <p>For those looking to delve deeper into the topic, there are several advanced concepts and techniques in moment calculation.</p>

    <h3>Dynamic Moments</h3>
    <p>In dynamic systems, moments are not only caused by static forces but also by changing forces and accelerations. Calculating dynamic moments involves understanding the principles of dynamics and kinematics.</p>

    <h3>Complex Systems</h3>
    <p>In complex systems, such as those involving multiple forces and constraints, the calculation of moments can become quite intricate. Techniques such as matrix methods and finite element analysis are often employed to solve these problems.</p>

    <h3>Non-Linear Systems</h3>
    <p>In non-linear systems, where the relationship between force and displacement is not linear, advanced mathematical techniques are required to calculate moments accurately. These systems often require numerical methods and computer simulations.</p>

    <h2>Tools and Software for Moment Calculation</h2>
    <p>With the advancement of technology, several tools and software are available to assist in the calculation of moments. These tools can significantly simplify the process and increase accuracy.</p>

    <h3>Computer-Aided Design (CAD) Software</h3>
    <p>CAD software, such as AutoCAD and SolidWorks, allows engineers to model structures and calculate moments using built-in analysis tools. These tools can handle complex geometries and multiple forces.</p>

    <h3>Finite Element Analysis (FEA) Software</h3>
    <p>FEA software, such as ANSYS and Abaqus, is used to perform detailed analysis of structures and components. These tools can simulate real-world conditions and provide accurate moment calculations.</p>

    <h3>Spreadsheet Software</h3>
    <p>For simpler calculations, spreadsheet software like Microsoft Excel can be used. By setting up formulas and using built-in functions, engineers can quickly calculate moments for various scenarios.</p>

    <h2>Conclusion</h2>
    <p>Mastering the calculation of moments is essential for engineers and physicists working in various fields. By understanding the fundamental principles and methods of moment calculation, one can analyze and design structures and systems that are safe, efficient, and reliable.</p>

    <h3>Key Takeaways</h3>
    <ul>
        <li>The moment of a force is a measure of its tendency to cause rotation.</li>
        <li>There are several methods to calculate moments, each suitable for different scenarios.</li>
        <li>Advanced topics and tools can further enhance the accuracy and efficiency of moment calculations.</li>
    </ul>

    <p>By continuing to study and apply these concepts, one can achieve a deeper understanding of the forces and moments that govern the physical world.</p>
