How to Measure Wheel Offset: A Complete Guide

Understanding Wheel Offset: What It Is and Why It Matters

Wheel offset is a crucial measurement that determines how the wheels of a vehicle align with its body and suspension. Defined as the distance between the wheels mounting surface and its centerline, wheel offset can significantly impact a vehicles handling, performance, and appearance. It is typically measured in millimeters and can be categorized into three main types: positive, negative, and zero offset.

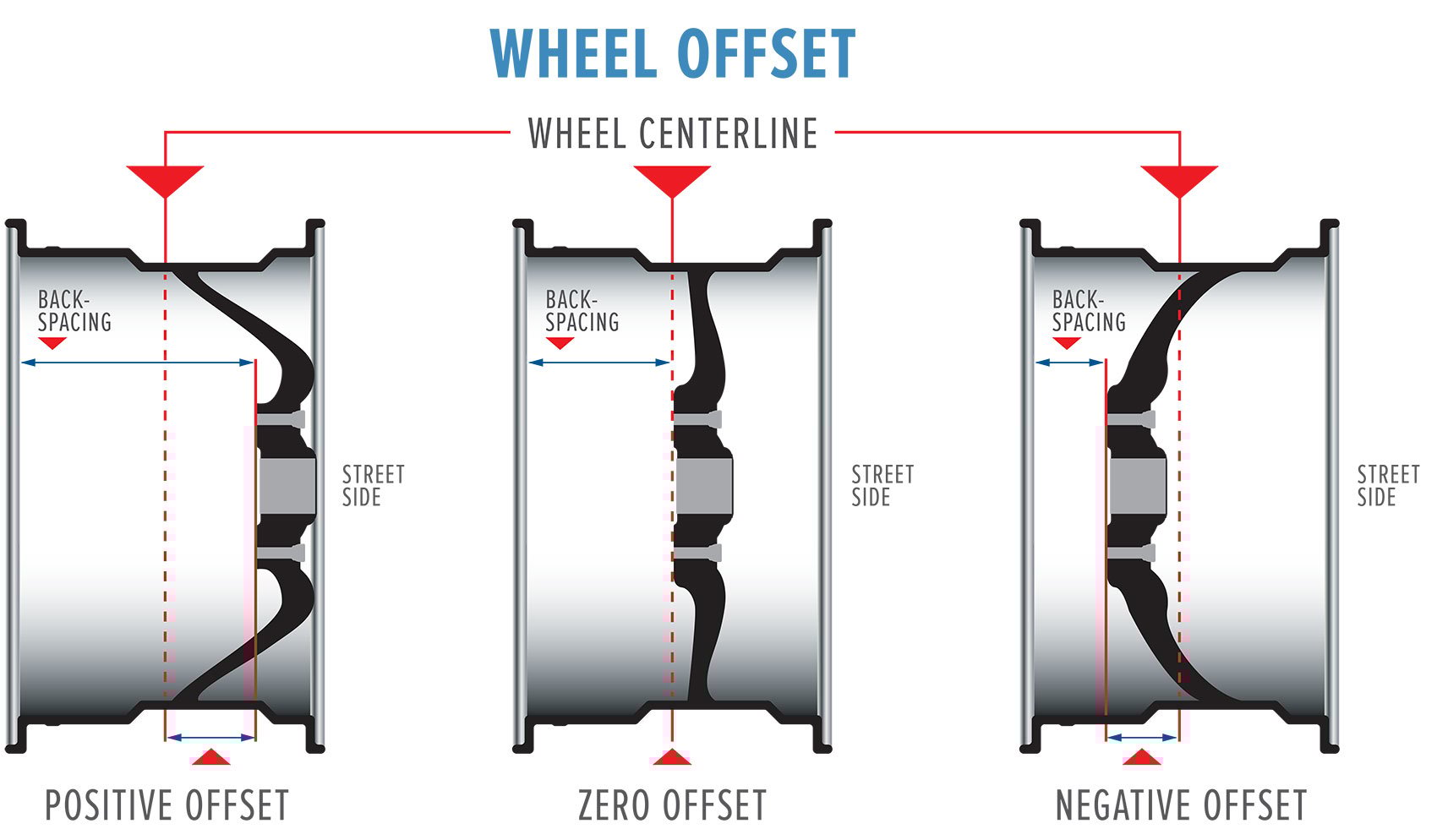

Positive offset occurs when the mounting surface is located towards the front or wheel side of the centerline. This configuration is commonly found in front-wheel-drive vehicles and helps to enhance stability and steering response. Conversely, negative offset is when the mounting surface is closer to the back or brake side of the centerline. This setup is often seen in off-road vehicles and can provide a wider stance, improving traction but potentially leading to clearance issues. Zero offset means the mounting surface aligns perfectly with the centerline, offering a balanced approach.

Understanding wheel offset is essential not just for aesthetics but also for the overall performance of your vehicle. Incorrect offset can lead to a range of issues, including

• Increased tire wear
• Compromised handling and stability
• Potential clearance problems with brakes and suspension components

These factors can affect not only your driving experience but also your safety on the road.

Moreover, wheel offset plays a pivotal role when upgrading or changing wheels. When selecting new wheels, its important to consider the offset to ensure compatibility with your vehicles specifications. A proper wheel offset can enhance your vehicles stance, improve its handling characteristics, and maintain proper alignment, making it an essential factor for any car enthusiast or everyday driver.

How Do You Measure Offset on Wheels? A Step-by-Step Guide

Measuring the offset of wheels is crucial for ensuring proper fitment and performance on your vehicle. Offset refers to the distance between the wheels mounting surface and the centerline of the wheel. A correct measurement can prevent issues such as tire rubbing, uneven wear, and handling problems. Here’s a step-by-step guide to help you measure the offset accurately.

Step 1: Gather Your Tools

To measure wheel offset, you will need a few essential tools:

• Caliper: A digital or dial caliper will provide precise measurements.
• Ruler or Measuring Tape: For additional measurement reference.
• Marker: To mark key points on the wheel.

Step 2: Remove the Wheel

For accurate measurement, it’s best to remove the wheel from the vehicle. This allows you to access the mounting surface easily. Once the wheel is off, place it on a flat surface, ensuring that the inside of the wheel is facing up.

Step 3: Measure the Wheel Width

Using your caliper or ruler, measure the total width of the wheel from bead seat to bead seat. This is typically done in inches. Divide this measurement by two to find the centerline of the wheel. For example, if the total width is 8 inches, the centerline will be 4 inches from either side.

Step 4: Measure the Backspacing

Backspacing is the distance from the mounting surface to the back edge of the wheel. Use your caliper to measure this distance. Start from the mounting surface and extend to the inner edge of the wheel. Record this measurement in inches.

Step 5: Calculate the Offset

Now that you have both the centerline and backspacing measurements, you can calculate the offset. Use the following formula:

• Offset = Backspacing - Centerline

A positive offset means the mounting surface is closer to the front of the wheel, while a negative offset indicates it is closer to the back. Understanding this measurement is essential for ensuring that your wheels fit properly within your vehicles wheel well.

Tools You Need to Measure Wheel Offset Accurately

Measuring wheel offset is crucial for ensuring proper fitment and performance of your vehicles wheels. To achieve accurate measurements, having the right tools is essential. Here are some of the key tools you will need to measure wheel offset effectively.

1. Caliper

A digital or dial caliper is one of the most important tools for measuring wheel offset. This precision instrument allows you to measure the distance from the wheels mounting surface to the inner and outer edges of the wheel. When using a caliper, ensure that it is zeroed correctly before taking measurements. For the best results, measure multiple times and average your results to account for any discrepancies.

2. Straightedge or Ruler

A straightedge or a long ruler is another essential tool for measuring wheel offset. It helps you create a straight line from the wheels mounting surface to the edge of the wheel, ensuring that your measurements are accurate. Place the straightedge against the wheel, and use it as a reference point when measuring the distance to the outer edge. This method is particularly useful for visualizing the offset and ensuring that you have a clear line of sight for your measurements.

3. Wheel Spacer Tool

A wheel spacer tool can assist in visualizing and measuring the offset by allowing you to simulate different offsets. By placing the spacer between the wheel and the hub, you can easily see how changes in offset affect the fitment. This tool is especially useful for those considering aftermarket wheels or spacers, as it helps you make informed decisions based on your measurements.

In addition to these primary tools, a tape measure and a level can also be beneficial for ensuring that your measurements are accurate and consistent. Using a level can help confirm that your vehicle is on a flat surface, eliminating any variances caused by uneven ground. By combining these tools, you can achieve precise measurements and make informed choices about your wheel setup.

Common Mistakes to Avoid When Measuring Wheel Offset

Measuring wheel offset is crucial for ensuring that your vehicles wheels fit properly and perform optimally. However, many enthusiasts make common mistakes that can lead to inaccurate measurements and, ultimately, compromised vehicle handling. One of the most frequent errors is neglecting to understand the different types of offset. Wheel offset is typically categorized as positive, negative, or zero. Each type affects the wheels position relative to the suspension and fender, so its essential to measure accurately based on the wheels design and intended use.

Another common mistake is failing to use the correct measuring tools. Relying on basic rulers or tape measures can yield inconsistent results. Instead, consider using a caliper or a dedicated wheel offset measuring tool for precise readings. Make sure to measure from the hub mounting surface to the wheels inner lip, as this is the critical dimension that defines the offset. Additionally, ensure that the wheel is mounted securely and is free from any debris or obstructions that could affect your measurements.

When measuring wheel offset, many people overlook the importance of the wheels backspacing. Backspacing is the distance from the mounting surface to the inner edge of the wheel. Confusing backspacing with offset can lead to incorrect conclusions about how the wheel will fit on the vehicle. It’s vital to measure both offset and backspacing to ensure a complete understanding of how the wheel will interact with the suspension and body of the vehicle.

Lastly, always double-check your measurements. Its easy to make a simple error during the measuring process, whether its misreading the scale or miscalculating the figures. Consider documenting your measurements and comparing them with manufacturer specifications or online resources to verify accuracy. By avoiding these common pitfalls, you can ensure that your wheel offset measurements are precise, leading to better performance and safety on the road.

How Wheel Offset Affects Vehicle Performance and Handling

Wheel offset plays a crucial role in determining a vehicles performance and handling characteristics. Defined as the distance between the wheels mounting surface and the centerline of the wheel, offset can be categorized into three types: positive, negative, and zero. Each type of offset impacts the vehicles dynamics differently, influencing aspects such as stability, steering response, and tire wear.

Positive Offset

When a wheel has a positive offset, the mounting surface is positioned closer to the front of the wheel. This design typically enhances the vehicles stability, particularly during high-speed maneuvers. The benefits of positive offset include:

• Improved Steering Response: A positive offset can help maintain better alignment of the wheels, resulting in more responsive steering.
• Reduced Risk of Scrubbing: This offset minimizes tire scrubbing, which can lead to uneven tire wear and decreased handling performance.
• Enhanced Stability: Vehicles with positive offset wheels generally experience improved stability in corners and during acceleration.

Negative Offset

Conversely, negative offset occurs when the mounting surface is positioned behind the centerline of the wheel. This configuration can result in a wider track width, which may enhance cornering grip. However, it can also introduce challenges such as:

• Increased Scrub Radius: A negative offset can lead to a larger scrub radius, which may affect steering feel and responsiveness.
• Potential for Suspension Issues: Altered wheel alignment can cause increased stress on suspension components, leading to potential wear and failure.
• Handling Instability: While it can improve grip, a negative offset may also result in unpredictable handling, especially at high speeds.

Zero Offset

Zero offset represents a balanced approach where the mounting surface aligns perfectly with the wheels centerline. This setup can provide a harmonious blend of performance benefits:

• Optimal Handling: Zero offset allows for balanced handling characteristics, making it suitable for a wide range of driving conditions.
• Uniform Tire Wear: This configuration often leads to even tire wear, promoting longer tire life and consistent performance.
• Compatibility with OEM Specs: Wheels with zero offset are often designed to match factory specifications, ensuring compatibility with existing suspension setups.

Understanding the effects of wheel offset is essential for optimizing a vehicles performance and handling. By carefully selecting the appropriate offset, drivers can enhance their driving experience, whether for daily commutes or competitive racing.
