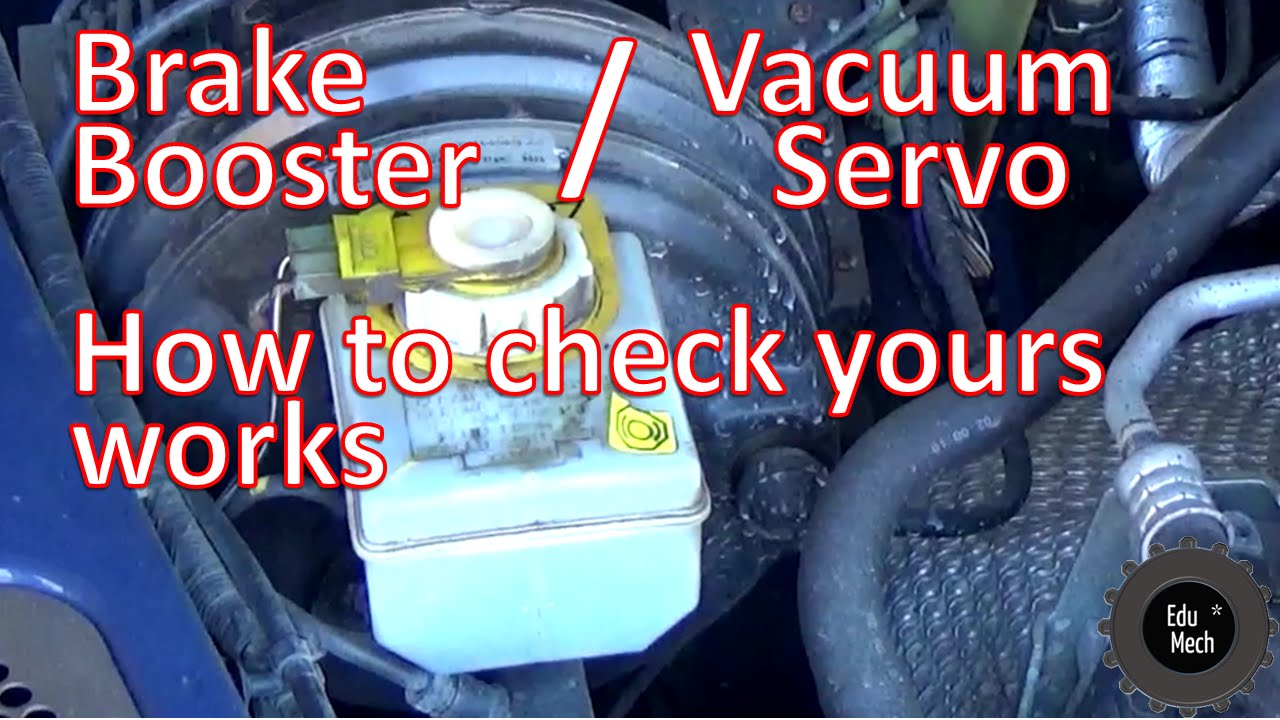

How to test if a brake servo is working?

1. Check Vacuum Pressure with a Gauge

The first step to test a brake servo (also called a vacuum brake booster) is to measure its vacuum pressure. Start the engine and let it idle. Turn off all accessories to ensure the engine can generate sufficient vacuum. Connect a vacuum gauge to the servo’s vacuum port (usually located near the master cylinder). A working servo should hold 22–25 inches of mercury (inHg) when the engine is running. If the reading is low or fluctuates, the servo might have a leak or internal damage.

2. Perform the Bleed Test

If a vacuum gauge isn’t available, manually test the brake pedal. Turn the ignition ON but don’t start the engine. Press the brake pedal several times while listening for a hissing sound (indicating vacuum loss). Then start the engine and press the pedal again. A functioning servo will make the pedal feel significantly lighter and firmer under engine power. If the pedal remains hard or spongy, the servo likely isn’t providing assist.

3. Inspect for Leaks or Damage

Visually inspect the servo for cracks, splits, or loose vacuum hoses. Pay attention to the diaphragm (a rubber membrane inside the servo) that separates the vacuum chamber from the brake mechanism. A damaged diaphragm is a common failure point. You can also spray soapy water around vacuum lines and connections; bubbles forming indicate leaks. Additionally, listen for consistent hissing noises while idling, which suggests a vacuum leak in the servo.

4. Test Braking Performance

With the engine running, press the brake pedal firmly and hold it down. Turn the key to OFF, stopping the engine. If the servo is working, the pedal should rise slightly or feel easier to push—this confirms the vacuum assist is disengaged. If the pedal stays firm, the servo might be failing to release vacuum properly. Always test this safely while the vehicle is parked and in neutral.

How to check if a brake booster is bad?

1. Check for a spongy or soft brake pedal

A faulty brake booster often causes the brake pedal to feel spongy, soft, or sink to the floor when pressed. To test this:
- Start the engine, press the brake pedal firmly a few times, then turn it off.
- Press the pedal again. If it sinks gradually or feels unusually soft, the booster may not be generating enough vacuum pressure. A bad brake booster often results in this "spongy" sensation, as it fails to assist the braking system properly.

2. Monitor braking effort and response

A failing booster increases the physical effort needed to brake effectively. Key signs include:
- Difficulty stopping the vehicle smoothly, even with firm pedal pressure.
- A noticeable difference in how hard you must press the pedal compared to normal driving conditions.
- Test the pedal’s responsiveness while driving at low speeds. If braking feels uncharacteristically strenuous, the booster might be compromised.

3. Listen for unusual noises or leaks

A malfunctioning brake booster may produce specific sounds or symptoms:
- Hissing noises near the engine compartment when braking, indicating a vacuum leak in the booster’s hose or diaphragm.
- Check for cracks or damage in the vacuum hose connected to the booster. A vacuum leak here can prevent the booster from functioning correctly.
- If the vehicle drifts to one side during braking, it could signal uneven pressure distribution caused by booster failure, though this may also indicate other brake system issues.

4. Perform a vacuum retention test

This test checks the booster’s ability to hold vacuum pressure:
- Turn off the engine and press the brake pedal all the way down.
- Hold it there and restart the engine. If the pedal moves upward, the booster is likely retaining vacuum properly.
- If the pedal stays pressed but feels weak or inconsistent, the booster’s internal seals may be worn, requiring replacement.

Ensure you consult a professional if multiple symptoms align, as brake system failures pose serious safety risks. Always prioritize a thorough inspection by a certified mechanic to confirm the issue.

What happens when a brake servo fails?

Immediate Effects on Braking Performance

When a brake servo (vacuum brake booster) fails, the driver will immediately notice a significant increase in brake pedal resistance. This occurs because the servo’s role—amplifying foot pressure to apply the brakes—is lost, forcing the driver to exert more force to stop the vehicle. The stopping distance also lengthens, as reduced hydraulic pressure from the master cylinder alone cannot compensate for the lost servo assistance. In mild cases, the pedal might feel slightly stiffer, but severe failures could make braking feel laborious and delayed.

Common Symptoms of a Failing Brake Servo

Several warning signs precede a complete brake servo failure:

• Hissing noise under the hood or near the brake booster, indicating a vacuum leak.
• Check engine light may illuminate if the vehicle’s diagnostic system detects issues with vacuum sensors or related components.
• Spongy or gradually sinking brake pedal when held, signaling possible vacuum loss or internal seal damage.

These symptoms often worsen over time, culminating in a complete loss of servo function.

Safety Risks and Potential Consequences

A failed brake servo poses serious risks. While the brakes will still function using only the master cylinder’s hydraulic pressure, the reduced effectiveness increases the likelihood of collisions due to delayed stops. In extreme cases, especially in older vehicles reliant on vacuum boosters, the servo’s failure might compound with other brake system issues, leading to total brake failure if other components are also compromised. Immediate repair is critical to avoid accidents, particularly in emergency situations requiring rapid deceleration.

What is the common simple way of testing the brake booster?

Visual Inspection for Physical Damage

A basic first step to test a brake booster is a visual inspection. Check the exterior of the booster for cracks, dents, or fluid leaks, which can indicate internal damage. Inspect the vacuum hose connected to the booster for cracks, loose fittings, or disconnections. A compromised hose may prevent the booster from creating the necessary vacuum pressure to assist braking.

Manual Brake Pedal Test

One of the simplest tests involves the brake pedal itself. With the engine off, press the brake pedal several times. If the booster is functioning, the pedal should gradually become firmer. Next, start the engine and press the pedal again. A working booster will cause the pedal to drop slightly under engine vacuum and feel noticeably easier. If the pedal remains stiff or doesn’t drop, the booster may be faulty.

Vacuum Hose Pressure Test

To test vacuum integrity, locate the vacuum hose connected to the booster. Disconnect it and use a turkey baster or a syringe to suck air out, creating a vacuum. If the booster clicks or the pedal moves slightly, it may be functional. Alternatively, block the hose end and listen for a hissing sound—持续的嘶嘶声 indicates a leak. This test checks if the booster can hold vacuum pressure, a key sign of proper operation.

Additional signs of failure include a spongy brake pedal, uneven brake performance, or hearing vacuum hissing from under the hood. Regular checks using these methods can help identify issues early, ensuring safety and avoiding costly repairs.
