How Do You Test an Oxygen Sensor? A Step-by-Step Guide

How do you check if an O2 sensor is bad?

To determine if an O2 (oxygen) sensor is malfunctioning, you can follow several diagnostic steps. The O2 sensor plays a crucial role in your vehicles emissions control system, and a faulty sensor can lead to poor fuel economy, increased emissions, and engine performance issues. Here are some effective methods to check if your O2 sensor is bad.

1. Check for Warning Lights

One of the simplest ways to check if an O2 sensor is bad is to look for warning lights on your dashboard. The Check Engine Light (CEL) may illuminate due to a malfunctioning O2 sensor. If the light is on, its essential to use an OBD-II scanner to retrieve the trouble codes. Common codes related to O2 sensors include:

• P0131: O2 Sensor Circuit Low Voltage (Bank 1)
• P0132: O2 Sensor Circuit High Voltage (Bank 1)
• P0134: O2 Sensor Circuit No Activity Detected (Bank 1)

If you encounter any of these codes, it may indicate that the O2 sensor is faulty and requires further inspection.

2. Perform a Visual Inspection

A visual inspection of the O2 sensor can also help identify issues. Start by locating the sensor, which is typically situated in the exhaust system, either before or after the catalytic converter. Look for the following signs of damage:

• Wiring Issues: Check for frayed or damaged wires.
• Corrosion: Inspect the sensor for signs of rust or corrosion.
• Physical Damage: Look for any cracks or dents in the sensor housing.

If you notice any of these problems, the O2 sensor may need to be replaced.

3. Test the Sensor with a Multimeter

For a more thorough evaluation, you can test the O2 sensors voltage output using a multimeter. To do this, follow these steps:

1. Disconnect the O2 sensor from its electrical connector.
2. Set your multimeter to the voltage setting.
3. Start the engine and allow it to reach operating temperature.
4. Probe the signal wire of the O2 sensor with the multimeter.

A functioning O2 sensor should produce a fluctuating voltage signal, typically between 0.1 to 0.9 volts. If the voltage remains steady or falls outside this range, it indicates that the sensor may be faulty and needs replacement.

Can you clean an O2 sensor to make it work again?

Cleaning an O2 (oxygen) sensor is a common question among vehicle owners experiencing issues with their engine performance or fuel efficiency. While some people believe that cleaning the sensor can restore its functionality, its essential to understand the limitations and risks involved. O2 sensors are designed to measure the amount of oxygen in the exhaust gases, providing critical data to the engine control unit (ECU) for optimal fuel combustion.

Cleaning Methods
There are a few methods that some DIY enthusiasts might consider when attempting to clean an O2 sensor. These methods include:

• Soaking in Cleaner: Some use a solvent or degreaser to soak the sensor, hoping to remove any carbon buildup.
• Brushing: Lightly brushing the sensor with a soft bristle brush to dislodge debris.
• Ultrasonic Cleaning: Using an ultrasonic cleaner, which can sometimes help remove contaminants.

However, while these methods may temporarily improve the sensors appearance, they often do not resolve the underlying issues. The primary concern is that O2 sensors are delicate devices, and aggressive cleaning can damage the sensors sensitive components. Furthermore, cleaning may not eliminate the reasons for the sensors failure, such as wiring issues or exhaust leaks.

In many cases, a malfunctioning O2 sensor is best addressed by replacement rather than cleaning. Replacement sensors are designed to provide accurate readings, ensuring that your vehicle operates efficiently and meets emissions standards. If you suspect your O2 sensor is faulty, its advisable to have it diagnosed by a professional mechanic rather than attempting a DIY cleaning solution.

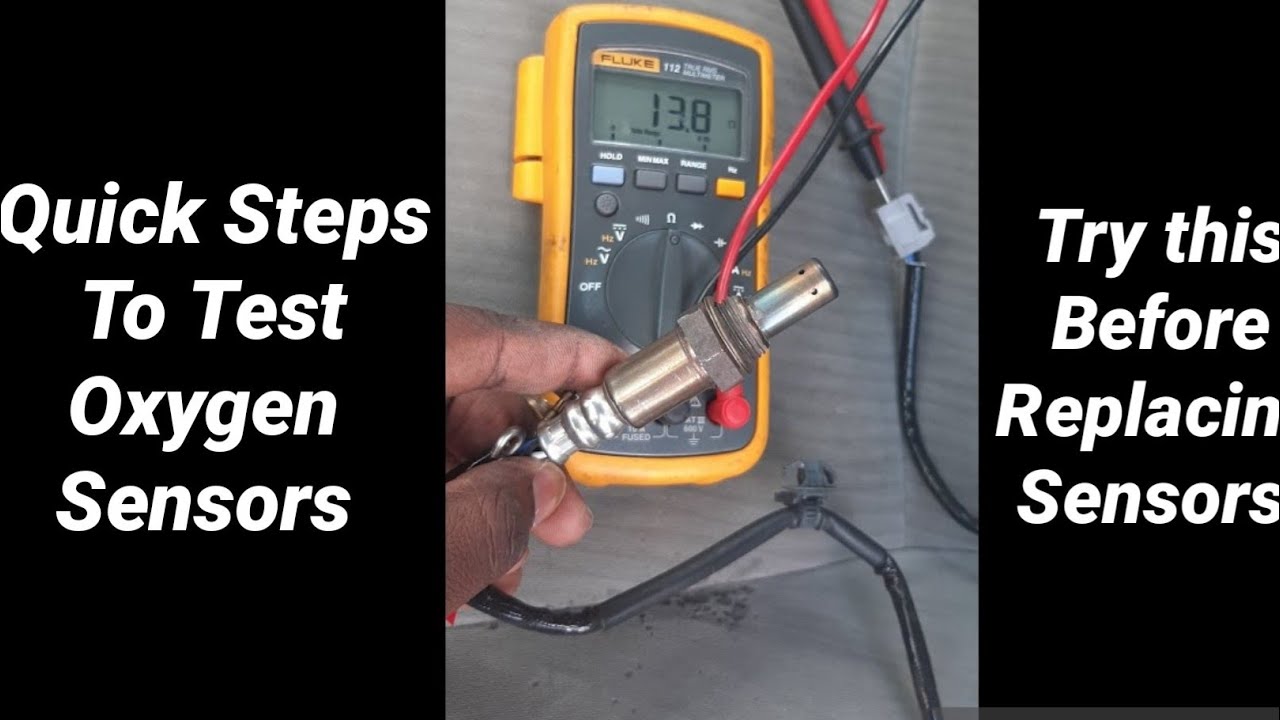

How to test an oxygen sensor with a multimeter?

Testing an oxygen sensor with a multimeter is a straightforward process that can help you determine if the sensor is functioning correctly. Before you begin, ensure you have the right tools: a digital multimeter and access to the vehicle’s oxygen sensor wiring harness. It’s essential to work in a safe environment and take proper precautions when handling automotive components.

To start, locate the oxygen sensor in your vehicle. Most oxygen sensors are situated in the exhaust system, either before or after the catalytic converter. Once you’ve identified the sensor, disconnect the wiring harness to access the sensor terminals. Set your multimeter to the voltage measurement mode, which will allow you to check the output voltage of the oxygen sensor.

Next, connect the multimeter probes to the appropriate terminals of the oxygen sensor. Typically, the sensor has a signal wire and a ground wire. You may refer to your vehicles service manual for specific wiring diagrams. With the probes securely connected, start the engine and let it idle. Monitor the multimeter reading; a properly functioning oxygen sensor should produce a voltage output that fluctuates between approximately 0.1 volts and 0.9 volts as the engine runs.

If the readings are consistently outside this range or show no fluctuation, it indicates a malfunctioning sensor. Additionally, you can perform a response test by revving the engine and observing if the voltage changes in response to engine load. This method provides further insight into the sensors performance. Always remember to reconnect the wiring harness and secure any components you may have moved during testing.

What will unplugging an O2 sensor do?

Unplugging an O2 (oxygen) sensor can have several immediate and long-term effects on a vehicles performance and emissions. The O2 sensor plays a crucial role in monitoring the oxygen levels in the exhaust gases, allowing the engine control unit (ECU) to adjust the air-fuel mixture for optimal combustion. When you unplug the sensor, the ECU may default to a pre-programmed setting, which can lead to various issues.

Immediate Effects:
- Increased Emissions: Without feedback from the O2 sensor, the engine may run richer (too much fuel), resulting in higher emissions. This can lead to failing emissions tests and contribute to environmental pollution.
- Decreased Fuel Efficiency: The engines inability to adjust the air-fuel mixture accurately can lead to poor fuel economy. Drivers may notice an increase in fuel consumption, leading to higher operating costs.

Long-Term Consequences:
- Potential Engine Damage: Running the engine with a constant rich or lean mixture can cause carbon buildup and damage components like the catalytic converter, leading to costly repairs.
- Check Engine Light Activation: Unplugging the O2 sensor will typically trigger the check engine light on the dashboard. This warning can indicate that there is a problem with the emissions system, prompting further diagnostic checks.

In summary, unplugging an O2 sensor disrupts the delicate balance required for optimal engine performance, leading to various negative effects that can compromise both the vehicles efficiency and environmental compliance.
