How to Check a Battery with a Multimeter: Step-by-Step Guide

How do you check if a battery is good with a multimeter?

To determine if a battery is functioning properly, using a multimeter is a reliable method. A multimeter can measure voltage, current, and resistance, but for checking a battery, you’ll primarily focus on the voltage setting. Begin by ensuring your multimeter is set to the correct voltage range; typically, you’ll want to use the DC voltage setting. This is crucial because most batteries, whether they are AA, AAA, or car batteries, provide direct current (DC).

Next, identify the battery terminals: the positive (+) terminal and the negative (-) terminal. Connect the red probe of the multimeter to the positive terminal and the black probe to the negative terminal. Make sure you have a secure connection to obtain an accurate reading. Once connected, look at the display on your multimeter. A healthy battery should show a voltage reading that is close to its rated voltage. For instance, a fully charged standard AA battery should read around 1.5 volts, while a 12-volt car battery should read between 12.4 to 12.7 volts when fully charged.

If the voltage reading is significantly lower than the expected value, it indicates that the battery may be weak or dead. You can also perform a load test for more thorough analysis. This involves applying a load to the battery while monitoring the voltage. If the voltage drops below a certain threshold under load, it confirms that the battery is no longer good.

In summary, here are the steps to check a batterys health with a multimeter:

• Set the multimeter to the DC voltage setting.

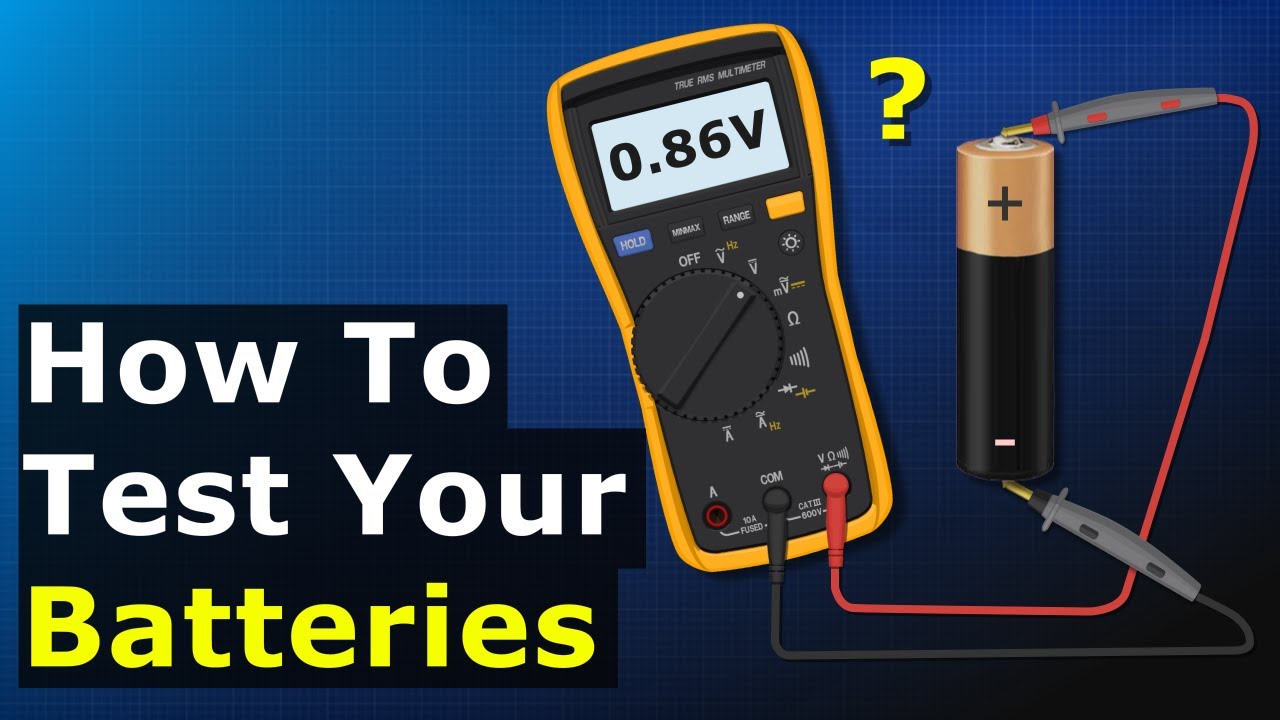

• Connect the red probe to the positive terminal and the black probe to the negative terminal.
• Read the voltage displayed on the multimeter.
• Consider performing a load test for a more comprehensive assessment.

How to check for 12 volts with a multimeter?

To check for 12 volts with a multimeter, youll first need to gather your tools and ensure youre familiar with the multimeters functions. A multimeter typically has two probes: a red probe for positive measurements and a black probe for negative or ground connections. Make sure the multimeter is set to the correct voltage range. For measuring 12 volts, set your multimeter to the DC voltage setting, as most automotive and battery systems operate on direct current.

Next, identify the points where you will measure the voltage. If youre testing a car battery, connect the red probe to the positive terminal and the black probe to the negative terminal. If youre measuring voltage at a specific circuit or component, ensure that you have clear access to the terminals. Always be cautious and avoid touching the metal parts of the probes when they are connected to a live circuit, as this can pose a safety risk.

Once your probes are securely in place, read the display on your multimeter. A reading close to 12 volts indicates that the circuit or battery is functioning correctly. If the reading is significantly lower than 12 volts, this could indicate a problem, such as a weak battery or a faulty connection. For a more accurate assessment, it may be beneficial to take multiple readings at different times or under different load conditions.

Steps to check for 12 volts:

• Set the multimeter to the DC voltage setting.
• Connect the red probe to the positive terminal.
• Connect the black probe to the negative terminal.
• Read the voltage displayed on the multimeter.

If you find that the voltage is consistently below 12 volts, consider further troubleshooting or seeking professional assistance. Always remember to turn off the power supply when making adjustments or connections to avoid damaging the multimeter or the circuit you are testing.

How to measure amps on a 12 volt battery with a multimeter?

Measuring amps on a 12-volt battery using a multimeter is a straightforward process, but it requires careful attention to safety and proper technique. Before you begin, ensure that you have a digital multimeter that can measure current (amps) and is set to the appropriate setting. To accurately measure the current flowing from the battery, youll need to connect the multimeter in series with the circuit.

Follow these steps to measure amps:

1. Set Up the Multimeter: Turn your multimeter dial to the current (A) setting. If your multimeter has multiple current ranges, select the highest range to start with, as this will prevent damage to the device.
2. Prepare the Circuit: Disconnect the battery from any load or circuit. This step is crucial to avoid inaccurate readings or damage to the multimeter.
3. Connect the Multimeter: Connect the red probe of the multimeter to the positive terminal of the battery and the black probe to the positive lead of the circuit. This setup will allow the current to flow through the multimeter.
4. Take the Measurement: Reconnect the negative lead of the circuit to the negative terminal of the battery. The multimeter will now display the current flowing from the battery in amps. Note the reading for your records.

After obtaining your measurement, remember to disconnect the multimeter probes and reconnect any wires you may have disconnected. Its important to handle the multimeter with care, as incorrect connections can lead to inaccurate readings or damage. Always refer to the multimeters manual for specific instructions and safety precautions, especially if you are unfamiliar with using this tool.

How to know if a multimeter battery is low?

When using a multimeter, its crucial to ensure that the battery is in good condition to obtain accurate readings. A low battery can lead to incorrect measurements, which can compromise your projects or diagnostics. Here are some signs to help you determine if your multimeter battery is running low.

1. Check the Display Indicator: Most digital multimeters have a low battery indicator on the display. This symbol typically looks like a battery icon or a warning sign. If you notice this icon lighting up during use, its a clear indication that the battery needs to be replaced soon.

2. Observe the Measurement Readings: If you notice erratic or fluctuating readings when measuring voltage, current, or resistance, it could signal a weak battery. A fully functioning multimeter should provide stable readings. If your device starts showing inconsistent results, consider testing the batterys voltage.

3. Perform a Battery Voltage Test: To check the batterys health directly, you can use your multimeter to measure the battery voltage. Set your multimeter to the appropriate voltage setting, then connect the probes to the battery terminals. A healthy battery should typically read above its nominal voltage (for example, a 9V battery should read around 9V). If the reading is significantly lower, it’s time to replace the battery.

In addition to these methods, always ensure that you store your multimeter in a safe place to prevent unnecessary battery drain. Regularly checking the battery status can save you from unexpected downtime during your projects.
