How do you test a battery with a voltage meter?

To test a battery with a voltage meter, you’ll need a multimeter set to the DC voltage setting (often labeled as “V”). Ensure the meter’s range is appropriate for the battery type (e.g., 0–20V for car batteries or 0–3V for AA/AAA cells). Wear protective gloves if testing high-voltage batteries, and work in a well-lit area.

Connect the Voltage Meter to the Battery

1. Prepare the battery: Turn off any connected devices to avoid a load during testing. For car batteries, disconnect cables temporarily.

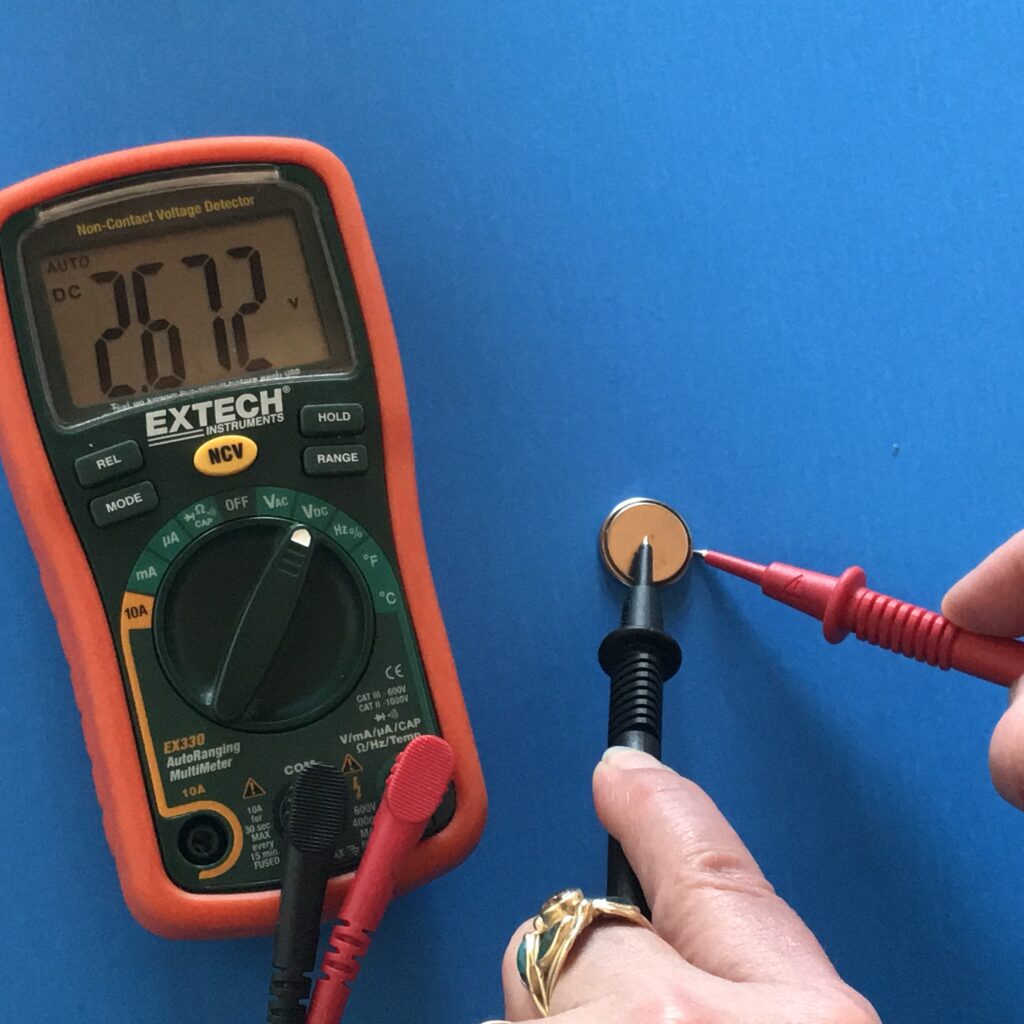

2. Attach the probes: Place the red probe (positive) onto the battery’s positive terminal and the black probe (negative) onto the negative terminal. Ensure a secure, clean contact to avoid false readings.
3. Read the voltage: The meter will display the battery’s voltage. Note the value immediately for accuracy.

Interpret the Voltage Reading

- Full charge: A healthy 12V car battery should read around 12.6V when rested. AA batteries at full charge show ~1.5V.
- Discharged or failing: A reading significantly lower than the nominal voltage (e.g., 11.5V for a car battery or 1.2V for alkaline cells) indicates a weak or dead battery.
- Load testing (optional): For more accuracy, briefly connect a load (e.g., a bulb or starter motor) and check if voltage drops excessively, which may signal internal issues.

Avoid touching metal parts of the probes to prevent short circuits, and always test batteries in a voltage range that matches their type. Regular testing helps identify weak batteries before they fail.

What voltage indicates a dead battery?

Car Batteries: Key Voltage Thresholds

A car battery is considered dead when its voltage drops below 10.5 volts while at rest. A healthy battery typically reads around 12.6 volts when fully charged and not in use. During starting, the voltage should remain above 9.6 volts to crank the engine effectively. If it falls significantly lower, especially under load, the battery may no longer function reliably, signaling the need for replacement.

Other Battery Types and Their Voltage Limits

- Lithium-ion (e.g., laptops, phones): A dead battery often reads below 2.5–3.0 volts per cell, though repeated deep discharges (e.g., below 2.0V) can cause permanent damage.
- AA/AAA Alkaline: These are typically "dead" at 1.0–1.2 volts, though some devices may stop functioning even higher due to low power output.
- Deep-cycle batteries (e.g., for solar systems): A voltage below 10.8 volts (12V system) indicates a deeply discharged state, requiring immediate recharging to avoid damage.

Context Matters: Factors Affecting Voltage Readings

Voltage alone isn’t always definitive. A battery might read low due to:
- High internal resistance from age or sulfation (common in lead-acid batteries).
- Temperature extremes, which can temporarily lower output.
- Load conditions: A battery may show a "dead" voltage under heavy use but recover when tested without a load.
Always use a multimeter for accurate readings and consider testing under load (e.g., while starting a car) to confirm if a battery is truly dead.

How do I test a 12 volt with a multimeter?

Step 1: Prepare the multimeter and power source

Before testing, ensure your multimeter is set to the DC voltage (V DC) mode. For a 12V battery or device, switch the dial to a voltage range higher than 12V, such as 20V or 200V (to avoid damaging the meter). Turn off the power source (e.g., a car engine or circuit) before connecting the probes to avoid short circuits.

Step 2: Connect the probes to the battery or device

Attach the black probe to the negative terminal (marked “-” or “NEG”) and the red probe to the positive terminal (marked “+”). Ensure both probes make solid contact with the terminals to get an accurate reading. For devices with wires, connect the probes to the corresponding live (positive) and neutral (negative) points.

Step 3: Read and interpret the voltage

The multimeter screen will display a numerical value. A fully charged 12V battery should read 12.6V to 12.8V when not in use. If the reading is below 12V, the battery may be discharged. Values significantly higher than 12.6V (e.g., 14V or more) might indicate overcharging or an active charging source (like an alternator in a car). If the reading fluctuates or shows “0L,” check probe connections or battery integrity.

Troubleshooting common issues

If results seem incorrect, verify:

• The multimeter is set to DC (not AC).
• Probes are inserted into the correct ports (VΩ for voltage, not mA or A).
• Battery terminals are clean and free of corrosion.

For car batteries, test when the vehicle is off to avoid interference from charging systems.

Can you check battery percentage with a multimeter?

A multimeter cannot directly measure a battery’s percentage capacity, as this value is not a standard electrical parameter like voltage or current. However, you can estimate a battery’s remaining charge indirectly by measuring its voltage and comparing it to the manufacturer’s specifications. This method works best for rechargeable batteries (e.g., lithium-ion, NiMH) where voltage correlates loosely with charge level. For example, a fully charged 12V lead-acid battery might read around 12.6–12.8V, while a depleted one drops to 11.7V or lower. By cross-referencing these voltage readings with the battery’s datasheet, you can approximate its percentage.

To estimate battery percentage with a multimeter, follow these steps:
1. Set the multimeter to DC voltage mode (V⎓) and connect it to the battery terminals.
2. Record the voltage and note the battery’s rated voltage (e.g., 3.7V for a lithium-ion cell).
3. Compare the reading to a voltage chart specific to the battery type. For instance:
- Lithium-ion: 4.2V (100%), 3.7V (50%), 3.0V (0%)
- Lead-acid: 12.6V (100%), 12.2V (50%), 11.7V (0%)
4. Use these benchmarks to gauge the battery’s approximate charge level.

This method has limitations. Voltage alone doesn’t account for factors like battery age, internal resistance, or load conditions, which can skew results. A battery might show a high voltage but have reduced capacity due to wear, making the percentage estimate less reliable over time. For precise readings, specialized battery analyzers that measure capacity through discharge tests are more accurate. However, a multimeter remains a quick, cost-effective tool for a rough assessment of a battery’s health and charge state.
