How to Check if a Relay Is Bad: Simple Steps

How do I tell if a relay is bad?

Identify Common Symptoms of a Faulty Relay

A bad relay often causes noticeable issues in electrical systems. Look for erratic operation, such as lights flickering, devices not turning on, or systems intermittently malfunctioning. If a relay is failing, you might also hear unusual noises like persistent clicking, buzzing, or whining sounds near the relay’s location. Additionally, check if multiple components connected to the same circuit are malfunctioning simultaneously, as this could indicate a relay failing to route power properly.

Test Continuity and Voltage with a Multimeter

To diagnose a relay, use a multimeter to test its electrical connections. Turn off power to the circuit, then disconnect the relay and check for continuity between the common terminal (typically labeled “C”) and the normally open (NO) or normally closed (NC) terminals. A good relay should show continuity when activated (via battery power or a test lead). If there’s no continuity or inconsistent readings, the relay is likely faulty. Additionally, test voltage at the relay’s coil terminals while the system is powered on. A weak or absent voltage suggests a broken coil or wiring issue.

Inspect for Physical Damage or Corrosion

Visually examine the relay for signs of physical damage, such as cracks, burns, or melted plastic. Corrosion or rust around terminals can disrupt electrical flow, so check for discolored or pitted contacts. If the relay housing is swollen or warped, it may have overheated and failed. Smell the area around the relay—if you detect a burnt or acrid odor, this points to internal damage. Replace the relay if any of these visual cues are present.

Check for intermittent issues like flickering lights or systems that work sporadically, as these can indicate a relay struggling to maintain a connection. Testing with a test light or jumper wires can also help isolate the problem by bypassing the relay temporarily. If the system works when bypassed, the relay is likely the culprit.

How to test a 4 pin relay with a multimeter?

Gather Tools and Prepare the Relay

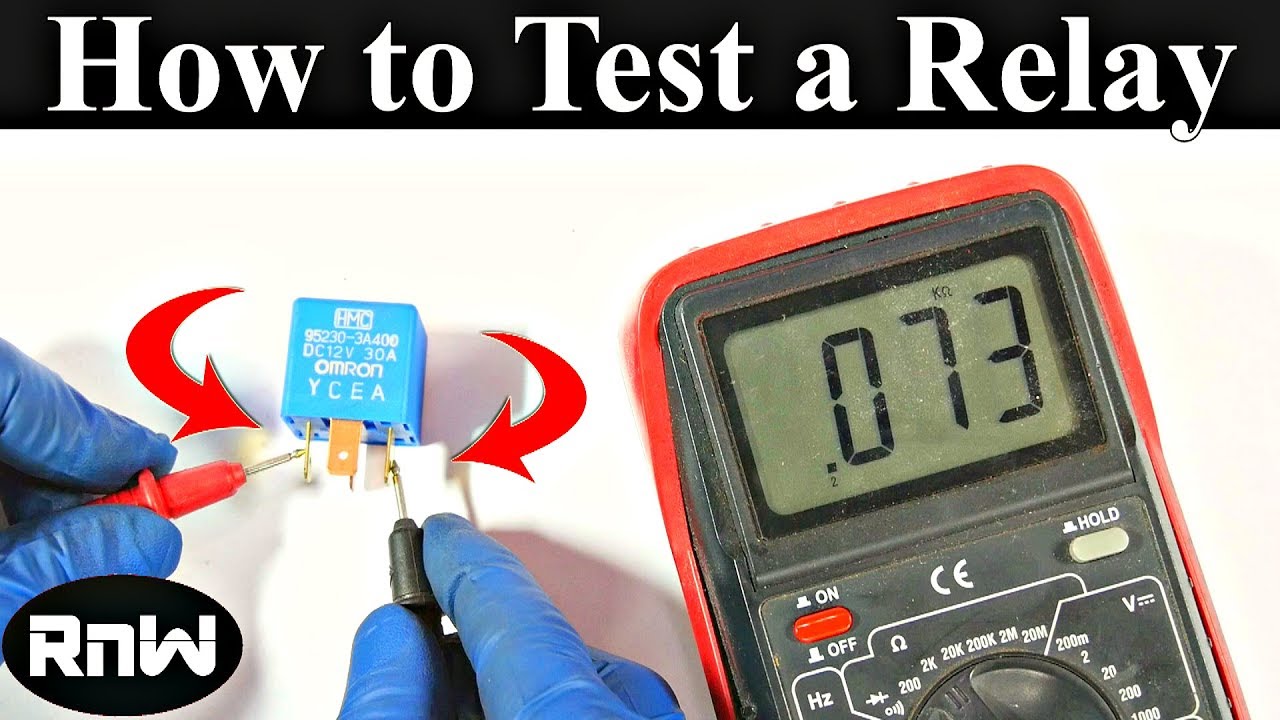

To test a 4-pin relay, you’ll need a multimeter, a 12V power source (like a battery), and access to the relay’s pins (typically labeled 85, 86, 87, and 30). Ensure the relay is disconnected from the vehicle or device before testing. Set your multimeter to continuity mode or resistance mode to begin diagnostics.

Test the Relay Coil (Pins 85 and 86)

1. Check continuity: Touch one probe to pin 85 and the other to pin 86. A working coil should show continuity (a beep or low resistance). No continuity indicates a broken coil.
2. Measure coil resistance: Switch the multimeter to the resistance (Ω) setting. A healthy 12V relay coil typically reads 60–200 ohms. Higher or infinite resistance means the coil is faulty.

Verify Contact Operation (Pins 87 and 30)

1. Test the normally open (NO) contact: With the relay de-energized, place one probe on pin 87 and the other on pin 30. There should be no continuity (high resistance).
2. Apply power to energize the relay: Connect the 12V battery’s positive lead to pin 86 and negative to pin 85. While doing this, check continuity between pins 87 and 30 again. A functioning relay will now show continuity (a closed circuit). If not, the contacts are stuck or damaged.

Ensure all tests are repeated for accuracy. A failed step at any point indicates the relay needs replacement.

Can a relay be bad and still click?

Yes, a relay can be malfunctioning yet still produce a clicking sound intermittently. This occurs when the relay’s internal components are partially degraded but not entirely failed. A relay’s ability to “click” depends on its electromechanical operation: an electromagnetic coil pulls a contact to complete a circuit. Even when damaged, the relay may sometimes function briefly before failing again, creating a false sense of reliability. This inconsistency often leads to confusion, as the clicking sound might mislead users into believing the relay is working properly.

Common Causes of Intermittent Clicking in Faulty Relays

A relay may continue to click due to:
- Worn or pitted contacts: Over time, arcing (sparking) between contacts can erode their surfaces, causing inconsistent connectivity. The relay may still click when the contacts briefly reconnect but fail under load.
- Weak or stuck moving parts: Springs or armatures that are fatigued or contaminated may intermittently engage, producing a click but failing to maintain contact reliably.
- Partial coil degradation: A weakened coil might generate insufficient magnetic force, causing sporadic activation. The relay may click when voltage spikes briefly restore functionality.

Symptoms of a Failing Relay Despite Clicking

Even if a relay clicks, underlying issues may manifest as:
- Delayed or weak activation: The click occurs, but the relay takes longer to engage or fails to fully close the circuit.
- Erratic operation: Intermittent success in powering connected devices, such as lights flickering or motors stuttering.
- Overheating components: Excessive resistance from damaged contacts can cause nearby wiring or circuits to overheat, even if the relay appears to work temporarily.

Faulty relays often exhibit a “stop-start” behavior, where clicking sounds alternate with complete failure. This inconsistency makes diagnosis critical—relying solely on the clicking noise can delay repairs, leading to further damage in connected systems. Testing with a multimeter or continuity tester is essential to confirm functionality beyond auditory cues.

How do I know if my start relay is bad?

How do I know if my starter relay is bad?

Identifying Common Symptoms

A faulty starter relay often causes specific issues when trying to start your vehicle. One of the most noticeable signs is a repeated clicking sound when turning the ignition key. This occurs because the relay fails to deliver sufficient power to the starter motor, causing the solenoid to click without engaging the engine. Another symptom is the engine not cranking at all, even if the battery is fully charged. If the relay is malfunctioning, it may completely block the electrical path to the starter. Additionally, you might experience intermittent starting problems, where the car starts one moment and fails the next. This inconsistency is a hallmark of a relay struggling to maintain a connection.

Testing the Relay for Malfunction

To diagnose the starter relay, start by visually inspecting it for physical damage, such as corrosion or burn marks. Next, use a multimeter to test for continuity between the relay’s terminals. If there’s no continuity, the relay is likely faulty. You can also perform a direct power test: bypass the relay by connecting the battery directly to the starter terminals. If the engine cranks afterward, the relay is probably the issue. Swapping it with a known functional relay from another electrical component (like a horn relay) is another reliable method to confirm the problem.

Distinguishing Relay Issues from Other Problems

It’s crucial to rule out other components before concluding the relay is faulty. A dead battery can mimic relay symptoms, so check the battery’s voltage first. If the battery is weak, charging or replacing it may resolve the issue. A faulty starter motor might also cause cranking problems, but it typically produces a grinding noise rather than a clicking sound. Additionally, inspect wiring and fuses connected to the relay, as loose connections or blown fuses can prevent the relay from functioning properly. Always verify these factors to avoid misdiagnosis.
