Bad Camshaft Position Sensor: How to Check & Diagnose

How do you test the cam position sensor?

Testing a camshaft position sensor involves several steps to ensure it's functioning correctly. The camshaft position sensor, a crucial component in modern engines, monitors the rotational position of the camshaft and sends this information to the engine control module (ECM). This data is vital for determining when to inject fuel and ignite the fuel-air mixture within the engine's cylinders.

Preparation for Testing

Before testing the camshaft position sensor, it's essential to consult the vehicle's repair manual for specific instructions and precautions. Ensure the vehicle is parked on a level surface and apply the parking brake. It's also crucial to have a basic understanding of automotive electrical systems and the specific tools required, such as a multimeter and a scan tool.

The testing process typically involves:

• Visual Inspection: Begin with a visual inspection of the camshaft position sensor and its wiring. Look for any signs of damage, such as frayed wires, corrosion on connectors, or physical damage to the sensor itself.
• Scan Tool Diagnostics: Use a scan tool to read the live data from the ECM. This can provide real-time information about the camshaft position and help identify if the sensor is sending incorrect or no signal to the ECM.

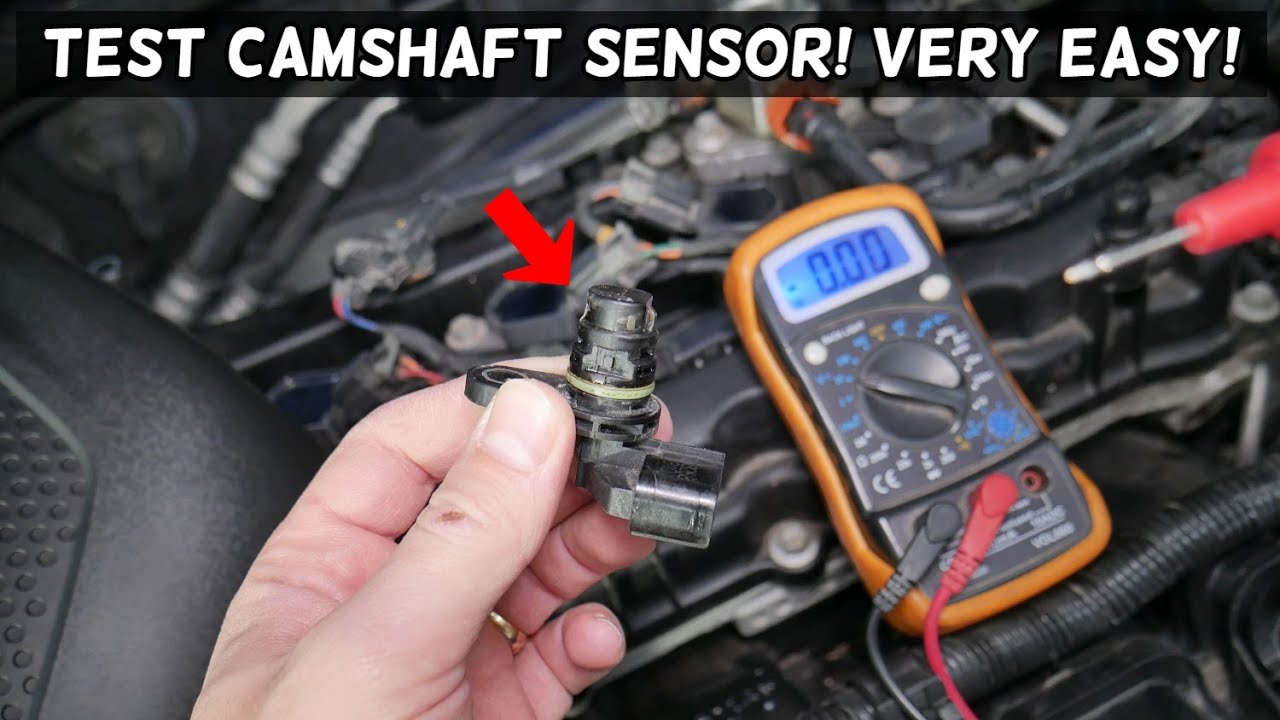

• Multimeter Testing: Measure the resistance of the camshaft position sensor using a multimeter. Compare the readings to the specifications provided in the vehicle's repair manual. Incorrect resistance readings can indicate a faulty sensor.
• Oscilloscope Testing: For a more in-depth analysis, an oscilloscope can be used to observe the waveform produced by the camshaft position sensor as the engine runs. A normal waveform will have a specific pattern, and any irregularities can indicate a problem with the sensor.

Interpreting Test Results

When interpreting the test results, it's crucial to refer to the specifications and guidelines provided by the vehicle manufacturer. If the readings from the multimeter, scan tool, or oscilloscope are outside the recommended ranges or do not match the expected patterns, it may indicate a faulty camshaft position sensor. However, if the test results are inconclusive or the sensor appears to be functioning correctly, but the engine is still experiencing issues, further diagnostic procedures may be necessary to identify the root cause of the problem.

How do I tell if my camshaft sensor is bad?

A faulty camshaft sensor can cause a range of problems with your vehicle's performance. Identifying the symptoms of a bad camshaft sensor is crucial to avoid costly repairs down the road. One of the most common signs of a faulty camshaft sensor is difficulty starting the engine. If the sensor is not providing accurate information to the engine control module (ECM), the engine may struggle to start or may not start at all.

Common Symptoms of a Bad Camshaft Sensor

Some other common symptoms of a bad camshaft sensor include:

• Rough engine idle: A faulty camshaft sensor can cause the engine to idle roughly or stall frequently.
• Decreased engine performance: A bad camshaft sensor can lead to decreased engine performance, including reduced power and acceleration.
• Check Engine Light: A faulty camshaft sensor can trigger the Check Engine Light to come on, indicating a problem with the engine.

In addition to these symptoms, a bad camshaft sensor can also cause misfires and poor fuel efficiency. If the sensor is not providing accurate information, the engine may not be firing properly, leading to reduced fuel efficiency and increased emissions. It's essential to address these symptoms promptly to avoid causing further damage to your vehicle's engine.

Diagnostic Tests for a Bad Camshaft Sensor

To confirm whether your camshaft sensor is bad, you may need to perform some diagnostic tests. These tests may include scanning for trouble codes, checking the sensor's electrical circuit, and testing the sensor's output signal. A professional mechanic can use specialized equipment to perform these tests and determine if your camshaft sensor needs to be replaced.

What happens if you unplug the camshaft position sensor?

Unplugging the camshaft position sensor can cause a range of problems with your vehicle's engine performance. The camshaft position sensor provides critical data to the engine control module (ECM), which uses it to determine when to fire the fuel injectors and ignition coils. Without this information, the ECM may not be able to properly synchronize the engine's valves and pistons.

Immediate Effects on Engine Performance

If you unplug the camshaft position sensor, the engine may experience immediate problems, including:

• Rough engine idle: The engine may idle roughly or stall frequently due to the lack of proper valve and piston synchronization.
• Decreased engine power: The engine may feel sluggish or experience reduced power output, making it difficult to accelerate.
• Engine stalling: In some cases, the engine may stall completely, especially when trying to accelerate or under load.

The camshaft position sensor plays a crucial role in maintaining proper engine timing. Without it, the engine may experience issues with fuel injection and ignition timing, leading to decreased performance and potentially causing damage to engine components. In some vehicles, the ECM may go into a limp mode or fail-safe mode when it detects a problem with the camshaft position sensor, which can limit engine performance to prevent damage.

In addition to immediate performance issues, unplugging the camshaft position sensor can also lead to long-term engine damage. For example, if the engine is consistently running with improper timing, it can cause excessive wear on engine components, such as the valves, pistons, and cylinder head. This can lead to costly repairs down the road, making it essential to address any issues with the camshaft position sensor promptly.
