Mastering the Calculation: Find Moment of Inertia of I-Beam Efficiently

In the field of structural engineering, understanding the moment of inertia is crucial for designing stable and efficient structures. The moment of inertia is a measure of an object's resistance to changes in its rotation. For structural members like I-beams, calculating this property is essential for predicting how the beam will behave under various loads. This article delves into the methods and techniques for efficiently calculating the moment of inertia of an I-beam.

Understanding the Basics: Moment of Inertia

The moment of inertia, often denoted as I, is a geometric property that reflects how the cross-sectional area of a beam is distributed about a certain axis. It plays a pivotal role in determining the beam's deflection and stability under loads. For an I-beam, which is characterized by its distinct shape resembling the letter "I", the calculation of the moment of inertia is particularly important due to its widespread use in construction and engineering.

Significance in Structural Engineering

In structural engineering, the moment of inertia is integral to the analysis and design of beams. It affects the bending stress and deflection of beams under load. A higher moment of inertia indicates greater resistance to bending, making it a critical factor in ensuring the safety and durability of structures.

Types of I-Beams

I-beams come in various shapes and sizes, each with unique properties. The most common types include W-beams, S-beams, and HP-beams. Each type has specific dimensions and properties that influence its moment of inertia.

W-Beams

W-beams, also known as wide-flange beams, are characterized by their wide flanges and narrow web. They are commonly used in construction due to their high strength-to-weight ratio.

S-Beams

S-beams, or standard beams, have a similar shape to W-beams but with a narrower flange. They are often used in applications where space is limited.

HP-Beams

HP-beams, or heavy-pitch beams, are designed for heavy-duty applications. They have a larger web and flange thickness, providing greater load-bearing capacity.

Calculating the Moment of Inertia of an I-Beam

Calculating the moment of inertia for an I-beam involves several steps and considerations. The process can be approached using different methods, each with its own advantages.

Using the Parallel Axis Theorem

One of the most common methods for calculating the moment of inertia of an I-beam is the parallel axis theorem. This theorem allows engineers to determine the moment of inertia about any axis parallel to the centroidal axis of the beam's cross-section.

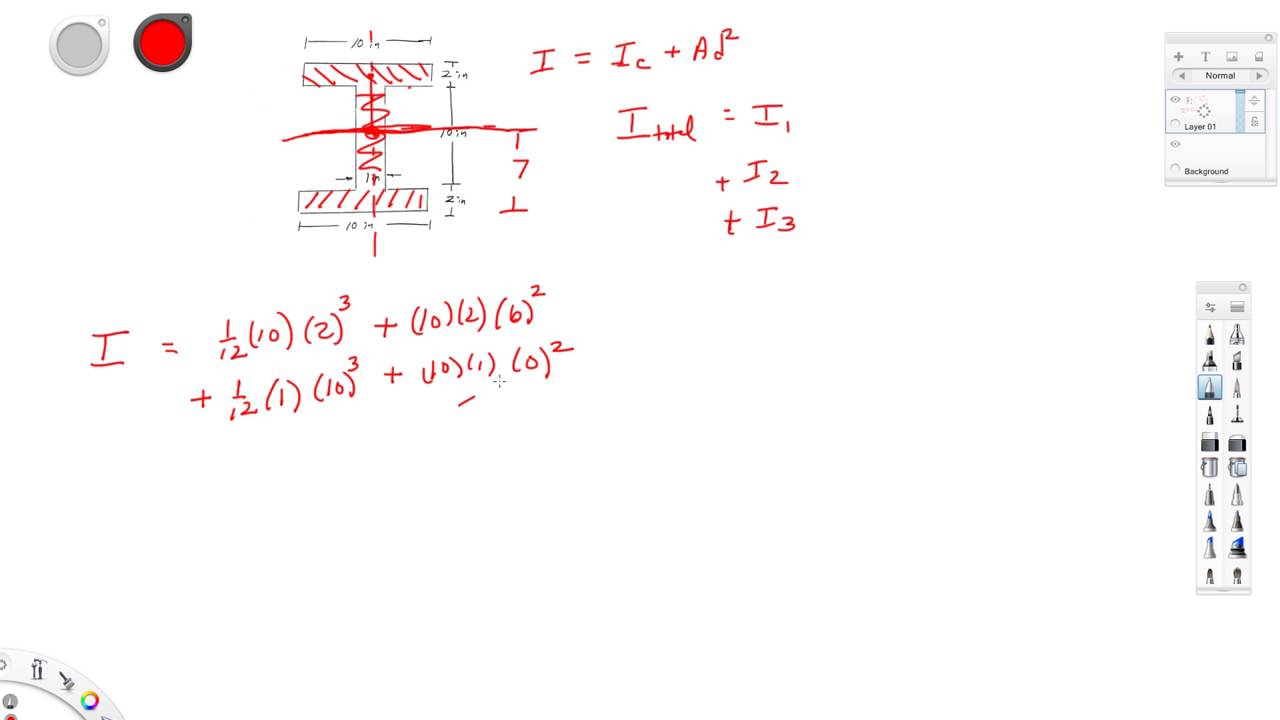

The formula for the parallel axis theorem is:

I = I_c + Ad²

where:

• I is the moment of inertia about the desired axis,
• I_c is the moment of inertia about the centroidal axis,
• A is the area of the cross-section, and
• d is the distance between the centroidal axis and the desired axis.

Composite Area Method

The composite area method involves breaking down the I-beam's cross-section into simpler shapes, such as rectangles, for which the moment of inertia is easier to calculate. The moments of inertia of these simpler shapes are then summed to find the total moment of inertia of the I-beam.

Steps for the composite area method:

1. Divide the I-beam's cross-section into simpler geometric shapes.
2. Calculate the moment of inertia for each shape about its own centroidal axis.
3. Use the parallel axis theorem to adjust each shape's moment of inertia to the desired axis.
4. Sum the adjusted moments of inertia to obtain the total moment of inertia for the I-beam.

Using Standard Tables and Formulas

Many engineering handbooks and software tools provide standard tables and formulas for calculating the moment of inertia of common I-beam profiles. These resources can significantly simplify the calculation process.

When using standard tables:

• Identify the specific I-beam profile from the table.
• Locate the corresponding moment of inertia values for different axes.
• Apply any necessary adjustments based on the beam's dimensions or loading conditions.

Factors Affecting the Moment of Inertia

Several factors can influence the moment of inertia of an I-beam. Understanding these factors is essential for accurate calculations and effective design.

Material Properties

The material from which the I-beam is made affects its moment of inertia. Different materials have varying densities and strengths, which can influence the beam's performance under load.

Beam Dimensions

The dimensions of the I-beam, including the width and thickness of the flanges and the height and thickness of the web, directly impact its moment of inertia. Larger dimensions generally result in a higher moment of inertia.

Axis of Rotation

The axis about which the moment of inertia is calculated also affects the result. The moment of inertia is typically calculated about the centroidal axis, but it can also be calculated about other axes using the parallel axis theorem.

Applications of Moment of Inertia in Engineering

The moment of inertia is a fundamental concept in various engineering applications. It is used in the design and analysis of beams, bridges, buildings, and other structures to ensure stability and safety.

Beam Design

In beam design, the moment of inertia is used to determine the beam's ability to resist bending and deflection. Engineers use this information to select appropriate beam sizes and materials for specific applications.

Vibration Analysis

The moment of inertia also plays a role in vibration analysis. It affects the natural frequency of a structure, which is important for avoiding resonance and ensuring structural integrity.

Dynamic Loading

In dynamic loading scenarios, such as in machinery or vehicles, the moment of inertia is crucial for understanding how the structure will respond to changing loads and forces.

Advanced Techniques for Calculating Moment of Inertia

Beyond the basic methods, advanced techniques can provide more accurate and efficient calculations for complex I-beam configurations.

Numerical Methods

Numerical methods, such as finite element analysis (FEA), can be used to calculate the moment of inertia for complex I-beam shapes and loading conditions. These methods involve dividing the beam into small elements and solving the equations of motion for each element.

Computer-Aided Design (CAD) Software

CAD software tools can automate the calculation of the moment of inertia for I-beams. These tools often include built-in libraries of standard beam profiles and can perform complex calculations quickly and accurately.

Optimization Techniques

Optimization techniques can be used to design I-beams with optimal moment of inertia properties. These techniques involve adjusting the beam's dimensions and shape to achieve the desired performance while minimizing material usage and cost.

Conclusion

Mastering the calculation of the moment of inertia for I-beams is essential for effective structural design and analysis. By understanding the basic concepts, using appropriate methods, and considering the factors that influence the moment of inertia, engineers can design safe and efficient structures. Advanced techniques and tools further enhance the ability to calculate and optimize the moment of inertia for complex applications.

Whether using the parallel axis theorem, composite area method, or advanced numerical techniques, the goal remains the same: to ensure that structures can withstand the loads and forces they will encounter throughout their lifespan. With a solid understanding of the moment of inertia, engineers can continue to innovate and improve the safety and performance of the built environment.
