How to Test a Coil with a Multimeter: Step-by-Step Guide

How do you tell if a coil is bad with a multimeter?

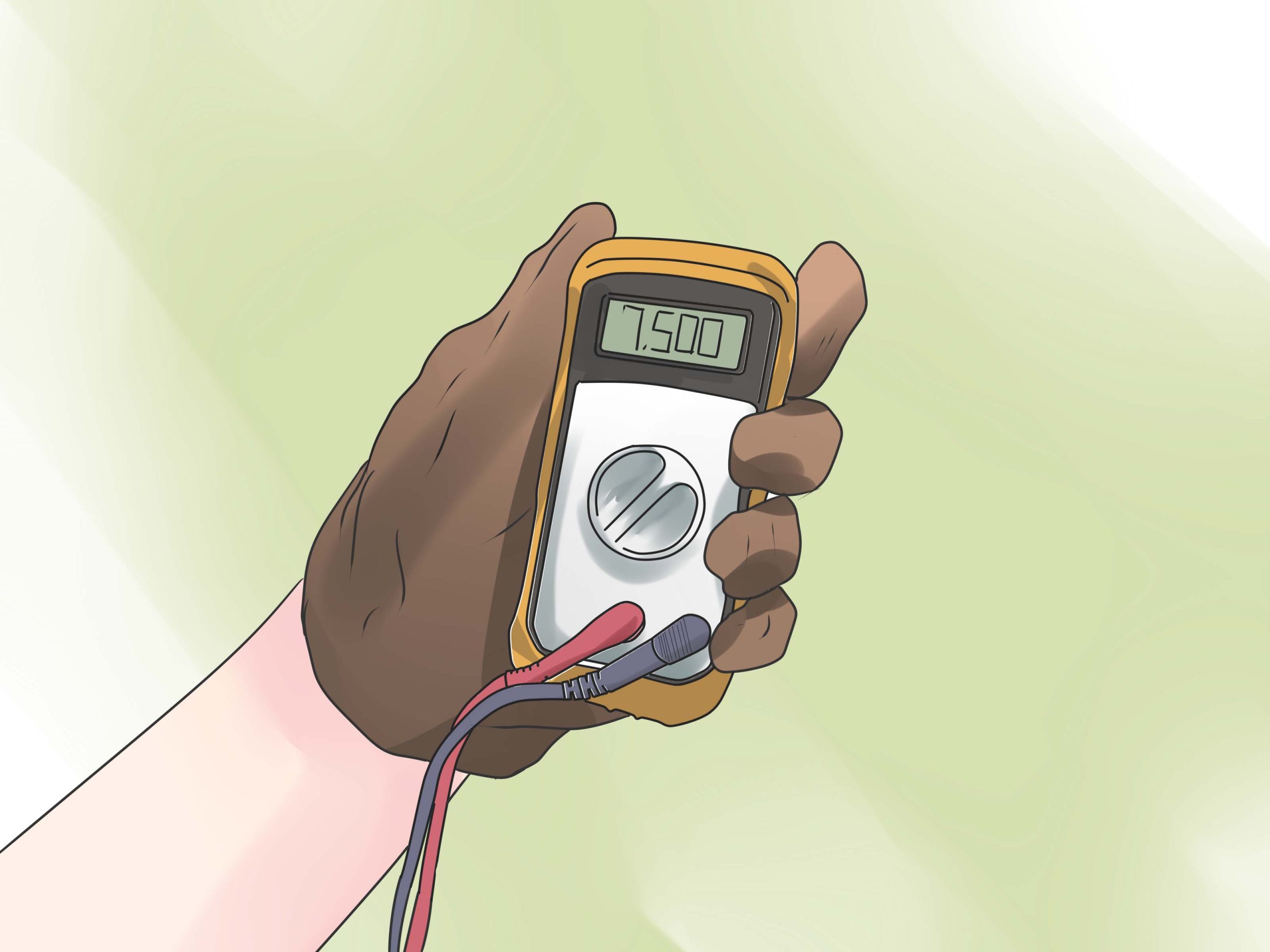

To determine if a coil is faulty using a multimeter, you need to check the resistance of the coil. Start by ensuring the multimeter is set to the ohms (Ω) setting. Disconnect the coil from any power source and remove any wires connected to it to prevent any interference. Next, place the multimeter probes on the coil terminals. A healthy coil typically shows a resistance reading within a specific range, which can vary based on the type of coil you are testing.

Here are the steps to follow:

• Set the multimeter to the resistance (ohms) mode.
• Disconnect the coil from the circuit to avoid false readings.
• Touch the multimeter probes to the coil terminals.
• Read the resistance value displayed on the multimeter.

If the resistance is significantly lower than the manufacturers specifications, or if it reads as an open circuit (infinite resistance), the coil is likely defective. Additionally, a reading of zero ohms indicates a short circuit, which also signifies a bad coil. It’s essential to compare your readings against the specifications for the specific coil you are testing, as different coils have different expected resistance values.

In some cases, you might also want to check for any physical signs of damage. Look for cracks, corrosion, or burnt areas on the coil. These signs can often accompany bad readings on the multimeter, confirming that the coil is indeed faulty. By following these steps and understanding the readings, you can effectively determine the condition of a coil using a multimeter.

What is the easiest way to check an ignition coil?

Checking an ignition coil is a straightforward process that can help diagnose engine issues related to misfiring or poor performance. One of the easiest methods to check an ignition coil is by using a multimeter. This tool allows you to measure the resistance of the coil, which can indicate whether it is functioning properly. To begin, make sure to turn off the engine and disconnect the battery to ensure safety while working on your vehicle.

Steps to check an ignition coil using a multimeter:

• Remove the ignition coil from the vehicle. This usually involves disconnecting the electrical connector and unbolting it from the engine.
• Set your multimeter to the ohms setting.
• Measure the primary resistance by placing the multimeter probes on the two terminals of the ignition coil. The resistance should typically fall within the manufacturers specified range.
• Next, measure the secondary resistance by placing one probe on the high voltage terminal and the other on one of the primary terminals. Again, compare your reading to the specifications provided by the manufacturer.

If the readings are outside the specified range, it indicates that the ignition coil may be faulty and should be replaced. Another simple method to check an ignition coil is to perform a spark test. This involves connecting the ignition coil back to the vehicle, reattaching the spark plug wire, and grounding the spark plug against the engine block while cranking the engine. If a strong spark is produced, the coil is likely functioning correctly; if not, it may need to be replaced.

In addition to these methods, visual inspection can also reveal potential issues with the ignition coil. Look for signs of physical damage, such as cracks or corrosion, which can compromise the coils performance. Regularly checking your ignition coil can prevent larger engine problems and ensure smooth operation of your vehicle.

How do I test a magneto coil with a multimeter?

Testing a magneto coil with a multimeter is an essential process for diagnosing issues in ignition systems, especially in small engines like those found in motorcycles, lawnmowers, and chainsaws. A magneto coil generates the electrical spark needed for ignition, and a malfunctioning coil can lead to starting problems or engine misfires. To perform this test accurately, you will need a digital multimeter and a basic understanding of how to use it.

Step 1: Prepare the Multimeter
Start by setting your multimeter to the ohms (Ω) setting to measure resistance. This setting allows you to check the coils primary and secondary windings. Ensure that the multimeter is functioning correctly by testing it on a known good resistor or component.

Step 2: Disconnect the Magneto Coil
Before testing, its crucial to disconnect the magneto coil from the engine to prevent any electrical interference. Remove any connectors or wiring attached to the coil, ensuring that you can access the terminals easily. This will help you obtain an accurate reading without the influence of other components.

Step 3: Measure Resistance
To check the primary winding, place the multimeter probes on the coils primary terminals (usually the two smaller terminals). A typical resistance value for the primary winding should be between 0.5 to 5 ohms, depending on the specific coil. For the secondary winding, connect the multimeter probes to the high-voltage terminal and one of the primary terminals. This resistance should generally fall within the range of several thousand ohms (often 5,000 to 20,000 ohms). If the readings are significantly outside these ranges, the coil may be defective and require replacement.

Step 4: Inspect for Shorts or Open Circuits
After taking the resistance readings, check for any shorts or open circuits. You can do this by testing the coils terminals against the coil casing. If you receive a reading of 0 ohms (short) or infinite resistance (open circuit), the coil is faulty and should be replaced. Proper testing will help ensure your ignition system operates efficiently and reliably.

How many ohms should a car coil have?

When it comes to understanding the electrical characteristics of a cars ignition system, one of the key components is the ignition coil. The resistance measured in ohms is crucial for ensuring optimal performance. Generally, a typical ignition coil for most vehicles should have a primary resistance ranging between 0.5 to 2.0 ohms. This measurement is essential because it directly impacts the coils ability to generate the high voltage necessary to ignite the air-fuel mixture in the engine.

The resistance of the ignition coil can vary depending on the type of ignition system and the specific requirements of the vehicle. For example, older cars equipped with conventional ignition systems usually feature coils with a primary resistance closer to 1.0 to 1.5 ohms. In contrast, modern vehicles with distributor-less ignition systems (DIS) may have coils with a resistance that falls in the 0.5 to 1.0 ohm range.

Its also important to consider the secondary resistance of the ignition coil, which typically ranges from 6,000 to 15,000 ohms. This measurement is vital for ensuring that the coil can effectively generate the high voltage needed to fire the spark plugs. If the secondary resistance is too high or too low, it can lead to performance issues, including misfires or poor engine performance.

To ensure that your ignition coil is functioning properly, you can perform a simple resistance test using a multimeter. Here’s a quick guide to measuring the resistance:

• Turn off the ignition: Always start with the vehicle turned off to prevent any electrical shock.
• Disconnect the coil: Remove the ignition coil from the vehicle to get accurate readings.
• Measure the resistance: Set your multimeter to the ohms setting and connect the probes to the primary terminals of the coil.
• Compare the readings: Check if the measured resistance falls within the manufacturer’s specifications.

By understanding the ideal resistance values for your cars ignition coil, you can better diagnose potential issues and maintain the overall health of your vehicles ignition system.
