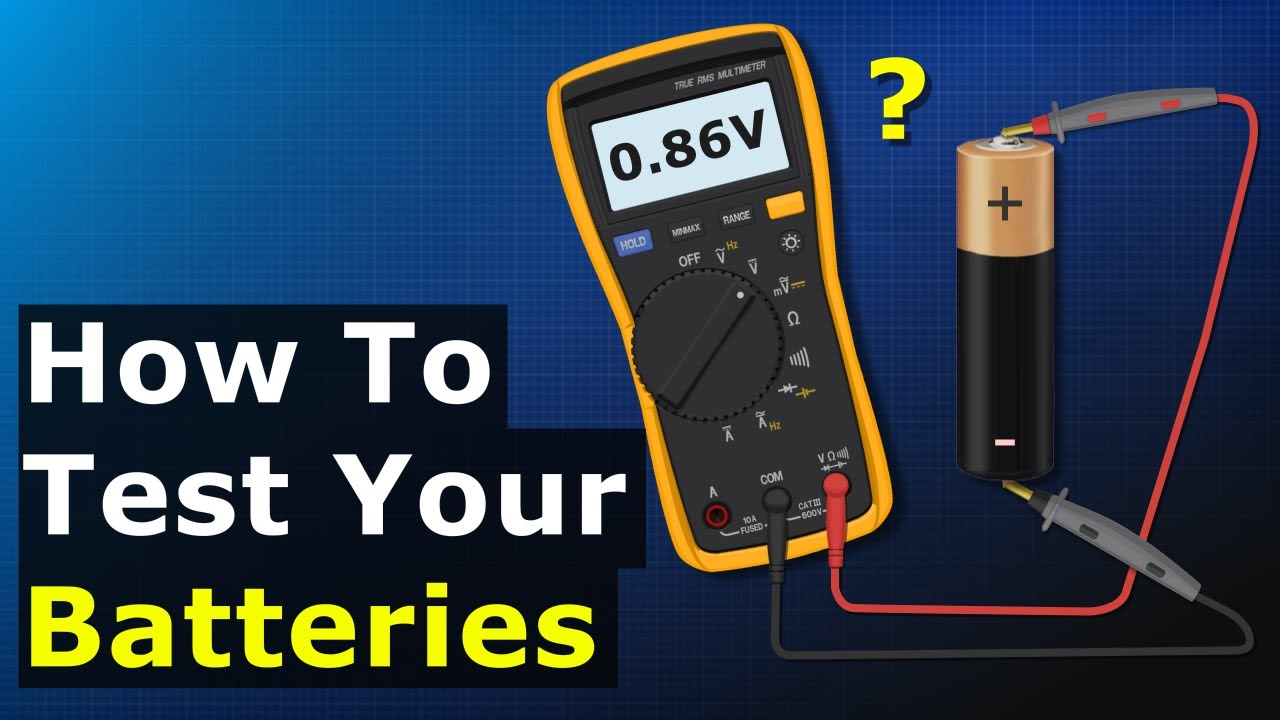

Test Batteries Easily: Multimeter Guide

How do I test a battery with a multimeter?

Testing a battery with a multimeter is a straightforward process that can help you determine its voltage and overall health. To start, make sure you have a multimeter set to the DC voltage setting, usually denoted by a "V" with a straight line above or below it. The multimeter should be set to a range that can handle the battery's voltage, typically 20V or higher for most batteries.

Preparation and Safety Precautions

Before testing, ensure the multimeter is set to the correct function and range. It's also essential to follow proper safety precautions when working with electrical components. Make sure the multimeter leads are in the correct ports, usually the black lead in the "COM" port and the red lead in the "V" port. When handling the battery, avoid touching any metal parts to prevent short circuits.

To test the battery, connect the multimeter leads to the battery terminals, with the red lead touching the positive terminal and the black lead touching the negative terminal. Take note of the voltage reading on the multimeter display. A fully charged battery typically reads around 12.6V for a 12V lead-acid battery, while a lithium-ion battery may read around 4.2V per cell. Compare your reading to the battery's rated voltage and look for any signs of degradation.

Interpreting the Results:
* A voltage reading above the rated voltage may indicate overcharging.
* A voltage reading below the rated voltage may indicate undercharging or a failing battery.
* A significantly low voltage reading, such as below 10V for a 12V lead-acid battery, may indicate a dead or faulty battery.
It's essential to consult the battery's documentation for specific voltage ranges and testing procedures, as some batteries may have unique requirements.

How do I test AA batteries with a multimeter?

How to check for 12 volts with a multimeter?

To check for 12 volts with a multimeter, you need to set the device to the correct voltage range and then take a reading. First, ensure your multimeter is set to DC voltage (VDC) mode, as most car electrical systems operate on direct current. The 12-volt system is common in most vehicles, including cars, trucks, and motorcycles, and is used to power the vehicle's electrical components.

Setting Up Your Multimeter

Set your multimeter to a range that can handle 12 volts. Most digital multimeters automatically adjust the range when you select the DC voltage function, but if you're using an analog multimeter or an older digital model, you might need to manually set it. Typically, a range of 0-20 volts or 0-50 volts will work for checking 12 volts. Make sure the multimeter leads are plugged into the correct jacks, usually the black lead in the COM jack and the red lead in the V jack.

Steps to Check for 12 Volts:

• Turn on your multimeter and select the DC voltage (VDC) function.
• Connect the black lead to the negative (-) terminal of the battery or circuit and the red lead to the positive (+) terminal.
• Read the voltage displayed on the multimeter screen.

A fully charged 12-volt battery should read around 12.6 volts when not under load. If you're measuring the voltage in a circuit that's in use, the voltage might be slightly lower due to the load on the battery. If your reading is significantly lower than 12 volts, it could indicate a problem with the battery or the electrical system. Always ensure that your multimeter leads are not touching any metal parts of the vehicle except for the points where you're taking the measurement to avoid short circuits.

What is a normal battery reading with a multimeter?

When measuring a battery's voltage with a multimeter, a normal reading depends on the type of battery being tested. For a standard 12-volt lead-acid car battery, a normal reading is typically between 12.4V and 12.7V when the battery is fully charged and at rest (not connected to a charger or load). This voltage range indicates that the battery is holding its charge and is ready for use.

Factors Affecting Battery Voltage Readings

Several factors can affect battery voltage readings, including temperature, state of charge, and load conditions. For example, a battery's voltage may drop under load (when connected to a device or charger) due to internal resistance. Additionally, temperature can impact voltage readings, with higher temperatures generally resulting in lower voltage readings.

Typical Voltage Ranges for Different Battery Types:

* Lead-acid batteries: 12.4V - 12.7V (fully charged)
* Nickel-cadmium (Ni-Cd) batteries: 1.2V - 1.3V per cell (fully charged)
* Nickel-metal hydride (NiMH) batteries: 1.2V - 1.3V per cell (fully charged)
* Lithium-ion (Li-ion) batteries: 3.7V - 4.2V per cell (fully charged)

It's essential to consult the manufacturer's specifications for the specific battery being tested, as voltage ranges can vary depending on the battery chemistry and design. A multimeter can provide an accurate voltage reading, but interpreting the results requires an understanding of the battery's characteristics and the factors that affect its voltage.
