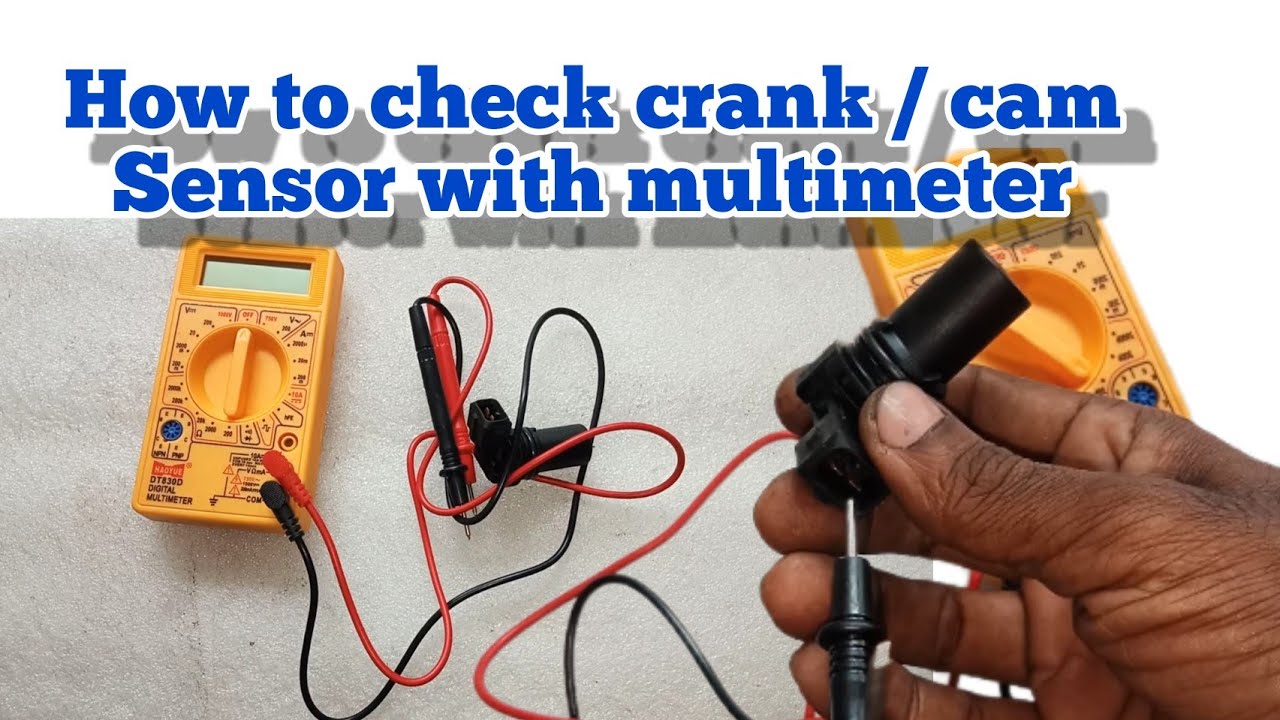

How to Test Camshaft Position Sensor with a Multimeter: A Guide

How do you test a camshaft sensor with a multimeter?

Testing a camshaft sensor with a multimeter is a straightforward process that can help you determine if the sensor is functioning correctly. The camshaft sensor plays a crucial role in engine timing and performance, so its essential to ensure it is operating properly. To start, you will need a digital multimeter and access to the vehicles service manual for specific wiring diagrams and specifications.

First, locate the camshaft sensor in your vehicle. Typically, it is found near the camshaft or on the engine block. Once you have located the sensor, disconnect the electrical connector. With your multimeter set to the resistance (ohms) setting, measure the resistance across the sensor terminals. The expected resistance values will vary depending on the make and model of the vehicle, so consult the service manual for the correct specifications.

Next, check for voltage output from the camshaft sensor. Switch your multimeter to the voltage setting and reconnect the electrical connector. With the ignition turned on (but the engine not running), probe the signal wire of the sensor while ensuring that the ground is connected. You should see a voltage reading that aligns with the specifications provided in the service manual. If there is no voltage or an incorrect reading, it may indicate a faulty sensor.

Lastly, you can perform a functional test by cranking the engine while observing the multimeter. This test will help you verify that the sensor is generating the appropriate voltage signal as the engine runs. If the readings fluctuate as expected, the camshaft sensor is likely functioning correctly. However, if the readings remain constant or show no activity, it may be time to replace the camshaft sensor.

How many ohms should a camshaft position sensor have?

When it comes to diagnosing issues with your vehicles camshaft position sensor, understanding the appropriate resistance levels in ohms is crucial. Generally, a camshaft position sensor should exhibit a resistance range between 200 to 900 ohms. This range can vary based on the specific make and model of the vehicle, so its always best to consult the manufacturers specifications for your particular sensor.

To measure the resistance, you’ll need a multimeter. Here’s a simple process to follow:

• Disconnect the sensor from its wiring harness.
• Set your multimeter to the ohms setting.
• Place the multimeter probes on the sensor terminals.
• Read the resistance value displayed on the multimeter.

If the resistance falls outside the recommended range, it could indicate a faulty sensor. A reading significantly lower than 200 ohms might suggest a short circuit, while a reading higher than 900 ohms could point to an open circuit or internal failure. Additionally, environmental factors and the age of the sensor can also impact its resistance, so regular checks can help maintain optimal engine performance.

Its important to note that some camshaft position sensors may have unique specifications. Therefore, always refer to the service manual for your vehicle for precise values. Keeping an eye on the sensors resistance can help you catch potential problems early, ensuring your engine runs smoothly and efficiently.

How to check if a cam sensor is bad?

Checking if a camshaft position sensor (cam sensor) is bad involves several diagnostic steps. This crucial component helps your vehicles engine control unit (ECU) determine the precise position of the camshaft, which is essential for optimal engine performance. A malfunctioning cam sensor can lead to a variety of engine issues, including poor fuel efficiency, rough idling, and trouble starting the engine. Here are some effective methods to determine if your cam sensor is failing.

1. Visual Inspection

Start with a visual inspection of the cam sensor and its wiring. Look for the following signs:

• Cracks or damage: Inspect the sensor housing for any visible cracks or damage.
• Corroded connectors: Check the electrical connectors for corrosion or dirt that could impede connectivity.
• Loose connections: Ensure that all connections are secure and not loose.

If you notice any of these issues, the cam sensor may need to be replaced.

2. Diagnostic Trouble Codes (DTC)

Utilizing an OBD-II scanner can provide valuable insight into the health of your cam sensor. Follow these steps:

• Connect the scanner: Plug the OBD-II scanner into your vehicle’s diagnostic port.
• Check for codes: Look for trouble codes related to the camshaft position sensor, such as P0340 or P0341.
• Interpret the results: If there are any codes indicating a cam sensor issue, further testing is warranted.

Diagnostic trouble codes can help pinpoint the exact nature of the problem and assist in determining if the cam sensor is indeed faulty.

3. Voltage and Resistance Testing

If visual inspection and DTC retrieval do not confirm a faulty sensor, perform voltage and resistance tests:

• Set your multimeter: Switch your multimeter to the appropriate voltage setting.
• Check voltage output: With the engine running, measure the voltage output at the cam sensor connector. A healthy sensor typically outputs a voltage between 0.5V to 5V.
• Measure resistance: Turn off the engine and check the resistance across the sensor terminals. Most cam sensors should have a resistance value within a specific range, usually between 200 and 800 ohms.

If the readings are outside the normal range, the cam sensor is likely defective and may need replacement.

How to test a sensor with a multimeter?

Testing a sensor with a multimeter is a straightforward process that can help diagnose issues and ensure proper functionality. To begin, you’ll need to gather your tools: a multimeter, the sensor you want to test, and, if necessary, the vehicle or system manual for reference. Ensure that your multimeter is set to the correct mode, typically either voltage, resistance, or current, depending on the type of sensor you are testing.

Step 1: Disconnect the Sensor
Before you start testing, it’s crucial to disconnect the sensor from its electrical connector. This ensures that you are measuring the sensor’s output without interference from the vehicle’s electrical system. Locate the connector, and gently pull it apart to avoid damaging the pins.

Step 2: Set the Multimeter
Once the sensor is disconnected, set your multimeter to the appropriate mode. For most sensors, you’ll want to measure resistance (ohms) or voltage. If you’re testing a temperature sensor, for instance, set your multimeter to the resistance mode. If youre checking a voltage output sensor, switch to the voltage setting.

Step 3: Measure the Sensor Output
Now, you can proceed to measure the sensor’s output. For resistance measurements, connect the multimeter probes to the sensor terminals. The reading should fall within the specifications outlined in the vehicle or sensor manual. If the reading is significantly off, the sensor may be faulty. For voltage output sensors, reconnect the sensor and measure the voltage while the system is operating. Compare the reading with the expected output range.

By following these steps, you can effectively test a sensor with a multimeter, ensuring it functions correctly within your system. Always refer to the specific guidelines for your sensor model to achieve accurate results.
