Test Lawn Mower Solenoid: Easy DIY Guide

How to test for a bad solenoid on a lawn mower?

Testing a solenoid on a lawn mower is a relatively straightforward process that can help you diagnose issues with your mower's electrical system. A solenoid is an essential component that acts as a switch to control the flow of electrical current to the mower's starter motor. When a solenoid fails, it can prevent the mower from starting.

Signs of a Bad Solenoid

Before you start testing, it's crucial to recognize the signs of a bad solenoid. These include:

• No click sound when you turn the key: A functioning solenoid typically produces a distinct click sound when you turn the key to start the mower. If you don't hear this sound, it could indicate a solenoid problem.
• Mower won't start: If the mower doesn't start, a bad solenoid could be the culprit.
• Intermittent starting issues: If the mower starts sometimes but not others, a faulty solenoid might be causing the problem.

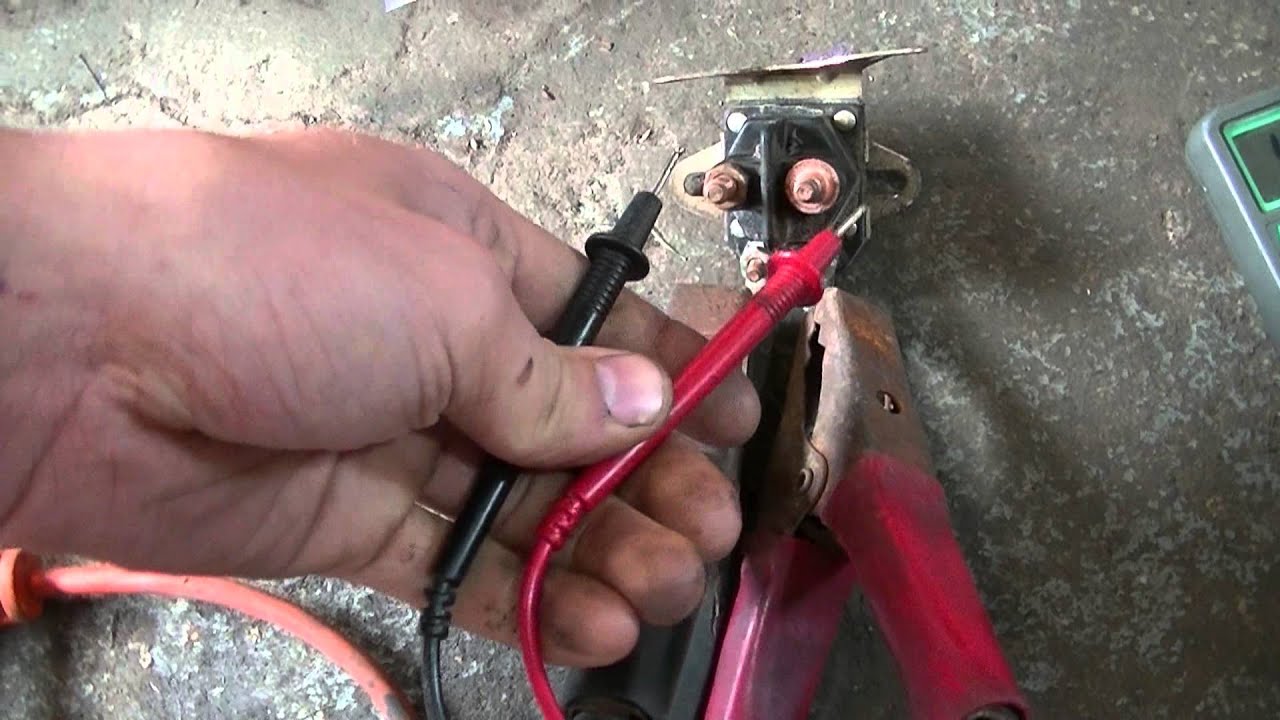

To test the solenoid, you'll need a multimeter. Start by disconnecting the battery to prevent any accidental starts or electrical shocks. Locate the solenoid and its wiring connections. Use your multimeter to test for continuity between the solenoid's terminals. Consult your mower's manual for the specific wiring diagram and resistance values for your solenoid. Typically, you should read very low resistance (close to zero ohms) when the solenoid is not energized and higher resistance when it's energized.

Testing Solenoid Functionality

With the multimeter still connected, turn the key to the start position. You should see the solenoid click and the resistance change. If you don't hear the click or see a change in resistance, the solenoid is likely faulty. You can also perform a voltage test to ensure the solenoid is receiving power. Use the multimeter to measure voltage at the solenoid's terminals when the key is turned to the start position. If there's no voltage, the issue might be with the wiring or ignition switch, not the solenoid.

How to check if a solenoid is bad?

To determine if a solenoid is faulty, you need to perform a series of tests. The first step is to visually inspect the solenoid for any signs of physical damage, such as cracks, dents, or corrosion. Check the solenoid's electrical connections for any signs of wear or damage. Make sure all connections are secure and not loose.

Testing Solenoid Resistance

Use a multimeter to measure the solenoid's resistance. Set the multimeter to the ohms function and connect the leads to the solenoid's terminals. A good solenoid will typically show a low resistance reading, usually between 0.5 and 5 ohms, depending on the solenoid's specifications. If the reading is significantly higher or shows an open circuit, it may indicate a faulty solenoid.

Checking Solenoid Functionality

To test the solenoid's functionality, you can perform a voltage test. Connect the multimeter to the solenoid's terminals and apply the recommended voltage to the solenoid. If the solenoid is functioning correctly, you should see a voltage drop across the solenoid when it's energized. You can also use a continuity tester to check if the solenoid is conducting electricity properly. If the solenoid fails these tests, it may be faulty and need to be replaced.

Some common signs of a bad solenoid include:

• Failure to engage or disengage: If the solenoid fails to engage or disengage, it may be a sign of a faulty solenoid.
• Intermittent operation: If the solenoid operates intermittently, it may indicate a problem with the solenoid's electrical connections or internal components.
• Overheating: If the solenoid overheats, it can cause damage to the internal components and lead to failure.

When I turn the key on my mower and nothing happens?

If you're experiencing issues with your lawn mower not starting when you turn the key, there are several potential causes to consider. One of the most common reasons is a dead battery. If your mower's battery is not functioning properly, it won't be able to provide the necessary power to start the engine. Check the battery terminals for corrosion and make sure the connections are secure. You can also try jump-starting the mower with a car battery or a portable jump starter to see if that resolves the issue.

Faulty Ignition System

Another possible cause of the problem is a faulty ignition system. The ignition system is responsible for generating the spark that ignites the fuel in the engine. If the ignition coil or spark plug is worn out or damaged, it may not be producing a strong enough spark to start the engine. Check the spark plug for signs of wear or damage and replace it if necessary. You can also try testing the ignition coil with a multimeter to see if it's functioning properly.

Some other potential causes of the problem include:

• Fuel issues: If the fuel tank is empty or the fuel line is clogged, the mower won't start. Check the fuel level and make sure the fuel line is clear.
• Clogged air filter: A clogged air filter can prevent the engine from getting the oxygen it needs to start. Check and clean or replace the air filter if necessary.
• Faulty starter motor: The starter motor is responsible for turning the engine over. If it's faulty, the mower won't start. Check the starter motor for signs of wear or damage.

In some cases, the problem may be related to the mower's electrical system. Check the wiring and connections to make sure they're secure and not damaged. If you're not comfortable troubleshooting the issue yourself, it's always a good idea to consult a professional small engine repair technician for assistance. They can diagnose the problem and make the necessary repairs to get your mower up and running again.

How to test lawn mower starter solenoid with screwdriver?

Testing a lawn mower starter solenoid with a screwdriver is a relatively simple process that can help you diagnose issues with your lawn mower's starting system. To begin, make sure you have a basic understanding of how a solenoid works. The solenoid is an electromagnetic device that acts as a relay to connect and disconnect the battery from the starter motor. When you turn the key or press the start button, the solenoid engages, allowing the battery to power the starter motor.

Preparation and Safety Precautions

Before you start testing, ensure your lawn mower is parked on a level surface, and the engine is turned off. Disconnect the spark plug wire to prevent any accidental starts. Wear protective gloves and safety glasses to avoid any potential electrical shocks or injuries.

To test the solenoid with a screwdriver, you'll need to locate it first. Typically, it's found near the starter motor or on the lawn mower's frame. Check your owner's manual or look for a cylindrical or rectangular device with two large terminals and a smaller terminal for the ignition switch wire. Once you've located the solenoid, you can proceed with the test.

Testing the Solenoid

Use a screwdriver to bridge the two large terminals on the solenoid. This is essentially creating a temporary connection between the battery and the starter motor. If the starter motor turns when you bridge the terminals, it indicates that the solenoid is faulty and not allowing the battery to connect to the starter motor. If the starter motor doesn't turn, the issue might be with the starter motor itself or the battery. You can also use a multimeter to test for continuity between the terminals to further diagnose the solenoid's condition.

Some key points to keep in mind during the test:

• Make sure the screwdriver you're using is insulated to avoid any accidental electrical shocks.
• Be cautious when working with electrical systems, as they can be hazardous if not handled properly.
• If you're not comfortable with this test or if you're unsure about the results, consider consulting a professional small engine mechanic.
