Test Lawn Mower Coil: Easy Step-by-Step Guide

How to tell if a lawn mower coil is bad?

A faulty lawn mower coil can be a frustrating issue, especially when you're in the middle of mowing your lawn. The coil, also known as the ignition coil, plays a crucial role in the lawn mower's engine, as it's responsible for generating the spark that ignites the fuel. When the coil is bad, the engine won't start or will run poorly. So, how can you tell if a lawn mower coil is bad?

Signs of a Faulty Lawn Mower Coil

There are several signs that indicate a lawn mower coil is bad. No spark is one of the most obvious signs. If you're not getting a spark from the spark plug, it's likely that the coil is faulty. You can use a spark tester to check for spark. Another sign is engine stalling. If the engine stalls frequently or won't start at all, it could be due to a bad coil. Additionally, engine misfiring or running rough can also be indicative of a faulty coil.

Here are some steps to diagnose a bad lawn mower coil:
* Check the spark plug: Make sure the spark plug is in good condition and properly gapped.
* Use a multimeter: Measure the resistance of the coil using a multimeter. A healthy coil should have a resistance reading within the manufacturer's specified range.
* Check for spark: Use a spark tester to check for spark at the spark plug.

If you've determined that your lawn mower coil is bad, it's essential to replace it with a new one. A faulty coil can cause further damage to the engine if it's not addressed. Make sure to consult your owner's manual or contact a small engine repair professional if you're unsure about how to proceed with replacing the coil.

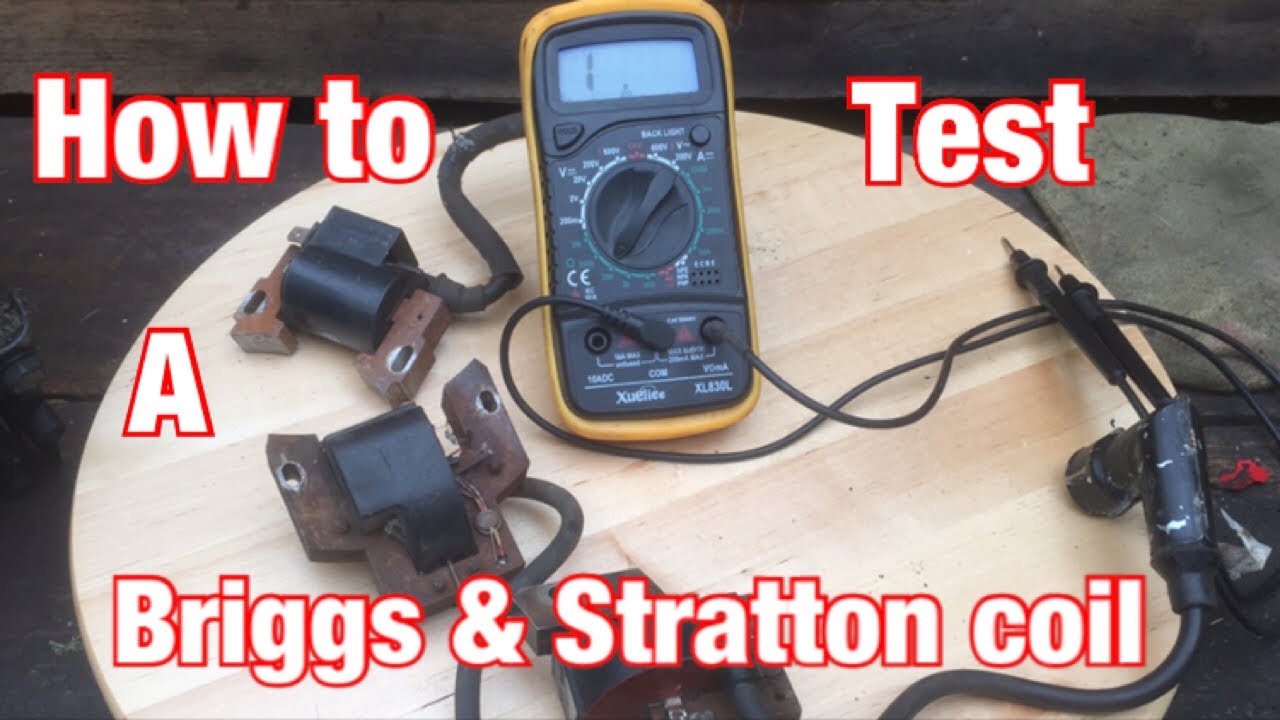

How to test coil on lawn mower with multimeter?

Testing the coil on a lawn mower with a multimeter is a relatively straightforward process that can help you diagnose issues with your mower's ignition system. Before starting, ensure you have a basic understanding of how to use a multimeter and follow safety precautions to avoid electrical shocks.

Preparation and Safety Precautions

To test the coil, you'll need to set your multimeter to the ohms (Ω) setting, which measures resistance. Make sure the lawn mower is turned off and the spark plug wire is disconnected from the spark plug. It's also a good idea to consult your lawn mower's manual to locate the coil and understand its specific configuration.

The steps to test the coil are as follows:
* Locate the coil and identify its terminals. Typically, the coil has two terminals where the spark plug wire and the ignition module connect.
* Set your multimeter to the ohms (Ω) setting and touch the leads to the coil's terminals. You may need to consult your multimeter's manual for specific instructions on how to set it to the ohms setting.
* Take note of the resistance reading on the multimeter display. A good coil typically shows a low resistance reading, usually between 0.5 and 5 ohms, but this can vary depending on the mower's make and model.

Interpreting the Results: If the multimeter shows a very high resistance reading (or an open circuit), it could indicate a faulty coil that needs replacement. On the other hand, if the reading is zero or very close to it, the coil might be shorted and also require replacement. If your reading falls within the specified range for your particular mower, the coil is likely functioning correctly. However, if you're still unsure about the results or the mower's performance, it's best to consult a professional for further diagnosis.

What is the easiest way to check an ignition coil?

The easiest way to check an ignition coil involves a series of straightforward tests that can help you determine if the coil is functioning properly. Visual Inspection is the first step, where you look for any signs of physical damage, such as cracks, wear, or corrosion on the coil and its connections. Make sure the coil is properly seated and that the spark plug wires are securely attached.

Using a Multimeter for Resistance Testing

To perform a more in-depth check, you'll need a multimeter. This tool allows you to measure the resistance of the ignition coil, which can indicate if it's within the manufacturer's specified range. Here's how to do it:
- Set your multimeter to the ohms (Ω) setting.
- Connect the multimeter leads to the coil's terminals (usually the positive and negative terminals).
- Take note of the resistance reading and compare it to the specifications provided by the manufacturer.

Another method to check an ignition coil is by using a Spark Tester. A spark tester is a simple tool that allows you to check for spark directly from the coil. To use it:
- Locate the ignition coil and the spark plug wire.
- Connect the spark tester in line with the spark plug wire.
- Crank the engine and observe if the tester lights up or produces a spark.

If you don't have access to specialized tools, a basic spark test can still provide valuable information. This involves removing a spark plug, reconnecting it to its spark plug wire, and grounding it against the engine block. When you crank the engine, a healthy ignition coil should produce a strong, blue spark. A weak or absent spark could indicate a problem with the ignition coil.

How do you diagnose a bad ignition coil?

Diagnosing a bad ignition coil can be a challenging task, but there are several signs and tests that can help you determine if it's faulty. A faulty ignition coil can cause a range of problems, including misfires, rough engine performance, and decreased fuel efficiency.

Common Symptoms of a Bad Ignition Coil

Some common symptoms of a bad ignition coil include:
* Engine misfires: A faulty ignition coil can cause one or more cylinders to misfire, leading to a rough engine performance.
* Difficulty starting the engine: A weak or faulty ignition coil can make it difficult to start the engine, especially when it's cold.
* Check Engine Light: A faulty ignition coil can trigger the Check Engine Light to come on, with error codes such as P0300-P0399.

To diagnose a bad ignition coil, you can perform a series of tests. The most common test is a spark test, which involves using a spark tester to check for spark at the coil pack or spark plug. You can also use a multimeter to test the coil's resistance and voltage output. Additionally, you can perform a swap test, where you swap the suspected faulty coil with a known good coil from another cylinder. If the problem moves to the swapped coil, it's likely that the original coil was faulty.

Using a Multimeter to Diagnose a Bad Ignition Coil

When using a multimeter to diagnose a bad ignition coil, you should follow these steps:
* Set the multimeter to the ohms setting to test the coil's resistance.
* Consult your repair manual for the recommended resistance values for your specific ignition coil.
* Use the multimeter to test the coil's primary and secondary resistance.
* Compare the test results to the recommended values to determine if the coil is faulty.
