“John Deere 100 Series Deck Height Lever Diagram Guide”

How to adjust mower deck height on John Deere?

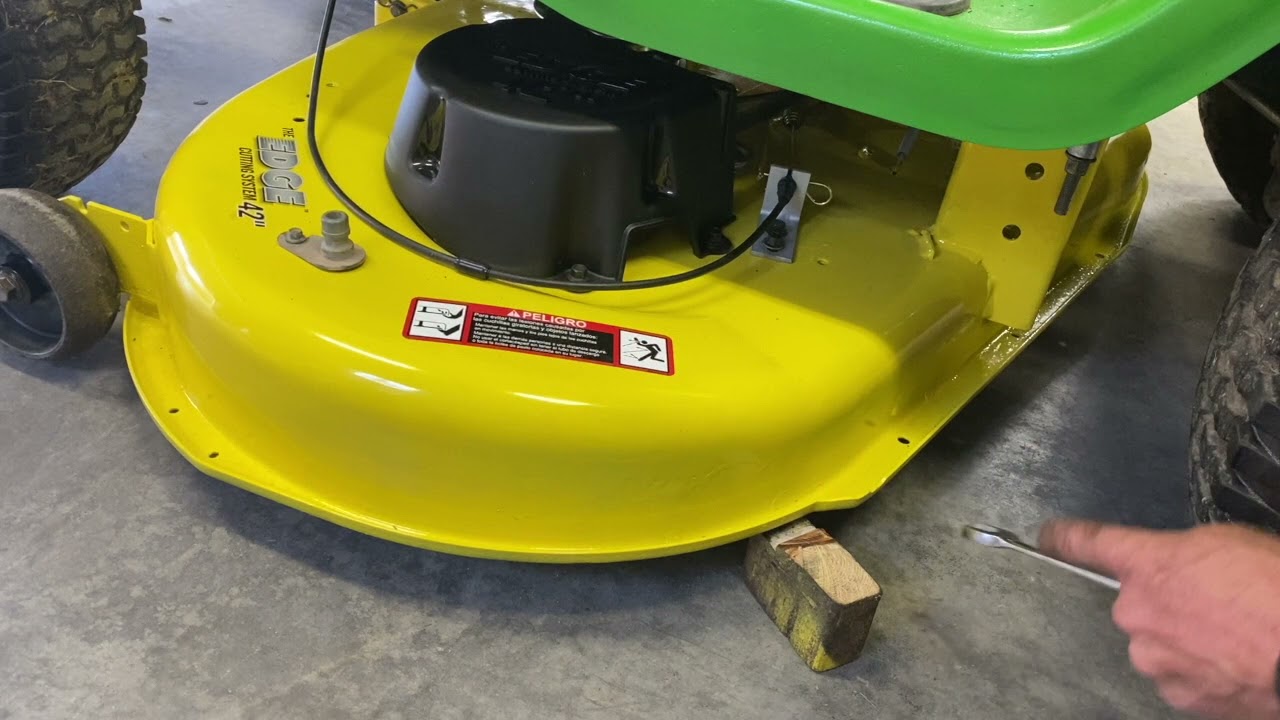

Adjusting the mower deck height on a John Deere lawn tractor or zero-turn mower is a straightforward process that ensures an even cut and promotes healthy lawn growth. To begin, locate the mower deck height adjustment mechanism, which is typically found on the mower deck itself or on the tractor’s steering column.

Preparation and Location

Before making any adjustments, ensure the tractor is parked on a level surface and the engine is turned off. The mower deck height adjustment mechanism may vary depending on the John Deere model, but it often involves a lever, knob, or a series of holes and a pin.

Steps to Adjust Mower Deck Height:

• Locate the adjustment mechanism.
• Disengage the mower deck and ensure it’s in a stable position.
• Use the lever, knob, or pin to adjust the deck to the desired height. The height is usually measured in inches and can range from 2.5 to 4 inches for most residential lawns.
• Verify the deck is level from front to rear and side to side.

For precise adjustments and to ensure the mower deck is properly leveled, consult the owner’s manual specific to your John Deere model. The manual will provide detailed instructions and specifications for adjusting the mower deck height. Additionally, John Deere recommends checking and adjusting the mower deck height regularly to maintain optimal performance and to prevent uneven cutting.

How many horsepower is a John Deere 100 series?

The John Deere 100 Series is a line of lawn tractors that are known for their reliability, ease of use, and versatility. One of the key factors to consider when choosing a lawn tractor is the horsepower of the engine. The horsepower of a John Deere 100 Series varies depending on the specific model.

Engine Options and Horsepower

The John Deere 100 Series lawn tractors come with different engine options, which affect the horsepower. The series includes models with 17.5 to 24 horsepower engines. Here are some of the engine options and their corresponding horsepower:

• John Deere D110: 19 horsepower
• John Deere D120: 20 horsepower
• John Deere D130: 22 horsepower
• John Deere D140: 24 horsepower

Factors Affecting Horsepower

It’s essential to note that the horsepower of a John Deere 100 Series lawn tractor can also be affected by the specific configuration and any upgrades or modifications made. However, the horsepower ranges mentioned above are the standard ratings for each model. When choosing a lawn tractor, consider the size of your lawn, the type of terrain, and the tasks you need to perform.

Horsepower and Performance

The horsepower of a John Deere 100 Series lawn tractor determines its performance and capability. A higher horsepower engine can handle more demanding tasks, such as cutting thick grass or towing attachments. On the other hand, a lower horsepower engine may be sufficient for smaller lawns and lighter tasks. Understanding the horsepower of a John Deere 100 Series can help you make an informed decision when selecting a lawn tractor that meets your needs.

Why won't my mower deck engage John Deere?

If your John Deere mower deck won’t engage, there are several potential causes to investigate. One possible reason is a faulty or worn-out deck belt. Over time, the belt can become damaged, cracked, or broken, preventing the deck from engaging properly. Inspect the belt for any signs of wear or damage and replace it if necessary.

Troubleshooting the PTO and Clutch

Another possible cause is a problem with the Power Take-Off (PTO) or clutch system. The PTO is responsible for transferring power from the engine to the mower deck, while the clutch engages and disengages the PTO. If the PTO or clutch is faulty, the deck may not engage. Check the PTO and clutch for any signs of wear or damage, and make sure they are properly adjusted.

Some other potential causes of a non-engaging mower deck on a John Deere include:

• Low mower deck engagement switch: Check the switch for proper function and make sure it’s not damaged.
• Faulty mower deck solenoid: The solenoid is responsible for engaging the deck; if it’s faulty, the deck may not engage.
• Clogged or blocked mower deck: Debris or blockages in the deck can prevent it from engaging; check the deck for any obstructions.

If you’ve checked all of these potential causes and the problem persists, it’s possible that there’s a more complex issue at play. You may want to consult a John Deere repair manual or contact a professional small engine repair technician for further assistance.

How often should I change the oil on my John Deere S100?

The recommended oil change interval for your John Deere S100 lawn tractor depends on several factors, including the type of oil used, operating conditions, and the age of the engine. Typically, John Deere recommends changing the oil in your S100 every 50 hours of use or at least once a year, whichever comes first.

Factors Affecting Oil Change Interval

Some factors may require you to change the oil more frequently. For example, if you operate your S100 in extreme temperatures, dusty conditions, or under heavy loads, you may need to change the oil every 25-30 hours of use. Additionally, if you notice any signs of oil degradation, such as a decrease in oil level, increased engine noise, or oil leaks, you should change the oil as soon as possible.

Oil Change Recommendations:

• Use a high-quality oil that meets John Deere’s specifications
• Check the oil level regularly to ensure it’s at the recommended level
• Consider using synthetic oil for improved engine performance and protection

It’s also important to consult your John Deere S100 owner’s manual for specific oil change recommendations, as the manufacturer may have specific requirements for your tractor. By following these guidelines, you can help extend the life of your engine and ensure it runs smoothly and efficiently.
