Comprehensive Guide: Moment of Inertia Formula for I-Beams

Introduction to Moment of Inertia

The moment of inertia, often denoted by (I), is a fundamental property in structural engineering and mechanics. It quantifies an object's resistance to angular acceleration about an axis. For I-beams, which are prevalent in construction due to their high strength-to-weight ratio, understanding the moment of inertia is crucial for predicting how these beams will behave under various loads.

Understanding I-Beams

An I-beam, also known as an H-beam or universal beam, is a beam with an cross-section resembling the capital letter "I". This shape provides significant strength and stiffness with less material, making it ideal for use in building frameworks and bridges.

Components of an I-Beam

• Flanges: The top and bottom horizontal parts of the beam.
• Web: The vertical section connecting the flanges.

Importance of Moment of Inertia in Structural Engineering

The moment of inertia is a critical factor in determining the bending resistance of a beam. It influences how a beam will deform under load, impacting both the deflection and stability of structures. Engineers use this property to ensure that beams can support anticipated loads without excessive bending or failure.

Factors Affecting Moment of Inertia

• Geometry: The shape and size of the beam's cross-section.
• Material: The distribution of material within the cross-section.

Calculating Moment of Inertia for I-Beams

Calculating the moment of inertia for an I-beam involves considering its unique geometry. The formula varies depending on the axis about which the moment of inertia is calculated. Typically, engineers calculate it about the neutral axis, which is the axis that passes through the centroid of the cross-section.

Formula for Moment of Inertia about the Neutral Axis

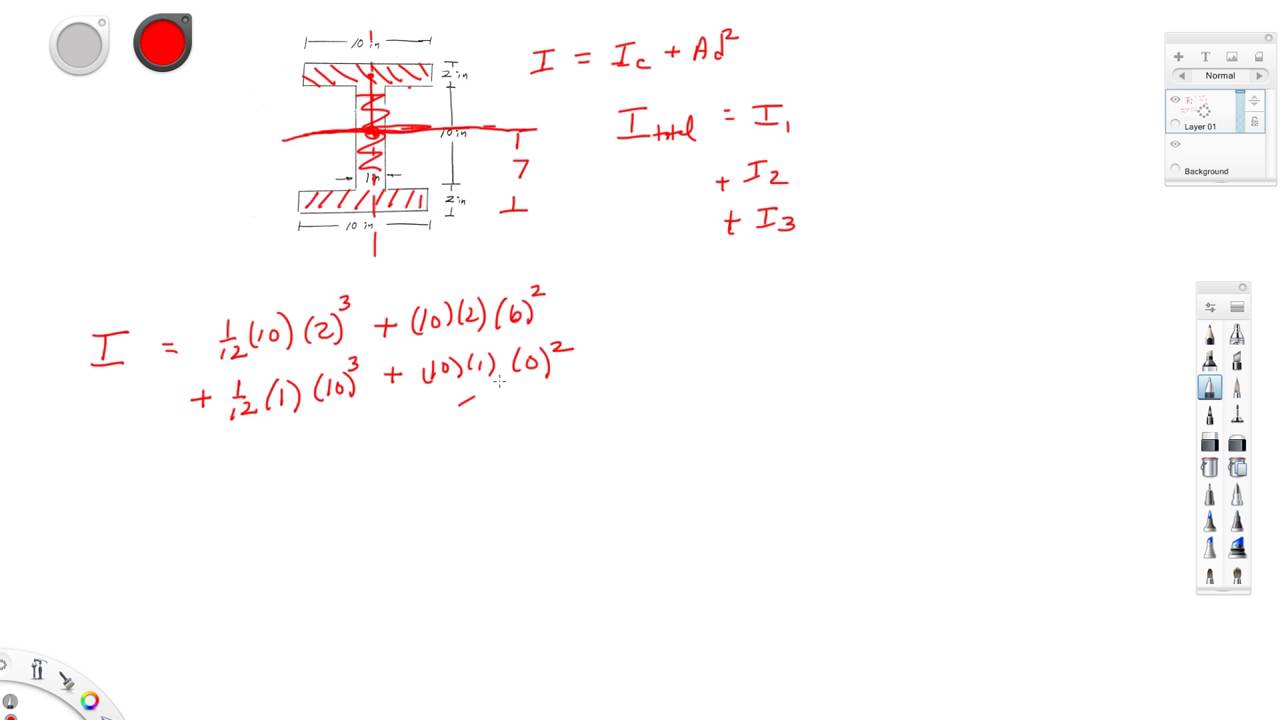

The moment of inertia (I) for an I-beam about its neutral axis can be calculated using the following formula:

(I = frac{1}{12} b_f h_f^3 + A_f d_f^2 + frac{1}{12} b_w h_w^3)

• (b_f): Width of the flange.
• (h_f): Thickness of the flange.
• (A_f): Area of the flange.
• (d_f): Distance from the centroid of the flange to the neutral axis.
• (b_w): Width of the web.
• (h_w): Height of the web.

Step-by-Step Calculation

1. Determine the dimensions of the flanges and web.
2. Calculate the area of each flange and the web.
3. Find the centroid of the cross-section to locate the neutral axis.
4. Apply the formula to compute the moment of inertia.

Applications of Moment of Inertia in Design

The moment of inertia is used in various applications, including the design of bridges, buildings, and machinery. It helps engineers determine the load-bearing capacity and deflection limits of beams.

Design Considerations

• Load Analysis: Understanding the types and magnitudes of loads the beam will encounter.
• Material Selection: Choosing materials that provide the necessary strength and stiffness.
• Safety Factors: Incorporating safety margins to account for uncertainties in loading and material properties.

Advanced Topics in Moment of Inertia

Beyond basic calculations, advanced topics in moment of inertia include composite beams, variable cross-sections, and dynamic loading. These areas require more complex analysis and often involve numerical methods and computer simulations.

Composite Beams

Composite beams consist of two or more materials with different properties. Calculating the moment of inertia for these beams involves considering the modular ratio and the transformed section method.

Variable Cross-Sections

Beams with variable cross-sections, such as tapered beams, require integration to determine the moment of inertia. This involves dividing the beam into infinitesimal sections and summing their contributions.

Dynamic Loading

Under dynamic loading, the moment of inertia must account for time-varying forces and vibrations. This often involves using the mass moment of inertia and analyzing the beam's natural frequencies.

Conclusion

The moment of inertia is a vital concept in structural engineering, providing insights into the stability and performance of I-beams. By understanding and calculating this property, engineers can design structures that are both efficient and safe.

Further Reading

• Structural Analysis and Design by R.C. Hibbeler
• Strength of Materials by R.K. Bansal
• Advanced Mechanics of Materials by Arthur P. Boresi and Richard J. Schmidt
