Mastering the Moment of Inertia for Cantilever Beams: Essential Guide

The moment of inertia is a fundamental concept in structural engineering, particularly when dealing with cantilever beams. Understanding and mastering this concept is crucial for designing structures that are both efficient and safe. This guide delves into the intricacies of the moment of inertia for cantilever beams, exploring its significance, calculation methods, and practical applications.

Understanding the Basics of Moment of Inertia

The moment of inertia (often denoted as (I)) is a measure of an object's resistance to changes in its rotation about an axis. For cantilever beams, it plays a pivotal role in determining how the beam will behave under various loads. The moment of inertia depends on the shape and size of the beam's cross-section and the axis about which it is calculated.

Significance in Structural Engineering

In structural engineering, the moment of inertia is crucial for predicting the deflection and stresses in beams. A higher moment of inertia indicates greater resistance to bending, which is essential for ensuring that beams can support the loads they are subjected to without excessive deformation.

Mathematical Representation

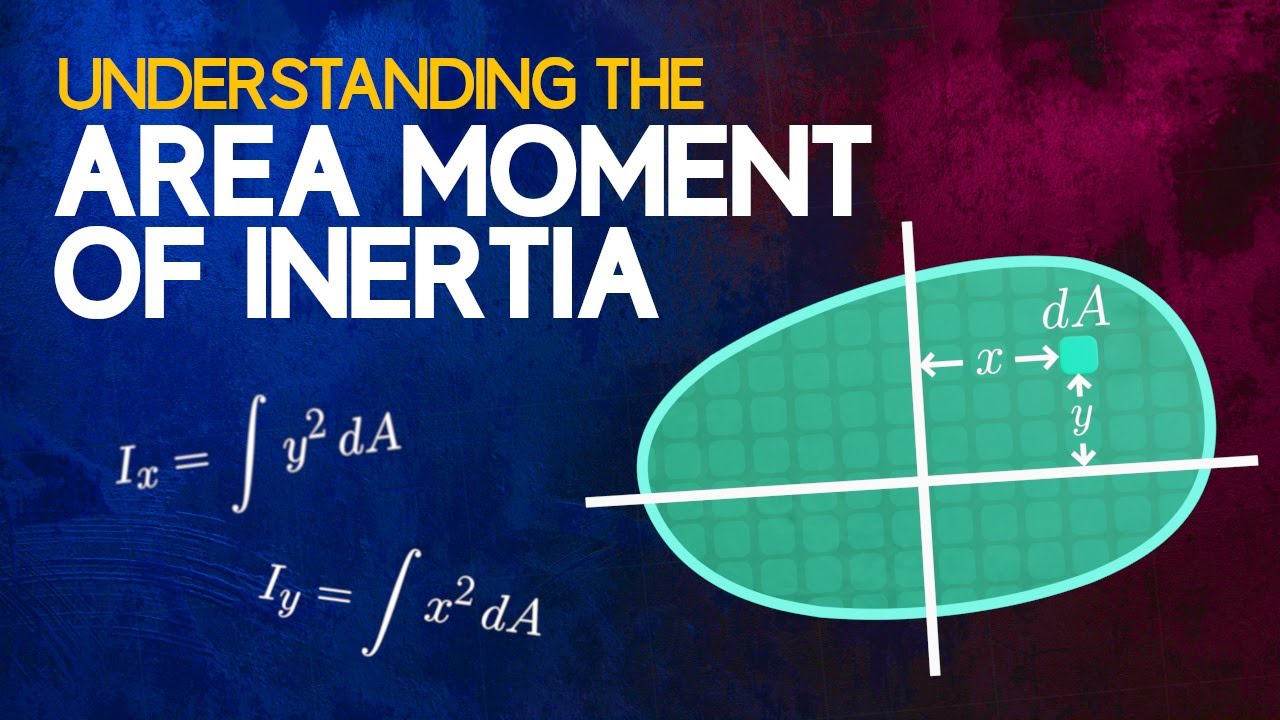

The moment of inertia for a given cross-section is mathematically represented as:

[
I = int y^2 , dA
]

where (y) is the distance from the axis to the differential area (dA). This integral sums up the contributions of all infinitesimal areas in the cross-section, weighted by the square of their distance from the axis.

Calculating the Moment of Inertia for Cantilever Beams

Calculating the moment of inertia for cantilever beams involves understanding the geometry of the beam's cross-section. Common shapes include rectangular, circular, and I-beams, each with its own formula for the moment of inertia.

Rectangular Cross-Section

For a rectangular cross-section, the moment of inertia about the centroidal axis is given by:

[
I = frac{b h^3}{12}
]

where (b) is the width and (h) is the height of the rectangle. This formula highlights the cubic relationship between the height and the moment of inertia, emphasizing the importance of beam height in structural design.

Circular Cross-Section

For a circular cross-section, the moment of inertia about the centroidal axis is:

[
I = frac{pi r^4}{4}
]

where (r) is the radius of the circle. Circular cross-sections are often used in applications where uniform strength in all directions is required.

I-Beam Cross-Section

I-beams, or H-beams, are commonly used in construction due to their high moment of inertia relative to their weight. The moment of inertia for an I-beam is calculated by considering the contributions of the flanges and the web separately and then summing them up.

The formula for an I-beam's moment of inertia is more complex and typically involves:

• Calculating the moment of inertia of each flange about its own centroidal axis.
• Using the parallel axis theorem to shift these moments to the centroidal axis of the entire section.
• Adding the moment of inertia of the web about the centroidal axis.

Applications of Moment of Inertia in Cantilever Beams

The moment of inertia is not just a theoretical concept; it has practical applications in the design and analysis of cantilever beams. Engineers use it to ensure that beams can withstand applied loads without excessive deflection or failure.

Deflection Analysis

Deflection is a critical factor in beam design. The moment of inertia directly influences the deflection of a beam under load. The relationship is given by the formula:

[
delta = frac{F L^3}{3 E I}
]

where (delta) is the deflection, (F) is the applied force, (L) is the length of the beam, (E) is the modulus of elasticity, and (I) is the moment of inertia. This formula shows that increasing the moment of inertia reduces deflection, highlighting its importance in design.

Stress Analysis

The moment of inertia also affects the bending stress in a beam. The bending stress (sigma) is given by:

[
sigma = frac{M y}{I}
]

where (M) is the bending moment, (y) is the distance from the neutral axis, and (I) is the moment of inertia. A higher moment of inertia reduces the bending stress for a given bending moment, which is crucial for preventing structural failure.

Advanced Topics in Moment of Inertia for Cantilever Beams

Beyond basic calculations and applications, there are advanced topics in the moment of inertia that are essential for complex structural designs.

Composite Beams

Composite beams, made from two or more different materials, require a more sophisticated approach to calculating the moment of inertia. Engineers must consider the properties of each material and their distribution within the beam. The transformed section method is often used, where the different materials are converted into an equivalent section of a single material.

Variable Cross-Sections

In some designs, beams have variable cross-sections along their length. Calculating the moment of inertia for such beams involves integrating the moment of inertia along the length of the beam, taking into account the changing geometry.

The differential moment of inertia (dI) for a small segment of the beam is given by:

[
dI = I(x) , dx
]

where (I(x)) is the moment of inertia at a particular point (x) along the beam. The total moment of inertia is then the integral of (dI) over the length of the beam.

Dynamic Loading

Under dynamic loading, such as in seismic or wind conditions, the moment of inertia plays a role in the beam's natural frequency and vibration characteristics. Engineers must ensure that the beam's design accounts for these dynamic effects to prevent resonance and potential failure.

Practical Considerations in Design

When designing cantilever beams, engineers must consider several practical factors related to the moment of inertia.

Material Selection

The choice of material affects the moment of inertia and the overall performance of the beam. Materials with higher strength-to-weight ratios, such as steel and certain composites, are often preferred for their ability to provide high moments of inertia without excessive weight.

Manufacturing Constraints

Manufacturing processes can impose constraints on the achievable moment of inertia. For example, the thickness of materials and the precision of fabrication techniques can limit the design options. Engineers must work within these constraints to optimize the beam's performance.

Cost Considerations

Cost is always a consideration in engineering design. While increasing the moment of inertia can improve performance, it often comes at a higher cost. Engineers must balance the need for structural integrity with budgetary constraints, optimizing the design to achieve the best performance within the available budget.

Conclusion

The moment of inertia is a critical concept in the design and analysis of cantilever beams. By understanding its significance, accurately calculating it for various cross-sections, and applying it in practical design scenarios, engineers can create structures that are both efficient and safe. As technology advances, new materials and manufacturing techniques will continue to expand the possibilities for optimizing the moment of inertia in structural design.
