Comprehensive Guide to Calculating Moment of Inertia of a T Beam

The moment of inertia is a fundamental concept in structural engineering and mechanics, representing the distribution of an object's mass relative to an axis. For structural elements like beams, understanding and calculating the moment of inertia is crucial for assessing their ability to resist bending and deflection. This article provides a comprehensive guide to calculating the moment of inertia of a T beam, a common structural component used in construction.

Understanding the T Beam

A T beam is characterized by its cross-sectional shape, resembling the letter "T". It consists of a flange (the top horizontal section) and a web (the vertical section). T beams are often used in construction due to their efficient load-bearing capabilities and are typically found in concrete slabs supported by steel beams.

Importance of Moment of Inertia

The moment of inertia of a beam is a measure of its resistance to bending and deflection under load. It is a crucial parameter in structural analysis and design, influencing the beam's stiffness and strength. For a T beam, calculating the moment of inertia involves considering the geometry of both the flange and the web.

Basic Concepts

Axis of Rotation

The moment of inertia depends on the axis about which it is calculated. For beams, the most common axes are the centroidal axis (passing through the centroid of the cross-section) and the neutral axis (the axis about which the beam bends). The centroidal axis is often used for calculating the moment of inertia.

Parallel Axis Theorem

The parallel axis theorem is a useful tool for calculating the moment of inertia about any axis parallel to the centroidal axis. It states that the moment of inertia about a parallel axis is equal to the moment of inertia about the centroidal axis plus the product of the area and the square of the distance between the axes.

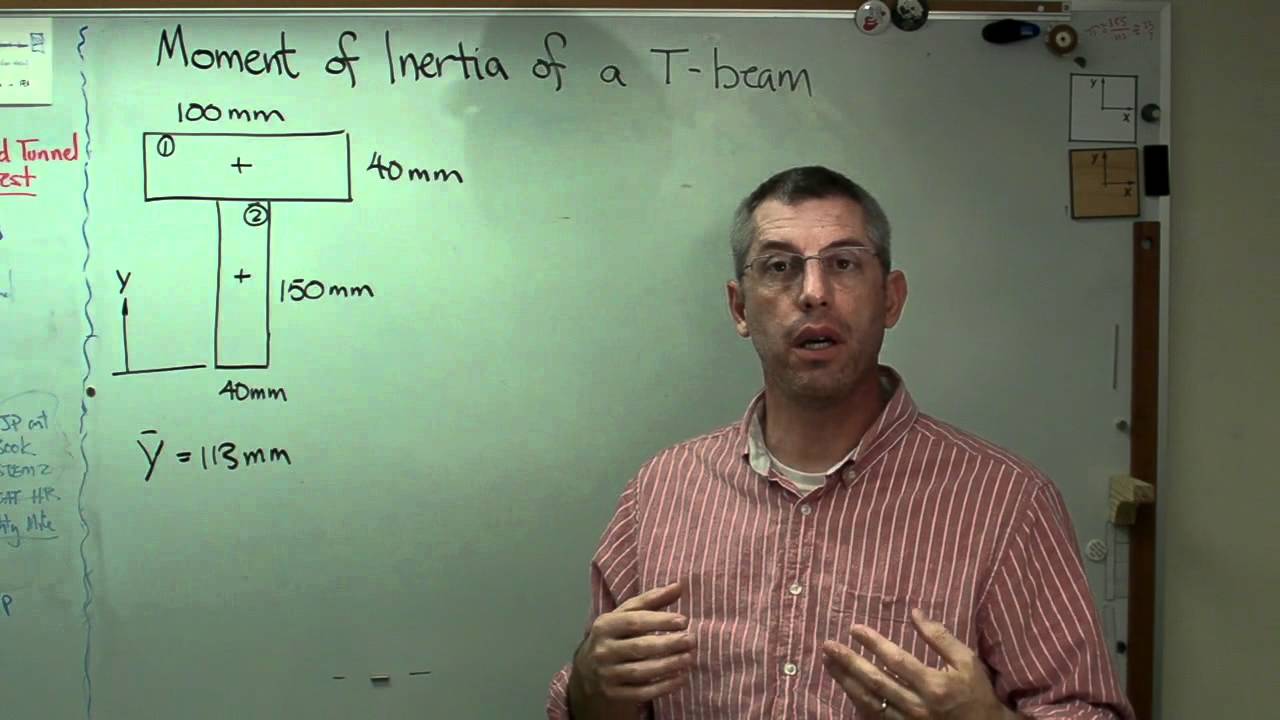

Calculating the Moment of Inertia of a T Beam

Calculating the moment of inertia of a T beam involves breaking down the cross-section into simpler shapes, calculating their individual moments of inertia, and then combining them. The process typically involves the following steps:

Step 1: Determine the Dimensions

Identify the dimensions of the T beam's flange and web. Let:

• b_f = width of the flange
• t_f = thickness of the flange
• b_w = width of the web
• t_w = thickness of the web

Step 2: Calculate the Area of Each Section

Calculate the area of the flange and web:

• A_f = b_f × t_f
• A_w = b_w × t_w

Step 3: Locate the Centroid

Determine the location of the centroid of the T beam's cross-section. This involves calculating the centroidal distance from the base of the web to the centroid of the entire section. Use the formula:

ȳ = (A_f × (t_w + t_f/2) + A_w × t_w/2) / (A_f + A_w)

Step 4: Calculate the Moment of Inertia of Each Section

Calculate the moment of inertia of the flange and web about their own centroidal axes:

• I_f = (b_f × t_f³) / 12
• I_w = (b_w × t_w³) / 12

Step 5: Apply the Parallel Axis Theorem

Use the parallel axis theorem to calculate the moment of inertia of each section about the centroidal axis of the T beam:

• I_{f, total} = I_f + A_f × (ȳ - (t_w + t_f/2))²
• I_{w, total} = I_w + A_w × (ȳ - t_w/2)²

Step 6: Sum the Moments of Inertia

The total moment of inertia of the T beam about its centroidal axis is the sum of the moments of inertia of the flange and web:

I_total = I_{f, total} + I_{w, total}

Applications of Moment of Inertia in Structural Design

The moment of inertia is a critical parameter in the design and analysis of structures. It influences the beam's ability to resist bending and deflection, impacting the overall stability and safety of the structure. Engineers use the moment of inertia to:

• Calculate deflection under load
• Determine bending stress
• Design beams for specific load conditions

Advanced Considerations

Material Properties

While the moment of inertia is a geometric property, the material properties of the beam also play a crucial role in its performance. The modulus of elasticity and yield strength of the material affect the beam's stiffness and load-bearing capacity.

Complex Cross-Sections

For more complex T beam cross-sections, such as those with varying flange and web thicknesses, the calculation of the moment of inertia may require numerical methods or software tools. Finite element analysis (FEA) is often used for such complex geometries.

Impact of Load Distribution

The distribution of loads on the beam affects its bending behavior. Uniformly distributed loads, point loads, and varying load distributions all influence the moment of inertia's role in the beam's response.

Conclusion

Calculating the moment of inertia of a T beam is a fundamental aspect of structural engineering. By understanding the geometry and applying the parallel axis theorem, engineers can accurately determine the beam's resistance to bending and deflection. This knowledge is essential for designing safe and efficient structures.
