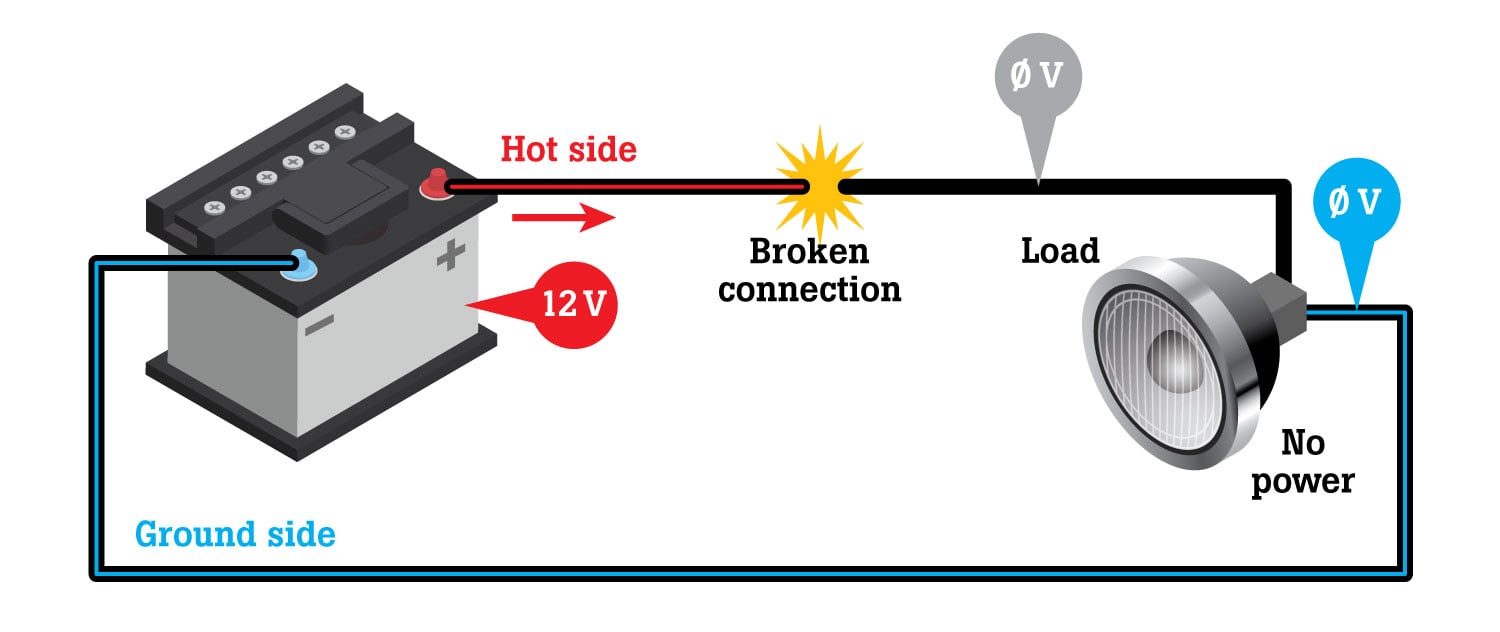

What causes low voltage in a 12V circuit?

Resistance and Ohmic Losses

Low voltage in a 12V circuit often stems from excessive resistance in components or wiring. Overly long wires, thin-gauge cables, or corroded connectors increase Ohmic losses, reducing the voltage reaching the load. For example, if a wire’s resistance is higher than specified, it drops voltage proportionally to the current flowing through it. Similarly, faulty switches or relays with internal corrosion or loose contacts can introduce unintended resistance, further lowering output voltage.

Malfunctioning Components

Faulty or degraded components directly contribute to voltage drops. A damaged voltage regulator may fail to maintain the required 12V output, while aging batteries lose their capacity over time, providing less voltage under load. Additionally, semiconductors like diodes or transistors with increased forward voltage due to wear can siphon off usable voltage. Even simple issues like loose terminal screws or oxidized battery posts can create high-resistance paths, reducing effective voltage.

Overloaded Circuits and Excessive Current Demand

When a circuit draws more current than its power source can supply, the resulting voltage sag occurs. For instance, connecting high-power devices to a low-capacity battery or under-rated power supply strains the system. This causes a drop in terminal voltage due to internal resistance in the power source, a phenomenon described by the equation V = IR. Overloading also generates heat, accelerating component degradation and compounding voltage loss over time.

What is the 12v test light used for?

Core Functionality in Electrical Diagnostics

A 12V test light is primarily used to detect the presence of voltage in low-voltage electrical systems, typically in automotive, marine, or industrial equipment. It helps technicians identify whether a circuit is “live” (carrying power) or has an open connection (no power). By touching the test light’s probe to a component or wire while the circuit is energized, the light glows if voltage is present. This makes it invaluable for diagnosing issues like dead batteries, faulty fuses, or malfunctioning circuits in systems operating at 12V, such as car engines, alternators, or lighting systems.

Key Applications in Troubleshooting

The tool is frequently used for three main tasks:

• Testing voltage presence: Ensuring power reaches critical components like starters, sensors, or ignition coils.
• Checking continuity: Identifying breaks in wires or connectors that could cause malfunctions, such as dimming headlights or inoperative accessories.
• Diagnosing ground issues: Locating poor grounding connections by testing between components and a known ground point.

This simplicity makes it a go-to tool for quick checks without requiring advanced equipment like multimeters.

Comparative Advantages Over Multimeters

While multimeters provide precise voltage readings, a 12V test light offers a faster, cost-effective alternative for basic diagnostics. It is ideal for confirming whether a circuit is energized, eliminating the need for complex settings. For example, in automotive repairs, it can quickly verify if a fuse is blown or a wire is disconnected by illuminating when voltage flows. It is also safer for beginners, as it does not require interpreting numerical data, making it accessible for troubleshooting alternator output, battery health, or accessory wiring.

Specific Use Cases in Electrical Systems

Beyond general diagnostics, the test light is used to:

• Verify battery charge by checking voltage output between terminals.
• Identify short circuits by isolating sections of a circuit to pinpoint where power flow is interrupted.
• Test charging system functionality by observing light brightness when the engine is running (indicating alternator performance).

Its compact design and straightforward operation make it essential for field repairs, maintenance checks, and verifying post-repair functionality in 12V setups.

What does it mean when voltage is too low?

Understanding Low Voltage Basics

Voltage is the electrical "pressure" that drives current through circuits. When voltage drops below the required level for a device or system, it is considered low voltage. This can occur due to issues like overloaded circuits, weak power sources, or resistance in wiring. Low voltage reduces the energy available to power devices, potentially causing malfunctions or reduced performance. For example, lights may dim, motors might run slower, or electronic devices could shut down unexpectedly.

Common Causes of Low Voltage

Several factors contribute to low voltage:

• Overloaded circuits: Too many devices drawing power from a single circuit strains the system, lowering voltage.
• Loose or corroded connections: Poor wiring connections increase resistance, reducing voltage delivery.
• Weak power supply: Faulty transformers, generators, or utility grid issues can fail to maintain adequate voltage levels.
• Long wiring runs: Extended electrical pathways lose voltage due to natural resistance in the wires.

Impact on Devices and Systems

Low voltage can lead to serious consequences:

• Reduced efficiency: Appliances like refrigerators or air conditioners may work harder to compensate, increasing energy consumption and wear.
• Equipment damage: Motors and electronics designed for specific voltage ranges might overheat or fail prematurely.
• Safety hazards: In extreme cases, low voltage can cause sparks, arcing, or fires due to increased resistance in circuits.

Solutions and Preventive Measures

Addressing low voltage requires identifying the root cause. Steps include:

• Checking circuit loads and redistributing devices to balance demand.
• Inspecting and tightening connections to ensure optimal conductivity.
• Upgrading wiring or using voltage regulators to stabilize power flow.
• Consulting a licensed electrician for persistent issues to avoid long-term damage.

How to check if a test light is working?

Visual Inspection and Basic Function Test

To determine if a test light is functional, start with a basic check. First, ensure the test light has a visible bulb or LED. Hold the insulated handle and touch the metal probe to both terminals of a known power source, such as a car battery (be cautious of polarity). If the bulb lights up or the LED glows, the test light is likely working. If not, inspect the bulb or LED for physical damage or burnout. For battery-operated models, replace the batteries and test again.

Using a Multimeter for Verification

A multimeter can confirm whether the test light conducts electricity. Set the multimeter to the “continuity” or “resistance” mode. Touch one probe to the test light’s metal tip and the other to its grounded part (e.g., the metal casing or handle). If the multimeter beeps or shows low resistance, the internal circuit is intact. If no response occurs, the test light’s wiring or contacts may be faulty.

Testing Against a Known Live Circuit

Attach the test light’s ground clip to a verified ground point (e.g., a vehicle’s chassis or engine block). Then, gently touch the probe to a live circuit, such as an accessory fuse or a known functioning wire. A properly working test light will illuminate when contacting live voltage. If it doesn’t light up, check for corrosion on the probes, loose internal connections, or a dead battery (if applicable).

Check for Physical Damage and Cleanliness

Inspect the test light for cracks, frayed wires, or loose components, which can disrupt functionality. Clean the probe tips with a cloth or fine sandpaper if they appear dirty or corroded. For inductive test lights, wave them near a live wire—the LED should activate if the device is functional. Always ensure the test light is disconnected from power sources when examining it.
