What Is an Ignition Coil and What Does It Do? Explained

What is an Ignition Coil? A Comprehensive Overview

An ignition coil is a crucial component of an internal combustion engine, responsible for converting the low voltage from the vehicles battery into the high voltage needed to ignite the air-fuel mixture in the engines cylinders. This process is essential for the engine to start and run efficiently. Typically, ignition coils are found in vehicles with gasoline engines, although they can also be used in some diesel engines.

How Ignition Coils Work
Ignition coils operate based on the principle of electromagnetic induction. They consist of two wire coils, known as the primary and secondary windings, wrapped around a ferromagnetic core. When the ignition system sends a current through the primary winding, it creates a magnetic field. When the current is interrupted, this magnetic field collapses, inducing a high voltage in the secondary winding. This high voltage is then sent to the spark plugs, igniting the fuel-air mixture.

Types of Ignition Coils
There are several types of ignition coils, including:

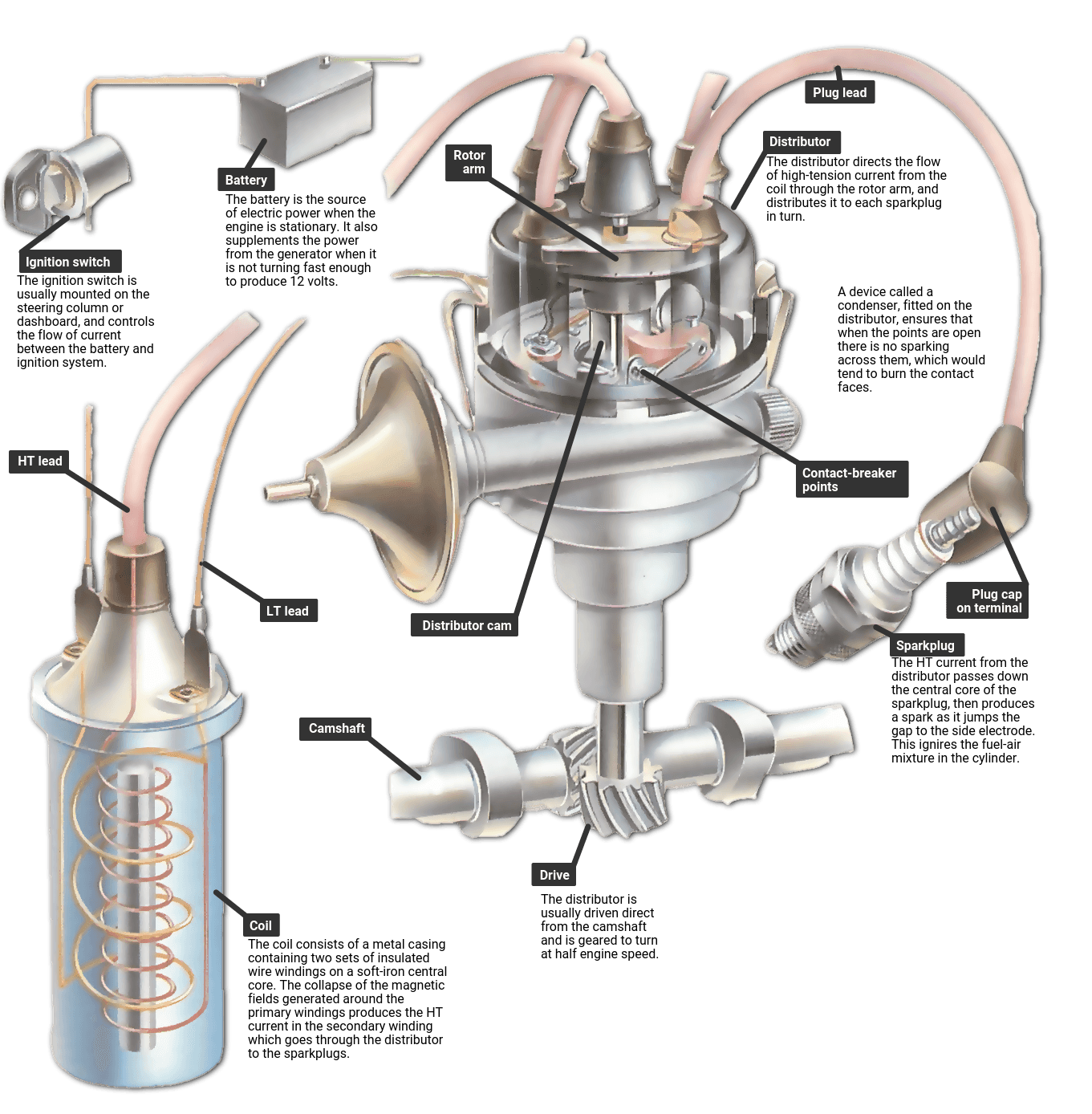

• Conventional Ignition Coils: These are typically used in older vehicles and require a distributor to direct the high voltage to the correct cylinder.
• Distributor-less Ignition System (DIS) Coils: These coils eliminate the need for a distributor by using multiple coils, allowing for more efficient ignition timing.
• Coil-on-Plug (COP) Coils: Common in modern vehicles, these coils are mounted directly on top of each spark plug, providing a more direct and efficient ignition.

Understanding the role of ignition coils is essential for vehicle maintenance and troubleshooting. Symptoms of a failing ignition coil may include engine misfires, reduced fuel efficiency, or difficulty starting the engine. Regular inspections and timely replacements can help ensure optimal engine performance and longevity.

The Function of an Ignition Coil: How It Powers Your Engine

The ignition coil plays a crucial role in the functioning of your vehicles engine by converting low voltage from the battery into the high voltage necessary to create a spark. This spark is essential for igniting the air-fuel mixture within the engines cylinders, leading to combustion. Without a properly functioning ignition coil, your engine would struggle to start or run smoothly.

How the Ignition Coil Works

An ignition coil operates on the principle of electromagnetic induction. It consists of two coils of wire: the primary coil and the secondary coil. When the ignition system is activated, current flows through the primary coil, generating a magnetic field. Once the current is interrupted, this magnetic field collapses, inducing a high voltage in the secondary coil. This high voltage is then sent to the spark plugs, creating the spark needed for ignition.

Types of Ignition Coils

There are several types of ignition coils, each designed for specific applications:

• Conventional Ignition Coils: These are commonly used in older vehicles and typically feature a single coil for multiple cylinders.
• Distributor-less Ignition System (DIS) Coils: Found in many modern vehicles, these coils eliminate the need for a distributor, providing more efficient ignition.
• Coil-on-Plug (COP) Systems: These coils are mounted directly on top of the spark plugs, allowing for improved efficiency and reduced emissions.

Understanding the function of the ignition coil is vital for diagnosing engine issues. A faulty ignition coil can lead to misfires, poor fuel economy, and increased emissions. Regular maintenance and timely replacement of this critical component ensure that your engine runs efficiently and reliably.

Types of Ignition Coils: Understanding the Different Variants

Ignition coils are crucial components in a vehicles ignition system, converting battery voltage into the high voltage needed to ignite the air-fuel mixture in the engine. There are several types of ignition coils, each designed to meet specific performance needs and engine configurations. Understanding these variants can help you make informed decisions regarding repairs or upgrades.

1. Conventional Ignition Coils
These are the traditional type of ignition coils, often referred to as "canister coils." They are typically used in older vehicles and operate on a simple principle of electromagnetic induction. Conventional ignition coils consist of two wire coils, the primary and secondary, which create a magnetic field that generates a high voltage when the circuit is interrupted. Although reliable, they are less efficient than modern alternatives.

2. Distributor-less Ignition Coils (DLI)
DLI systems utilize multiple ignition coils, usually one for each cylinder, eliminating the need for a distributor. This design allows for better timing and increased efficiency, as each coil can be precisely controlled. DLI coils can be further categorized into two types: coil-on-plug (COP) and wasted spark systems. COP systems place the coil directly on top of the spark plug, reducing energy loss and improving performance, while wasted spark systems use a single coil to fire two cylinders simultaneously.

3. Ignition Coil Packs
Ignition coil packs are a more compact and integrated solution that combines multiple ignition coils into a single unit. This design is commonly found in modern vehicles and helps streamline the ignition system. Coil packs are typically easier to install and replace, and they offer enhanced reliability and performance. They are often paired with advanced engine management systems for optimized ignition timing and fuel efficiency.

Understanding these different types of ignition coils can greatly assist in diagnosing ignition issues and making informed decisions regarding replacement or upgrades. Each variant has its unique benefits and applications, making it essential to choose the right one for your specific vehicle needs.

Common Symptoms of a Failing Ignition Coil: Signs to Watch For

A failing ignition coil can lead to a range of performance issues in your vehicle. Recognizing the common symptoms associated with a malfunctioning ignition coil is crucial for timely repairs and maintaining your cars efficiency. If you notice any of the following signs, it may be time to have your ignition coil checked.

1. Engine Misfires

One of the most prevalent symptoms of a failing ignition coil is engine misfiring. This occurs when the ignition coil fails to provide sufficient voltage to the spark plugs, causing them to misfire. You might experience a rough idle or feel the engine stutter while accelerating. Pay attention to any irregularities in engine performance, as they can indicate a deeper issue with the ignition system.

2. Decreased Fuel Efficiency

A malfunctioning ignition coil can lead to incomplete combustion of fuel, resulting in decreased fuel efficiency. If you find yourself filling up your gas tank more frequently without any significant changes in driving habits, a faulty ignition coil could be the culprit. This inefficiency not only affects your wallet but can also contribute to increased emissions.

3. Difficulty Starting the Engine

Another telltale sign of a failing ignition coil is difficulty starting your vehicle. If your engine cranks but doesn’t start, or if it takes multiple attempts to get it running, the ignition coil may not be providing the necessary spark. This issue can lead to frustration and can worsen over time, leading to more significant problems.

4. Check Engine Light

Finally, a glowing check engine light on your dashboard can indicate a problem with the ignition coil. Modern vehicles are equipped with diagnostic systems that monitor various components, including the ignition system. If the ignition coil is failing, the vehicles computer may trigger the check engine light to alert you of the issue. If this light appears, its essential to have your vehicle scanned for error codes to identify the problem accurately.

How to Replace an Ignition Coil: A Step-by-Step Guide

Replacing an ignition coil can seem daunting, but with the right tools and a little patience, you can successfully complete the task yourself. Ignition coils are vital components in your vehicles ignition system, responsible for transforming low battery voltage into the high voltage needed to ignite the fuel-air mixture in the engine. Here’s a step-by-step guide to help you through the process.

Step 1: Gather Your Tools and Materials
Before starting, make sure you have all the necessary tools on hand. You will need:

• A socket wrench set
• Torque wrench
• Screwdriver set
• Replacement ignition coil(s)
• Safety gloves and goggles

Step 2: Disconnect the Battery
Safety is paramount when working with electrical components. Begin by disconnecting the negative terminal of your vehicles battery to prevent any accidental electrical discharge. This step is crucial to ensure your safety and protect the vehicles electrical system.

Step 3: Locate and Remove the Old Ignition Coil
Next, locate the ignition coil(s). Depending on your vehicle model, they may be situated near the engine block or along the ignition system. Once located, carefully disconnect the wiring harness connected to the coil. Use your socket wrench to remove the bolts securing the ignition coil in place, then gently lift it out.

Step 4: Install the New Ignition Coil
Take the new ignition coil and place it in the same position as the old one. Secure it with the bolts you removed earlier, ensuring they are tightened to the manufacturers specifications using your torque wrench. Reconnect the wiring harness, making sure it clicks into place securely.

By following these steps, you can effectively replace your ignition coil and restore your vehicles performance. Remember to always refer to your vehicles service manual for specific instructions related to your model, as procedures may vary.
