Where is the Engine Coolant Sensor Located? Find It Easily!

Understanding the Role of the Engine Coolant Sensor

The engine coolant sensor, also known as the coolant temperature sensor (CTS), plays a critical role in maintaining optimal engine performance and efficiency. This sensor is responsible for monitoring the temperature of the engine coolant and providing real-time data to the engine control unit (ECU). The ECU uses this information to adjust various engine functions, such as fuel injection and ignition timing, ensuring that the engine operates within the ideal temperature range.

Key Functions of the Engine Coolant Sensor:

• Temperature Monitoring: The primary function of the engine coolant sensor is to accurately measure the temperature of the coolant, which is vital for engine performance.
• Fuel Efficiency: By providing temperature data to the ECU, the sensor helps optimize the air-fuel mixture, enhancing fuel efficiency and reducing emissions.
• Engine Protection: The sensor aids in preventing overheating by alerting the ECU to potential temperature issues, allowing for timely adjustments to engine operation.

When the engine coolant sensor malfunctions, it can lead to a range of issues, including poor fuel economy, increased emissions, and even engine overheating. Common symptoms of a faulty coolant sensor include erratic temperature gauge readings, poor engine performance, and the illumination of the check engine light. Addressing these issues promptly is essential to avoid more significant engine damage and costly repairs.

In modern vehicles, the engine coolant sensor is often integrated with other engine management systems, making it a vital component in the overall functionality of the engine. Regular maintenance and timely replacement of a faulty coolant sensor can significantly contribute to the longevity and efficiency of your vehicle, ensuring a smooth and reliable driving experience.

Where Is the Engine Coolant Sensor Located in Different Vehicle Models?

The location of the engine coolant sensor can vary significantly across different vehicle models and manufacturers. Understanding where to find this crucial component is essential for proper vehicle maintenance and troubleshooting. Typically, the engine coolant temperature sensor (ECT) is positioned in the engine block, cylinder head, or near the thermostat housing, depending on the design of the vehicle.

Common Locations by Vehicle Type

• Domestic Vehicles: In many domestic models, such as Ford and Chevrolet, the coolant sensor is often located near the thermostat housing or in the cylinder head. For instance, in a Ford F-150, it can usually be found at the front of the engine block, making it relatively accessible.
• Asian Imports: Vehicles like Honda and Toyota typically feature the coolant sensor located in the engine block or near the water pump. For example, in a Honda Accord, the sensor is often found on the engines cylinder head, making it easy to access for maintenance.
• European Cars: European brands such as BMW and Audi may have their coolant sensors located in less conventional spots. For instance, in a BMW 3 Series, the sensor is often placed in the engine block, which may require additional steps to reach due to engine layout complexity.

Checking Your Vehicles Manual

To accurately locate the engine coolant sensor in your specific vehicle model, it’s always advisable to refer to the owner’s manual or service guide. These resources often provide diagrams and detailed descriptions of component locations, making it easier to find the coolant sensor. Additionally, online forums and repair websites dedicated to your vehicle make and model can also offer valuable insights and tips from other car enthusiasts and professionals.

When attempting to locate and inspect the engine coolant sensor, ensure that the engine is cool and that you take necessary precautions to avoid any injuries. Proper identification of the sensors location will not only assist in maintenance but also in diagnosing potential overheating issues or coolant leaks effectively.

How to Access the Engine Coolant Sensor: A Step-by-Step Guide

Accessing the engine coolant sensor is essential for diagnosing cooling system issues and ensuring your vehicle runs smoothly. This step-by-step guide will walk you through the process, making it easier for you to locate and access this vital component.

Step 1: Gather Your Tools

Before you begin, ensure you have the necessary tools on hand. You will typically need:

• Socket set (including a ratchet and extensions)
• Screwdrivers (flathead and Phillips)
• Wrenches (for any bolts that may need loosening)
• Shop towels (for any spills or leaks)

Step 2: Prepare the Vehicle

Make sure the engine is cool before starting the procedure. Open the hood and locate the coolant reservoir, as this will help you identify the path to the engine coolant sensor. Disconnect the negative battery terminal to avoid any electrical issues while you work.

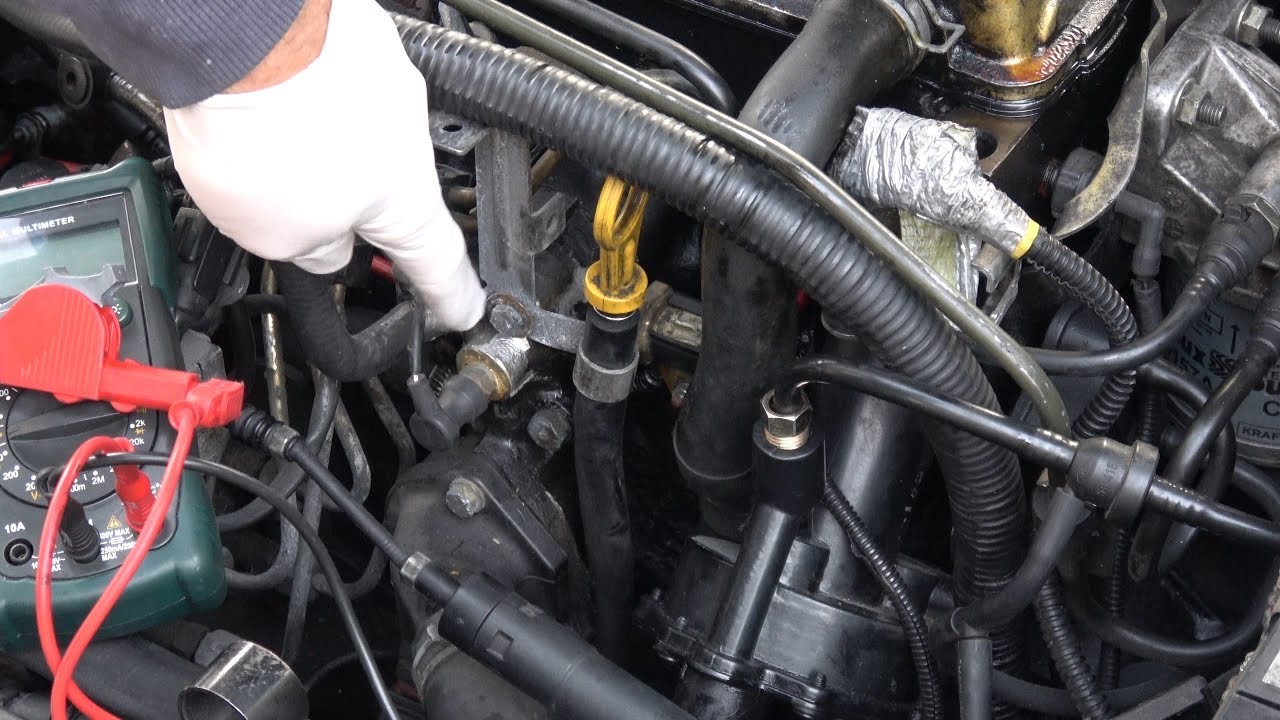

Step 3: Locate the Engine Coolant Sensor

The engine coolant sensor is typically situated near the thermostat housing or on the engine block. Look for a small cylindrical component with an electrical connector attached. Depending on your vehicle model, it may be necessary to remove other components, such as the air intake duct or hoses, to gain better access.

Step 4: Remove the Sensor

Once youve located the sensor, carefully disconnect the electrical connector by pressing the release tab and pulling it away. Use the appropriate socket to remove the sensor from its mounting location. Be cautious, as coolant may spill during this process. Have your shop towels ready to clean up any leaks. After removal, you can proceed to inspect or replace the sensor as needed.

Common Signs That Your Engine Coolant Sensor Needs Attention

When it comes to maintaining your vehicles engine health, the coolant sensor plays a crucial role. This small yet vital component monitors the temperature of the engine coolant, ensuring that your engine operates within optimal conditions. If your engine coolant sensor is malfunctioning, it can lead to overheating or underheating, which may cause severe engine damage. Here are some common signs that indicate your engine coolant sensor may need attention.

1. Fluctuating Temperature Gauge

One of the most noticeable signs of a faulty engine coolant sensor is a fluctuating temperature gauge on your dashboard. If you observe that the gauge moves erratically or suddenly spikes to high temperatures without reason, it may be time to inspect the coolant sensor. A properly functioning sensor should provide consistent readings, reflecting the true temperature of the engine coolant.

2. Overheating Engine

An overheating engine is a serious issue that can lead to catastrophic damage. If your vehicle frequently overheats, it could be a sign that the engine coolant sensor is failing to relay accurate information to the engine control unit (ECU). When the ECU doesnt receive the correct temperature readings, it may not trigger the cooling fans or other necessary actions, resulting in an overheating situation.

3. Check Engine Light Activation

The illumination of the check engine light can signal various issues, including problems with the engine coolant sensor. If this light appears on your dashboard, it’s essential to have your vehicle diagnosed. A malfunctioning coolant sensor may trigger error codes related to temperature readings, prompting the check engine light to activate. Ignoring this warning could lead to more severe engine problems.

4. Poor Fuel Efficiency

A failing engine coolant sensor can also negatively impact your vehicles fuel efficiency. If the sensor sends incorrect temperature readings to the ECU, it may cause the engine to run richer or leaner than necessary. This can lead to increased fuel consumption, resulting in higher costs at the pump. If you notice a sudden drop in fuel efficiency, it might be worth investigating the condition of your coolant sensor.

Recognizing these signs early can help you address potential issues before they escalate into costly repairs. Always consult a qualified mechanic if you suspect your engine coolant sensor is malfunctioning.

Tips for Replacing the Engine Coolant Sensor: Location and Procedure

Replacing the engine coolant sensor is a critical maintenance task that can help ensure your vehicle operates efficiently. The engine coolant sensor is typically located near the thermostat housing or on the engine block, depending on the make and model of your vehicle. To find the exact location, consult your vehicles service manual or look for a cylindrical component with an electrical connector. This sensor monitors the temperature of the coolant and sends data to the engine control unit (ECU), which helps regulate engine performance.

Before you begin the replacement process, gather the necessary tools, including a socket set, wrench, and possibly a screwdriver. It’s also advisable to have a container ready to catch any coolant that may spill during the removal process. Start by ensuring the engine is cool to avoid burns. Once you have located the sensor, disconnect the electrical connector by gently pulling it away from the sensor. Be cautious not to damage any wiring in the process.

Next, use the appropriate socket to unscrew the old sensor. As you remove it, be prepared for some coolant to escape. Once the old sensor is out, compare it with the new one to ensure compatibility. Apply a small amount of thread sealant to the threads of the new sensor before installation to prevent leaks. Carefully screw in the new sensor and tighten it to the manufacturer’s specifications to avoid overtightening, which can damage the sensor or the engine block.

Finally, reconnect the electrical connector to the new sensor and refill the coolant reservoir if necessary. Start the engine and allow it to reach operating temperature while checking for any leaks around the new sensor. Monitor the engine temperature gauge to ensure it operates within the normal range. By following these tips, you can effectively replace the engine coolant sensor and maintain your vehicle’s performance.
