Fuel Filter Direction: Which Way Does it Go?

Which way should the fuel filter go?

When it comes to installing a fuel filter, one of the most common questions is which way it should be oriented. The fuel filter is a critical component of a vehicle's fuel system, responsible for filtering out contaminants and debris from the fuel before it reaches the engine. Incorrect installation can lead to reduced engine performance, decreased fuel efficiency, and potentially even engine damage.

Understanding Fuel Filter Design

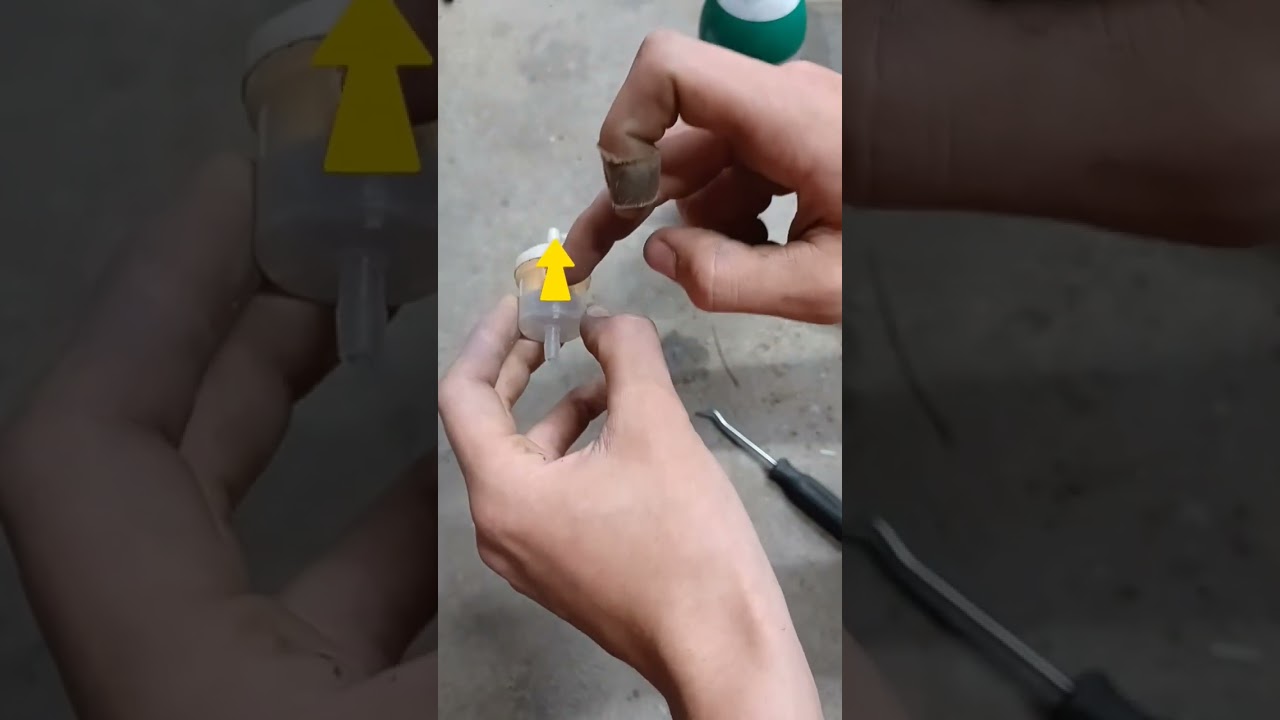

Most fuel filters have an arrow or a marking indicating the direction of fuel flow. This arrow typically points in the direction that the fuel flows through the filter, from the inlet to the outlet. The fuel filter should be installed with the arrow pointing in the direction of fuel flow, which is usually from the fuel tank to the engine.

Here are some key points to consider:

• The fuel filter should be installed with the inlet and outlet ports correctly aligned with the fuel lines.
• The arrow on the filter should point towards the engine, indicating the direction of fuel flow.
• Some fuel filters may have a specific "inlet" and "outlet" marking, make sure to follow the manufacturer's instructions.

It's essential to consult the vehicle's repair manual or the fuel filter manufacturer's instructions for specific guidance on installation. Additionally, if you're still unsure about the correct installation, consult with a professional mechanic or a qualified auto technician for assistance.

What happens when a fuel filter is installed backwards?

Installing a fuel filter backwards can have serious consequences for your vehicle's engine performance and longevity. When a fuel filter is installed in the reverse direction, the flow of fuel through the filter is restricted, causing a significant increase in pressure drop across the filter. This can lead to a range of problems, including reduced engine performance, decreased fuel efficiency, and potentially even engine damage.

Effects on Engine Performance

When a fuel filter is installed backwards, the engine may experience a range of performance issues, including:
* Reduced power output: The restricted fuel flow can cause the engine to struggle to produce power, leading to sluggish acceleration and poor overall performance.
* Rough engine idle: The restricted fuel flow can also cause the engine to idle roughly, leading to a vibrating or shaking sensation.
* Engine stalling: In severe cases, the restricted fuel flow can cause the engine to stall or even fail to start.

The restricted fuel flow caused by a backwards-installed fuel filter can also lead to increased wear and tear on engine components, including the fuel pump, fuel injectors, and engine cylinders. This can result in costly repairs down the line, making it essential to ensure that the fuel filter is installed correctly.

Fuel Filter Installation Best Practices should always be followed to avoid such issues. Always check the fuel filter for correct installation, and consult the vehicle owner's manual or a professional mechanic if you're unsure.

Which way does the arrow point on a fuel pump?

The direction of the arrow on a fuel pump is a crucial detail that often gets overlooked. The arrow on a fuel pump indicates the direction of fuel flow. It points in the direction that fuel is supposed to flow through the pump.

Understanding the significance of the arrow

The arrow on a fuel pump is typically located on the side of the pump or on the inlet and outlet ports. It serves as a visual indicator to ensure that the pump is installed correctly. When installing a fuel pump, it's essential to align the arrow with the direction of fuel flow to prevent damage to the pump and the fuel system.

Here are some key points to consider:

• The arrow points from the inlet to the outlet of the pump.
• Fuel flows into the pump through the inlet and out through the outlet.
• Incorrect installation can lead to reduced pump performance, increased wear, and potentially even pump failure.

When replacing a fuel pump, it's vital to note the direction of the arrow on the old pump and match it with the new one. Failure to do so can result in costly repairs and potentially leave you stranded. Always consult the repair manual or manufacturer's instructions for specific guidance on fuel pump installation and orientation.

Which way does the fuel filter go on a riding mower?

When it comes to installing a fuel filter on a riding mower, it's essential to get the direction right to ensure proper fuel flow and engine performance. The fuel filter is a critical component that prevents contaminants and debris from entering the engine, and incorrect installation can lead to poor engine performance, decreased fuel efficiency, and potentially even engine damage.

Understanding Fuel Filter Orientation

The fuel filter on a riding mower typically has an arrow or a marking indicating the direction of fuel flow. This arrow points in the direction that the fuel is supposed to flow through the filter. To install the fuel filter correctly, you need to align the arrow with the fuel flow direction, usually from the fuel tank to the engine.

Here are the general steps to follow:

• Locate the fuel filter, usually found in the fuel line between the fuel tank and the engine.
• Identify the arrow or marking on the filter indicating the fuel flow direction.
• Install the filter with the arrow pointing towards the engine, ensuring fuel flows from the tank, through the filter, and into the engine.

Key Considerations: Make sure to consult your riding mower's manual for specific instructions, as the fuel filter installation may vary depending on the make and model of your mower. Additionally, always handle fuel system components with care, as they can be sensitive to dirt and debris. When in doubt, consider consulting a professional small engine repair technician for assistance.
